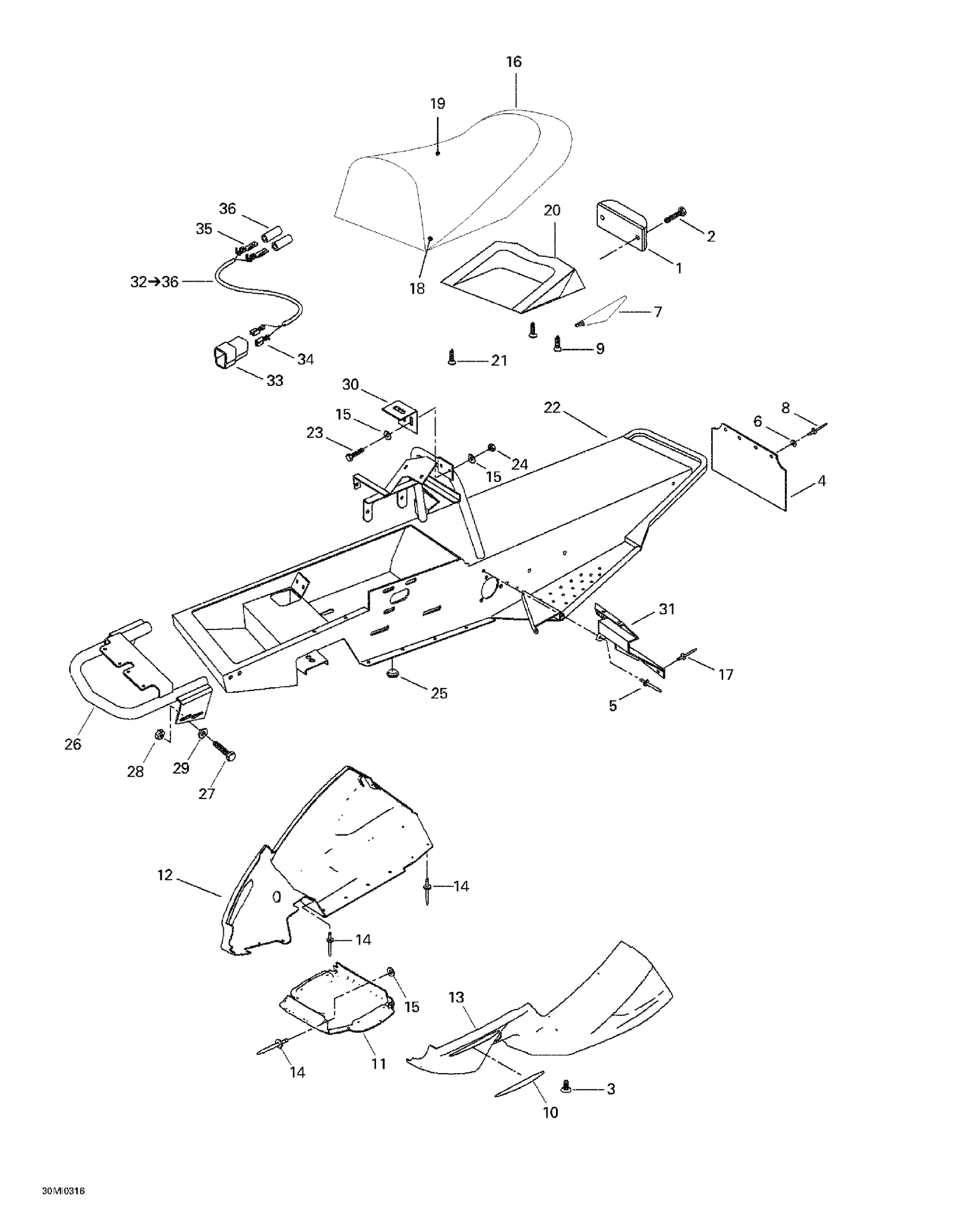

09- Frame And Body
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 415088700 | TAIL LAMP ASS'Y - Call your local BRP dealership |
| 2 | 209632540 | Phillips Tapping Screw M3.9 X 25 |
| 3 | 414644300 | Black, Dart |
| 4 | 572099800 | Snow Guard |
| 5 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 6 | 517225900 | Flat Washer This part replaces 414806800. |
| 7 | 520000237 | REAR REFLECTOR, RED - Call your local BRP dealership |
| 8 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 9 | Not | Available As Spare Part - Screw |
| 10 | 516001336 | FRONT REFLECTOR - Call your local BRP dealership |
| 11 | 502006660 | Nose (Yellow) |
| 12 | 502006661 | RH Bottom Pan (Yellow) |
| 13 | 502006662 | LH Bottom Pan (Yellow) |
| 14 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 15 | 234051410 | Flat Washer M5 |
| 16 | Not | Available As Spare Part - Seat Ass'y |
| 18 | 510004035 | FOAM SEAT - Call your local BRP dealership |
| 19 | 510004036 | Seat Cover |
| 20 | 510004169 | Seat Moulding |
| 21 | 369903000 | Screw |
| 22 | 518323446 | Frame Ass'y |
| 23 | 207151414 | Hex. Screw M5 x 14 |
| 24 | 232551414 | Elastic Stop Nut M5 |
| 25 | 414404800 | Plug |
| 26 | 518323466 | Bumper |
| 27 | 207162044 | Hex. Screw M6 X 20 |
| 28 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 29 | 224061201 | Flat Washer |
| 30 | 518321300 | Adjustable Plate |
| 31 | 518321950 | RH Footrest |
| 33 | 409204500 | MALE HOUSING - Call your local BRP dealership |
| 34 | 278001009 | Female Terminal |
| 35 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 518321952 | LH | Footrest 518321952 |
