Parts Catalog

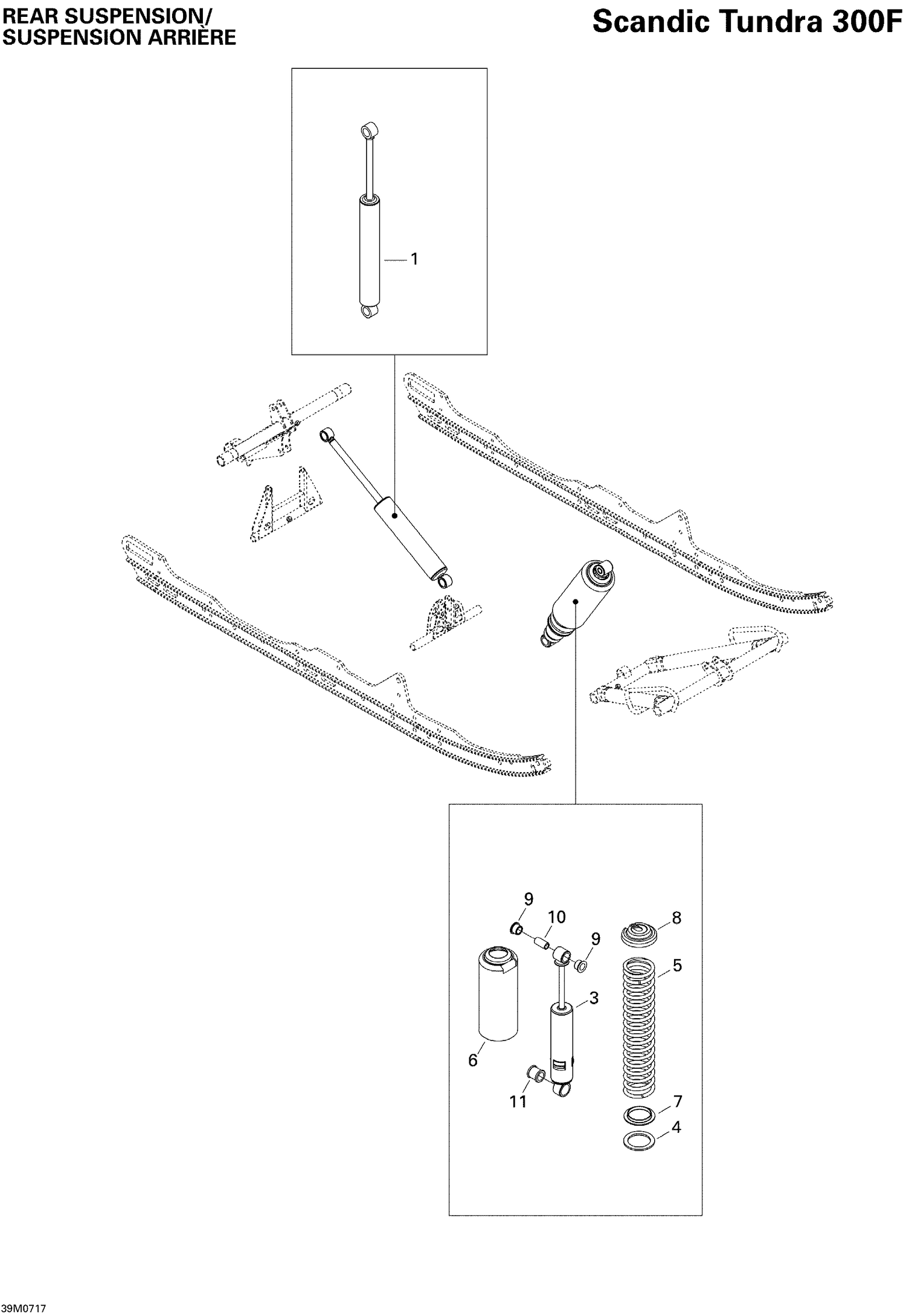

08- Rear Suspension Shocks

Parts (7)

Ref	Part Number	Description
3	503190746	CENTER SHOCK - Call your local BRP dealership
4	503184400	Washer
6	503193663	Protector This part replaces 503191126.
7	505071954	Spring Guide
8	706200881	Spring Stopper This part replaces 503140600.
9	503189117	Urethane Bushing
10	503189282	Bushing
