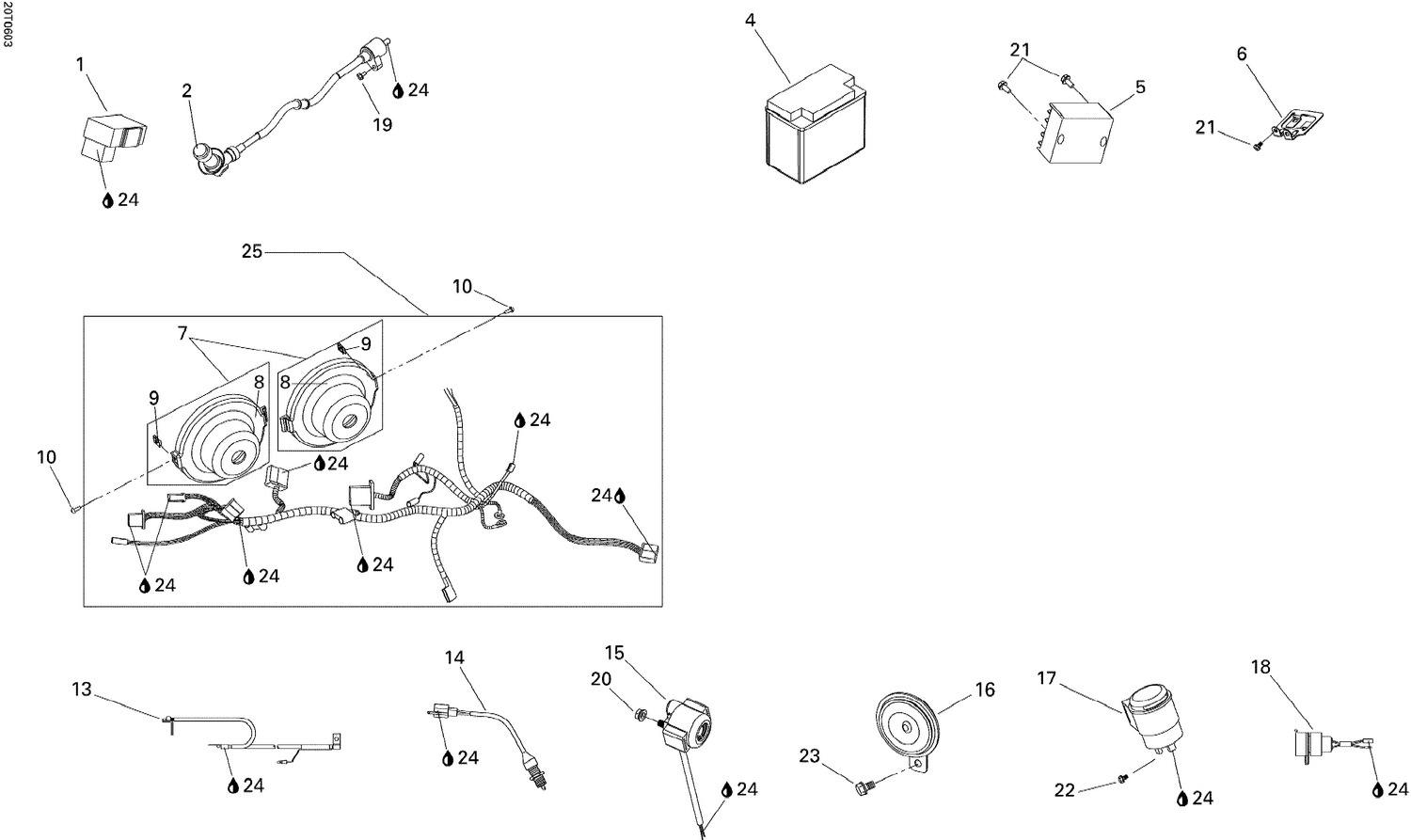

10- Electrical Components
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S30400RCA000 | CDI UNIT ASS'Y - Call your local BRP dealership |
| 2 | S3051ARB1000 | Ignition Coil |
| 4 | 715900031 | Battery 12 Amp |
| 5 | S31600RCA010 | Redresseur *Rectifier This part replaces S31600RCA000. |
| 6 | S31601RCA000 | Connector Bracket |
| 7 | S6310BRCA000 | Head Light Rear Cover Ass'y |
| 8 | NASP/NDPR | Not Available As Spare Parts |
| 9 | S90302V02000 | Clip Nut |
| 10 | S9390334380 | Tapping Screw M4 X 12 |
| 13 | S32412RB1000 | Ground Cable |
| 14 | S35350RCA000 | Rear Stop Switch Ass'y |
| 15 | S3585ARCA000 | Starter Solenoïd |
| 16 | S38110RCA000 | Horn |
| 17 | S38301RA1000 | Flasher Relay |
| 18 | S38600RA1000 | DC Power Outlet, 12 Volts |
| 19 | S90112GK8000 | Flange Bolt M5 X 22 |
| 20 | S9405006070 | Flanged Nut 6 mm |
| 21 | S958010601207 | Flanged Bolt M6 X 12 |
| 22 | S958010601607 | Flanged Bolt M6 X 16 |
| 23 | S958010801207 | Flanged Bolt M8 X 12 |
| 24 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
