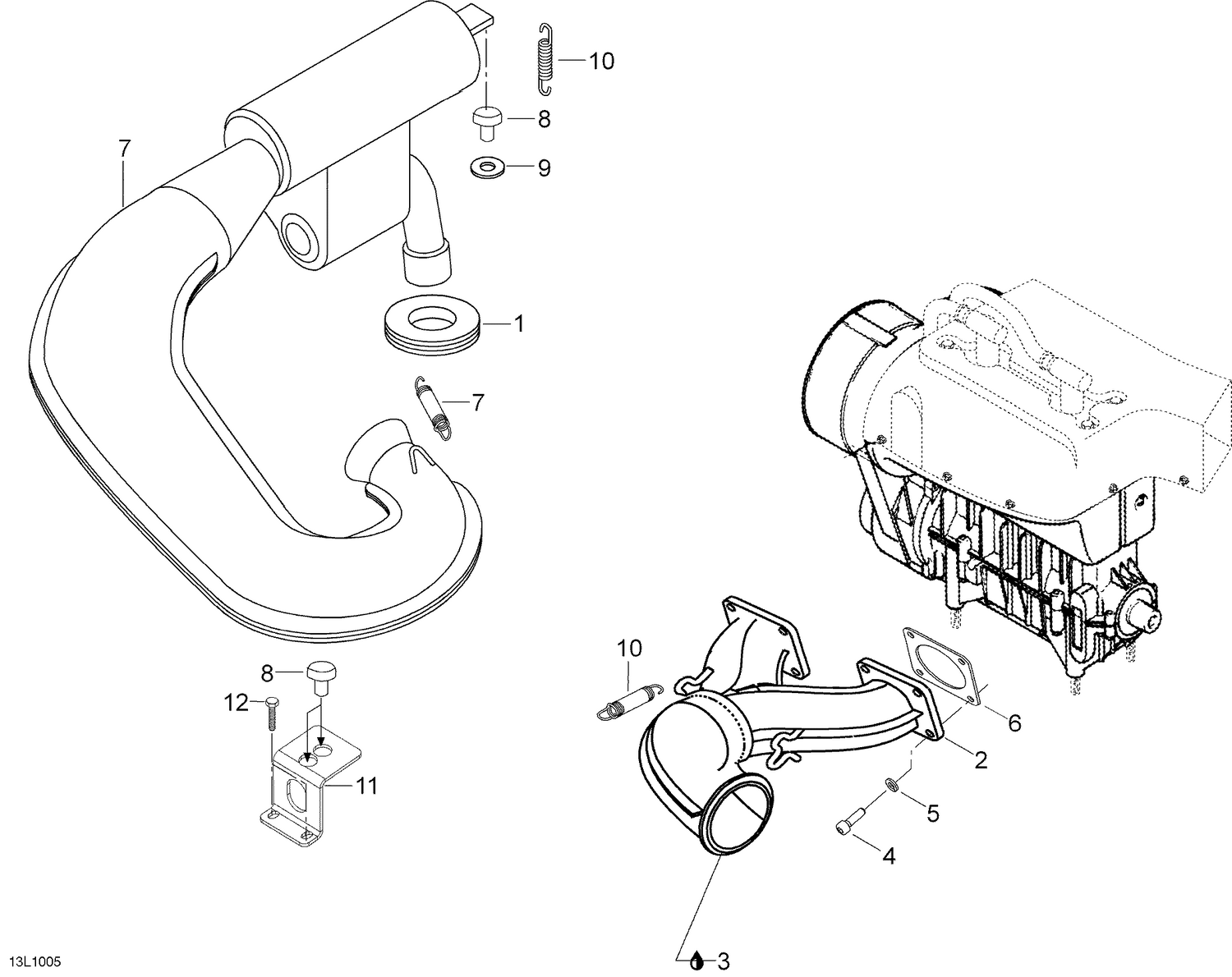

| Ref | Part Number | Description |
|---|
| 1 |
570039000 |
EXHAUST GROMMET - Call your local BRP dealership |
| 2 |
420973512 |
EXHAUST MANIFOLD - Call your local BRP dealership |
| 3 |
293800090 |
Sealant, Loctite, 80 ml |
| 4 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 5 |
20014 |
Lock washer A8 |
| 6 |
420831849 |
Gasket 1.0 mm |
| 7 |
605155509 |
PIPE_TUNED ASSY - Call your local BRP dealership |
| 8 |
514053654 |
Rubber Bumper |
| 9 |
20087 |
Washer M14 |
| 10 |
420938796 |
Spring This part replaces 420938795. |
| 11 |
605455781 |
Support - Call your local BRP dealership |
