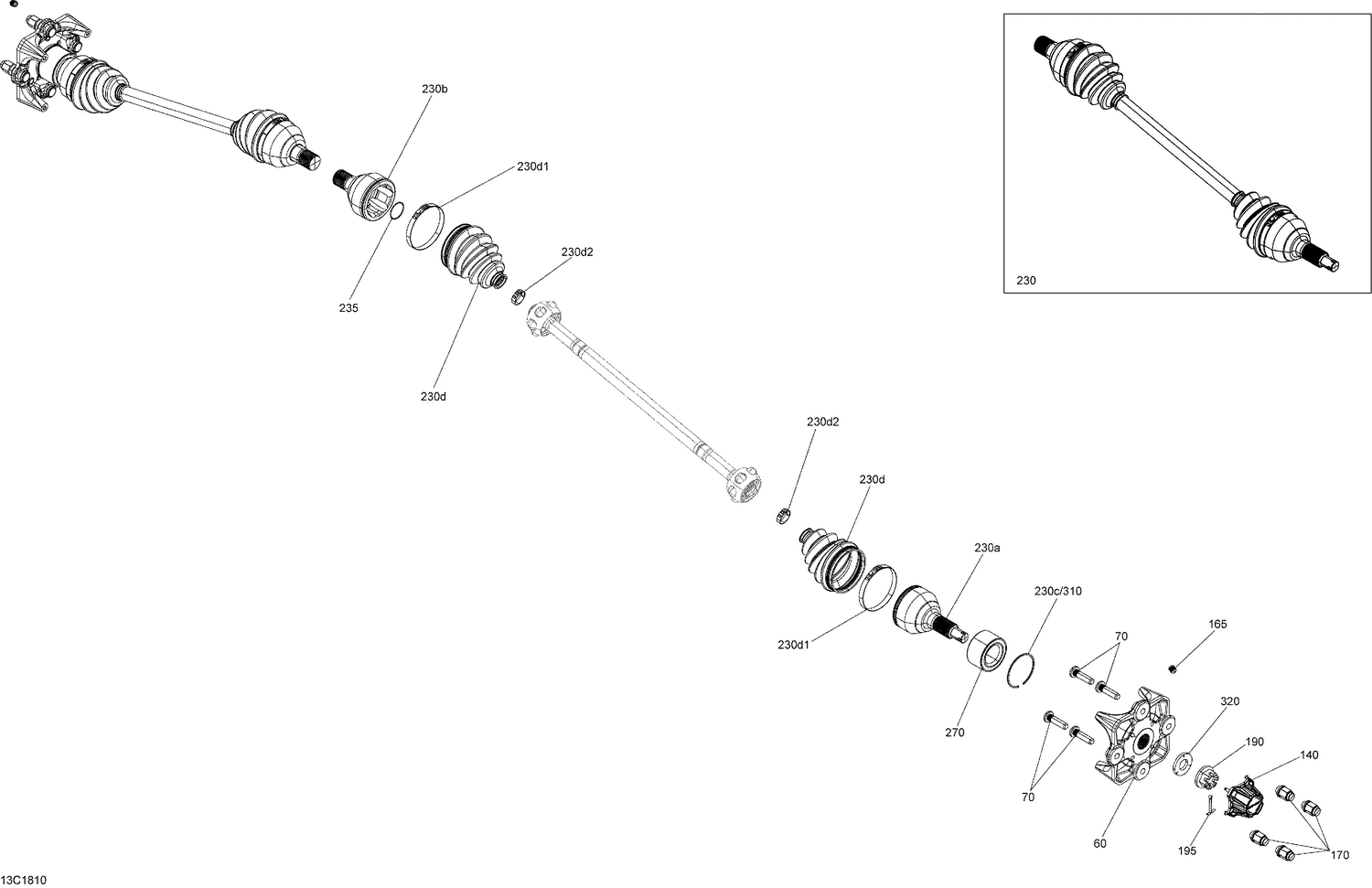

08- Rear Drive Maverick XMR, XRC
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 60 | 705502122 | Wheel Hub |
| 70 | 250300625 | Wheel Stud M12X1.5 |
| 140 | 705401841 | Wheel Cap |
| 165 | 293000110 | Valve Cap |
| 170 | 250100196 | Black, Wheel Nut M12 X 1.50 |
| 190 | 250100193 | Castle Nut M20 |
| 195 | 250400084 | Cotter Pin |
| 230a | 715900447 | CV Joint |
| 230b | 715900448 | PLUNGING JOINT - Call your local BRP dealership |
| 230c | 715900449 | Circlip Joint |
| 230d1 | 715900455 | Oetiker Clamp, Large |
| 230d2 | 715900456 | Oetiker Clamp, Small |
| 235 | 293300196 | O-Ring |
| 270 | 293350141 | Bearing_Ball This part replaces 293350109. |
| 310 | 293370102 | Circlip |
