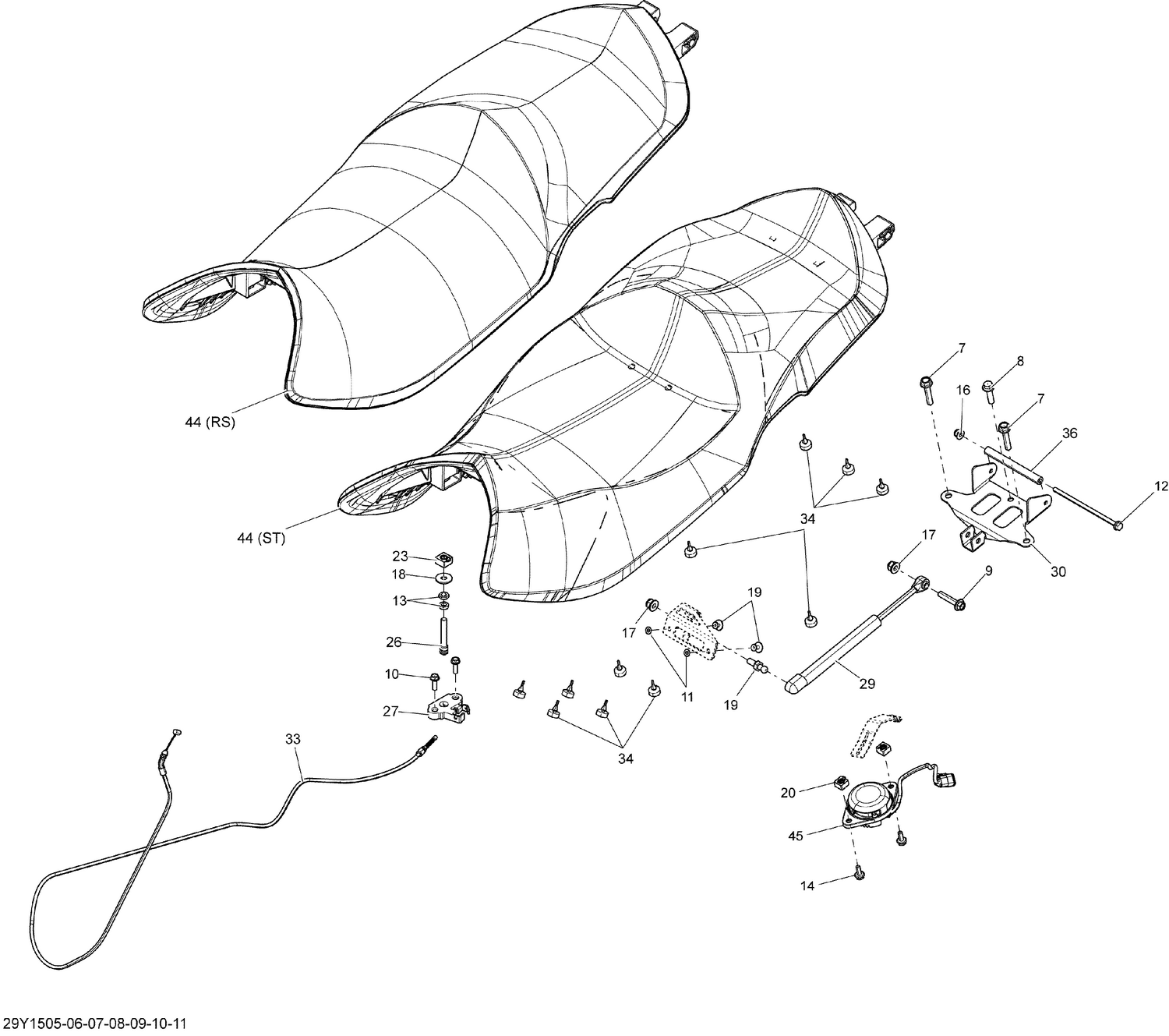

09- Seat _29Y1505
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 207584044 | Hex. Flange Screw M8 X 40, Scotch Grip |
| 8 | 207683034 | Hex. Flange Screw M8 X 30 |
| 9 | 207684044 | Hex. Flange Screw M8 X 40 |
| 10 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 11 | 211200035 | Flat Washer |
| 12 | 230663084 | Hex. Flange Screw M6 X 130 |
| 13 | 232180600 | Hex. Jam Nut M8 |
| 14 | 207661644 | Hex. Flange Screw M6 X 16 |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 233281414 | Hex. Flange Elastic Nut M8 |
| 18 | 234082410 | Flat Washer 8 mm |
| 19 | 250300039 | Ball Head Stud |
| 20 | 269500725 | M6 Nut Housing Ass'y |
| 23 | 269501943 | Elastic Nut Housing M8 |
| 24 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 26 | 705002223 | Lug |
| 27 | 705007379 | Latch |
| 29 | 708000479 | Gaz Shock |
| 30 | 708001770 | PIVOT PLATE - Call your local BRP dealership |
| 33 | 708001743 | Seat Cable |
| 34 | 708000759 | Rubber Stopper |
| 36 | 708000824 | SPACER BUSHING - Call your local BRP dealership |
| 44 | 708001621 | SEAT ASS'Y - Call your local BRP dealership |
