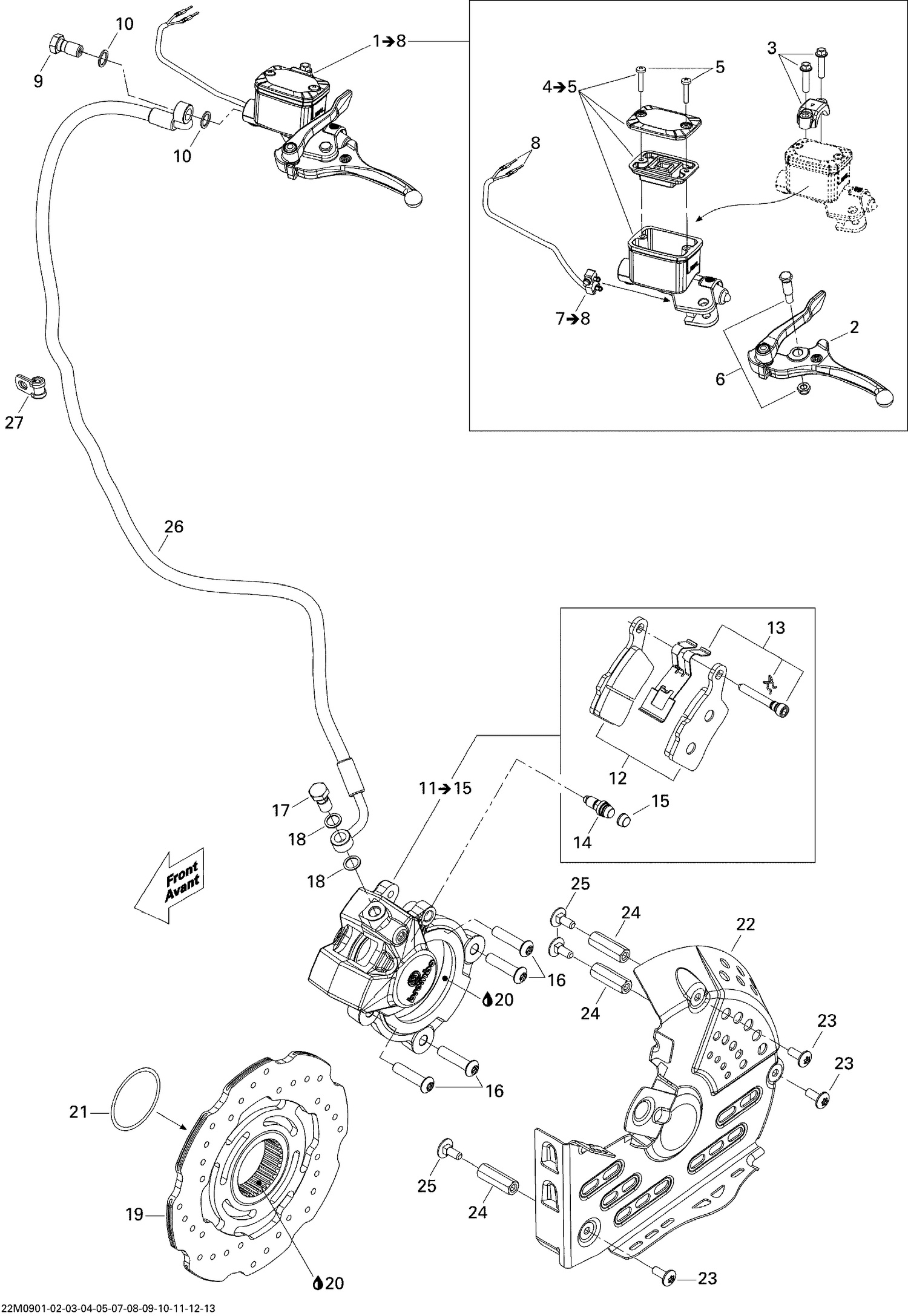

06- Hydraulic Brakes
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 507032476 | Lever With Parking Lock |
| 3 | 507032477 | Clamp And Screw Kit |
| 5 | 415129356 | Screw M4 X 20 |
| 6 | 415030000 | Pin Ass'y |
| 7 | 507032479 | Microswitch |
| 8 | 515175232 | Male Terminal |
| 9 | 414920500 | Banjo Bolt |
| 10 | 414920600 | Washer |
| 12 | 507032473 | Brake Pads Kit |
| 13 | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 14 | 507032475 | Bleeder |
| 15 | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 16 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 This part replaces 250000301. |
| 17 | 414920500 | Banjo Bolt |
| 18 | 414920600 | Washer |
| 19 | 507032487 | Disc |
| 20 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 21 | 293300134 | O-Ring |
| 22 | 507032446 | Aluminum Disk Protector |
| 23 | 250000365 | Torx Screw M6 X 16 |
| 24 | 507032497 | Threaded Tube |
| 25 | 207761644 | Carriage Bolt M6 X 1.0 X 16 |
| 26 | 507032493 | BRAKE HOSE - Call your local BRP dealership |
