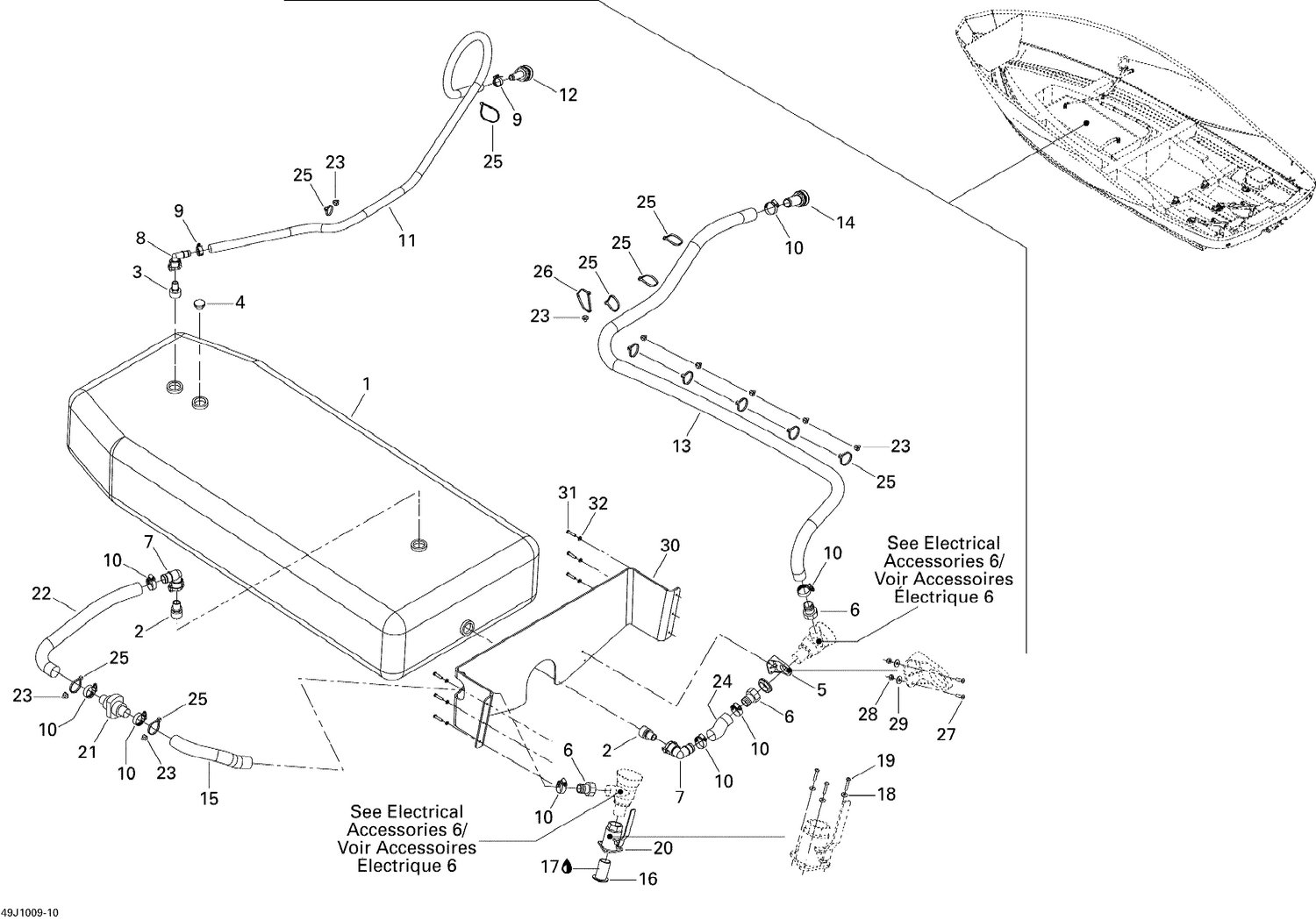

| Ref | Part Number | Description |
|---|
| 1 |
292800007 |
BAG-BALLAST - Call your local BRP dealership |
| 2 |
204130265 |
VALVE FITTING 1 - Call your local BRP dealership |
| 3 |
204130188 |
FITTING - Call your local BRP dealership |
| 4 |
204061154 |
PLUG - Call your local BRP dealership |
| 5 |
204061378 |
MOUNTING PUMP BRACKET - Call your local BRP dealership |
| 6 |
204130266 |
PUMP FITTING - Call your local BRP dealership |
| 7 |
204130267 |
ELBOW FITTING 1 - Call your local BRP dealership |
| 8 |
204130189 |
ELBOW FITTING - Call your local BRP dealership |
| 9 |
293650016 |
Tridon Clamp |
| 10 |
293650045 |
Tridon Gear Clamp |
| 11 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 12 |
262000074 |
Thru Hull Fitting 3/4" |
| 13 |
204061377 |
BALLAST HOSE 1-1/8 - Call your local BRP dealership |
| 14 |
262000075 |
THRU HULL FITTING 1-1/8 - Call your local BRP dealership |
| 15 |
204061377 |
BALLAST HOSE 1-1/8 - Call your local BRP dealership |
| 16 |
262000078 |
THRU HULL FITTING 1, BRONZE - Call your local BRP dealership |
| 17 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 18 |
234062600 |
Flat Washer M6, Stainless |
| 19 |
209662560 |
PHILLIPS TAPPING SCREW M6.3 X 25 - Call your local BRP dealership |
| 20 |
262000079 |
SHUT-OFF VALVE - Call your local BRP dealership |
| 21 |
262000088 |
CHECK VALVE 1-1/8 - Call your local BRP dealership |
| 22 |
204061377 |
BALLAST HOSE 1-1/8 - Call your local BRP dealership |
| 23 |
293730040 |
Mount Dart |
| 24 |
204061377 |
BALLAST HOSE 1-1/8 - Call your local BRP dealership |
| 25 |
293750009 |
Tie-Rap 173 mm |
| 26 |
293750008 |
Tie Wrap 368 mm |
| 27 |
208442060 |
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership |
| 28 |
232541600 |
Elastic Stop Nut M4 |
| 29 |
234042600 |
Flat Washer 4 mm, Stainless |
| 30 |
262000083 |
BALLAST BRACKET 210 WAKE - Call your local BRP dealership |
| 31 |
207163060 |
Hex. Screw M6 X 30 |
