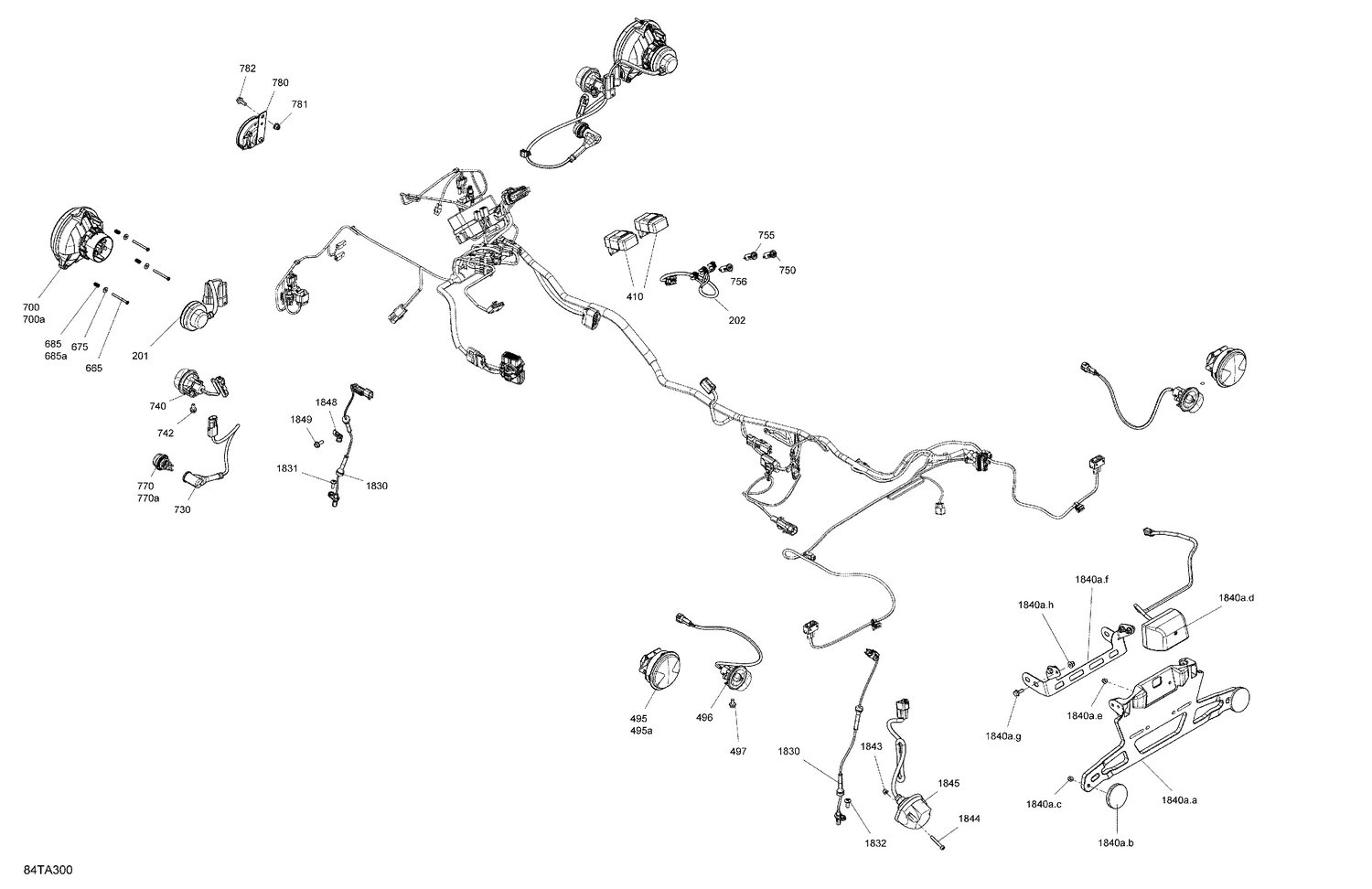

08- Electric - Flasher lights
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 201 | 710005780 | Light Cable |
| 202 | 710005840 | Indicator Light Cable |
| 410 | 710003239 | Flasher Unit |
| 495 | 710001645 | Tail Light Ass'y |
| 495a | 520000758 | Bulb |
| 496 | 710002964 | Flasher |
| 497 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 675 | 517225900 | Flat Washer |
| 685a | 517168600 | Spring |
| 700 | 710003900 | Low Beam |
| 700a | 710000871 | Bulb, 12V 35/35W |
| 730 | 710005676 | Position Light Harness |
| 740 | 710002964 | Flasher |
| 742 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 750 | 710003909 | Pilot Lamp |
| 755 | 710005766 | Pilot Light Trailer Flasher |
| 756 | 710005767 | Pilot Light Tail Lamp |
| 770 | 710001726 | Day Light |
| 770a | 710003269 | Cap Protector |
| 780 | 710004791 | Horn |
| 781 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 782 | 207661644 | Hex. Flange Screw M6 X 16 |
| 1830 | 710006981 | Speed Sensor |
| 1831 | 250000720 | Torx Screw K50 X 16 |
| 1832 | 250000721 | Torx Truss Screw M6 X 16 |
| 1843 | 233251434 | Flange Elastic Nut M5 |
| 1844 | 205053588 | Socket Head Screw M5 X 35 |
| 1845 | 710005846 | Trailer Harness |
| 1848 | 293650256 | Clamp |
