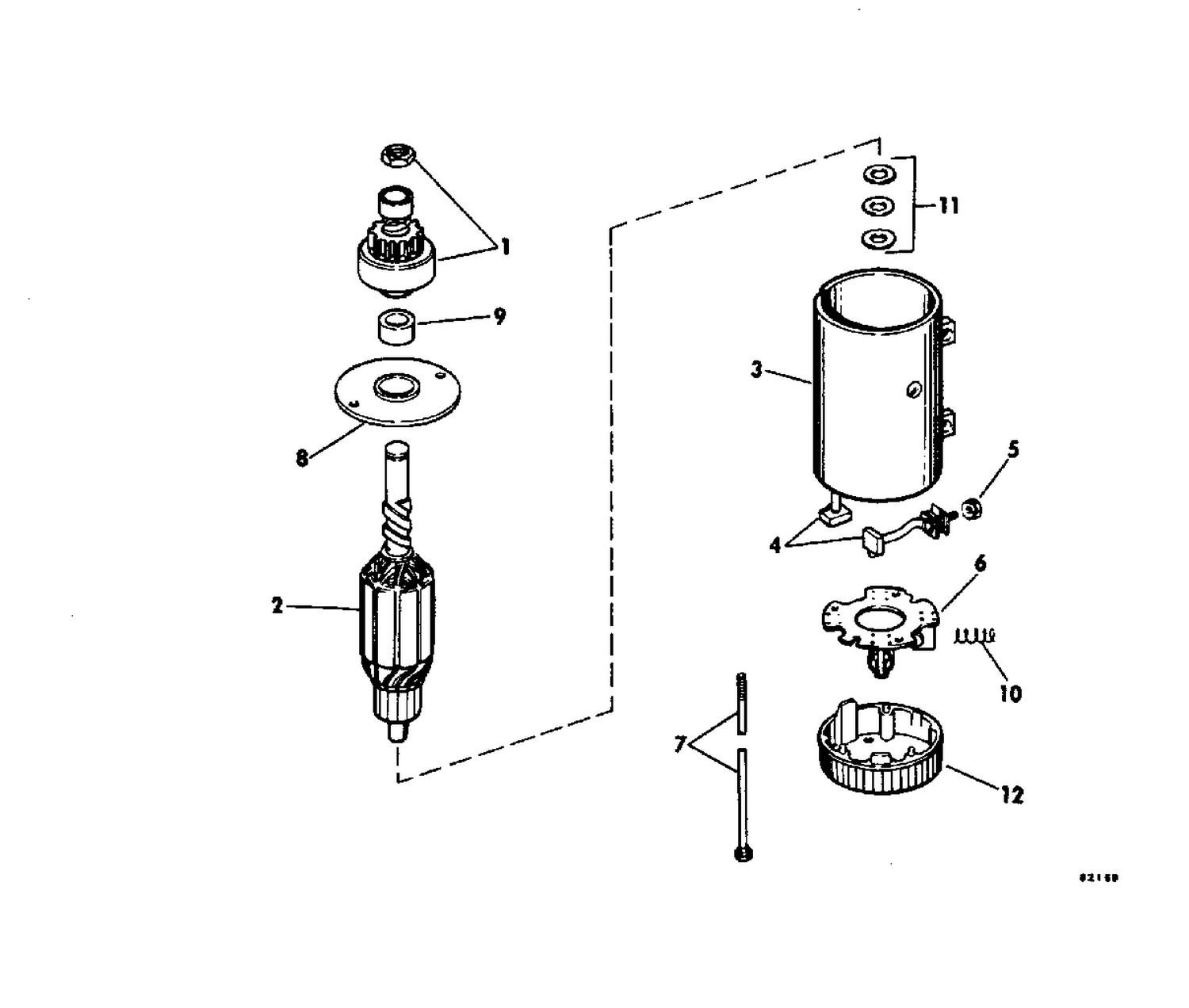

ELECTRIC STARTER PRESTOLITE MODELS MJL-4005
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0390104 | DRIVE ASSY |
| 2 | 0390110 | ARMATURE |
| 3 | 0390108 | FRAME & FIELD ASSY |
| 6 | 0384502 | BRUSH |
| 7 | 0390103 | THRU BOLT & NUT ASSY |
| 8 | 0385059 | HEAD ASSY, Drive end |
| 10 | 0383142 | SPRING SET |
| 11 | 0384306 | THRUSH WASHER PKG. |
| 12 | 0390106 | HEAD ASSY, Commutator |
| 0387094 | 0387094 | ELECTRIC STARTER ASSY. |
