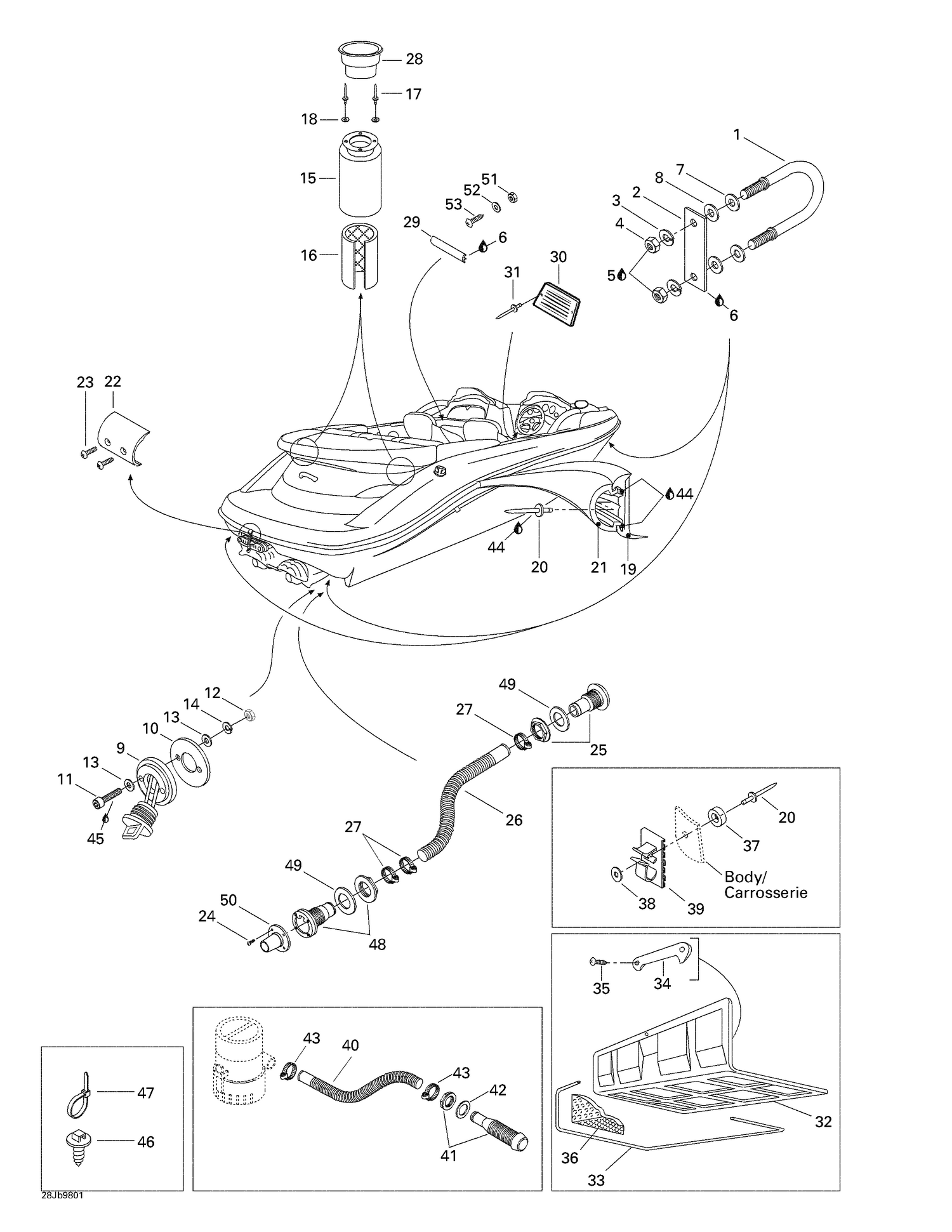

| Ref | Part Number | Description |
|---|
| 1 |
292000063 |
U-CLAMP - Call your local BRP dealership |
| 2 |
291000307 |
RETAINING PLATE - Call your local BRP dealership |
| 3 |
234181601 |
Lock Washer 8 mm, Stainless This part replaces 213000001. |
| 4 |
232081600 |
Hex. Nut M8 This part replaces 212100001. |
| 5 |
293800005 |
Loctite 271, 10 ml |
| 6 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 7 |
293050001 |
Flat Washer M8.5 x 18 |
| 8 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 9 |
292000187 |
Drain Plug |
| 10 |
293250030 |
GASKET - Call your local BRP dealership |
| 11 |
205042560 |
Socket Head Screw M4 X 25 This part replaces 215942560. |
| 12 |
211100025 |
Nut M4 |
| 13 |
234040600 |
Flat Washer 4 mm This part replaces 213200010. |
| 14 |
234141601 |
Lock Washer 4 mm This part replaces 217341500. |
| 15 |
204050004 |
Rear Hose Vent |
| 16 |
291000400 |
Sound Damping |
| 17 |
293150014 |
Pop Rivet 3/16" |
| 18 |
211200039 |
FLAT WASHER 3/16? - Call your local BRP dealership |
| 19 |
204050083 |
Bumper (Green) (5679) |
| 20 |
293150013 |
Pop Rivet 3/16" |
| 21 |
204050084 |
Bumper Trim (Green) (5679) |
| 22 |
204050085 |
Bumper Cover (Green) (5679) |
| 23 |
209943260 |
Phillips Tapping Screw M4.2 X 32 This part replaces 211000072. |
| 24 |
211000180 |
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership |
| 25 |
293710060 |
FITTING - Call your local BRP dealership |
| 26 |
204070560 |
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership This part replaces 291000738. |
| 27 |
293650045 |
Tridon Gear Clamp |
| 28 |
291000914 |
Cup Holder |
| 29 |
204050048 |
TRIM, WHITE - Call your local BRP dealership |
| 30 |
291000300 |
Rear Intake Grill (Black) |
| 31 |
204130080 |
RIVET_PLASTIC - Call your local BRP dealership This part replaces 293150010. |
| 33 |
219704368 |
Seal Tray 1000Mm Long |
| 34 |
291000608 |
HANDLE, WHITE - Call your local BRP dealership |
| 35 |
241141660 |
Hex. Flange Screw K40 X 16 This part replaces 211000033. |
| 36 |
204320005 |
Luggage Foam |
| 37 |
293830043 |
Rubber Stopper |
| 38 |
211200028 |
Flat Washer |
| 39 |
414839700 |
Clip Cable |
| 40 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership This part replaces 291000620. |
| 41 |
293710162 |
Fitting This part replaces 293710015. |
| 42 |
293250006 |
GASKET - Call your local BRP dealership |
| 43 |
293650016 |
Tridon Clamp |
| 44 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 45 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 46 |
293730040 |
Mount Dart This part replaces 293730018. |
| 47 |
293750002 |
Tie Wrap 142 mm |
| 48 |
204060071 |
THRU HULL FITTING - Call your local BRP dealership |
| 49 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250039. |
| 50 |
204060188 |
SCUPPER VALVE - Call your local BRP dealership |
| 51 |
232551600 |
Hex. Elastic Nut M5 This part replaces 212000004. |
| 52 |
234052600 |
Flat Washer 5 mm, Stainless This part replaces 213200015. |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
