Home / BRP / 2008 / MX Z / MX Z TNT 500SS, 2008 000MF8A00 000MF8B00 000MF8C00 / 01- Engine And Engine Support

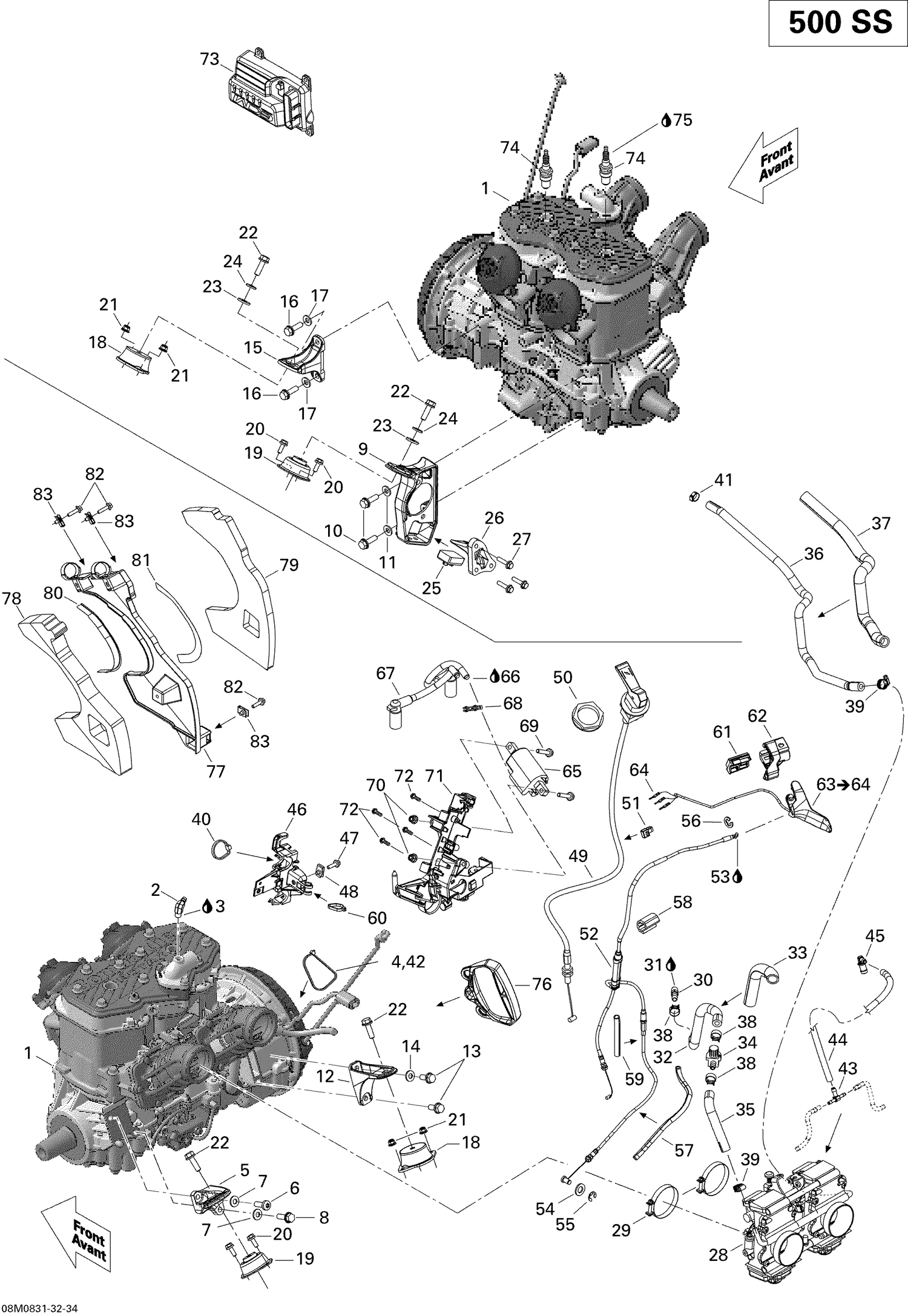

01- Engine And Engine Support

01- Engine And Engine Support

Parts (81)

RefPart NumberDescription
1 400509775 Engine 593SS
2 293700045 ELBOW FITTING 90 - Call your local BRP dealership
3 219704455 Was 293800018 Loctite 592, 50 ml
4 414115200 Tie-Rap 180 mm
5 512060478 Rear Support, PTO This part replaces 512060173.
6 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
7 234281474 Conical Spring Washer M8
8 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
9 512060712 FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060203.
10 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
11 234281474 Conical Spring Washer M8
12 512060559 Rear Support, MAG This part replaces 512060114.
13 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
14 234281474 Conical Spring Washer M8
15 512060108 FRONT SUPPORT, MAG - Call your local BRP dealership
16 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
17 234281474 Conical Spring Washer M8
18 512060729 Rubber Mount This part replaces 512060246.
19 512061507 Vibration Damper This part replaces 512060387.
20 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
21 233261414 Hex. Flange Elastic Nut M6 x 1.0
22 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
23 503183200 Yellow, Washer
24 234281474 Conical Spring Washer M8
25 512060179 STOPPER - Call your local BRP dealership
26 512060576 Stopper Support This part replaces 512060180.
27 207562544 Hex. Flange Screw M6 X 25
28 403138800 Carburator Ass'y TM-40
29 512059835 Gemi Clamp
30 512060196 Male Connector 1/8"-27 NPT
31 219704455 Was 293800018 Loctite 592, 50 ml
32 512060355 Hose Formed
33 219704408 Tubing 16 Mm 1000Mm Long
34 512059324 Valve 5/16”
35 512060353 Hose Formed
36 512060347 Hose Formed
37 219704408 Tubing 16 Mm 1000Mm Long
38 414655700 Spring Clamp
39 293650170 Tridon Gear Clamp
40 414115200 Tie-Rap 180 mm
41 293650025 Oetiker Gear Clamp
42 414115200 Tie-Rap 180 mm
43 572045500 T-Fitting
44 219704410 Polyurethane Hose 10000Mm Long
45 414580700 Male Connector
46 512060298 Solenoid Support
47 207652044 Hex.Flange Screw M5 X 20
48 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
49 512060672 Choke Cable This part replaces 512060153.
50 512060671 Plastic Nut This part replaces 512060016.
51 414115200 Tie-Rap 180 mm
52 512060132 Throttle Cable
53 219704453 Was 293550004 Dielectric Grease, 150 g
54 234081100 Flat Washer 8 mm, Nylon
55 414753500 Circlip
56 414274500 Circlip
57 219704425 Tubing 6 Mm 3000Mm Long
58 512060313 Protector
59 219704407 Tubing 10 MM 1000MM Long
60 414115200 Tie-Rap 180 mm
61 512060198 Upper Housing Ass'y
62 512060197 LOWER HOUSING - Call your local BRP dealership
64 515175232 Male Terminal
65 512059968 Ignition Coil
66 219704453 Was 293550004 Dielectric Grease, 150 g
67 512060291 Cable
68 410914600 Plastic Clip, Spark Plug Wire
69 207563034 Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044.
70 233261414 Hex. Flange Elastic Nut M6 x 1.0
71 512060924 Coils Support This part replaces 512060278.
72 241151640 Hex. Flange Screw K50 X 2.24 X 16
73 512060262 Calibrated Module 500SS
74 512060354 Spark Plug NGK BR10ECS
75 219704453 Was 293550004 Dielectric Grease, 150 g
76 512060136 Starter Grip
77 512060338 Noise Shield
78 512060341 Inner Noise Foam
79 512060342 Outer Noise Foam
80 512060574 Heat Shield This part replaces 512060358.
81 512060575 Heat Shield This part replaces 512060371.
82 207652044 Hex.Flange Screw M5 X 20
