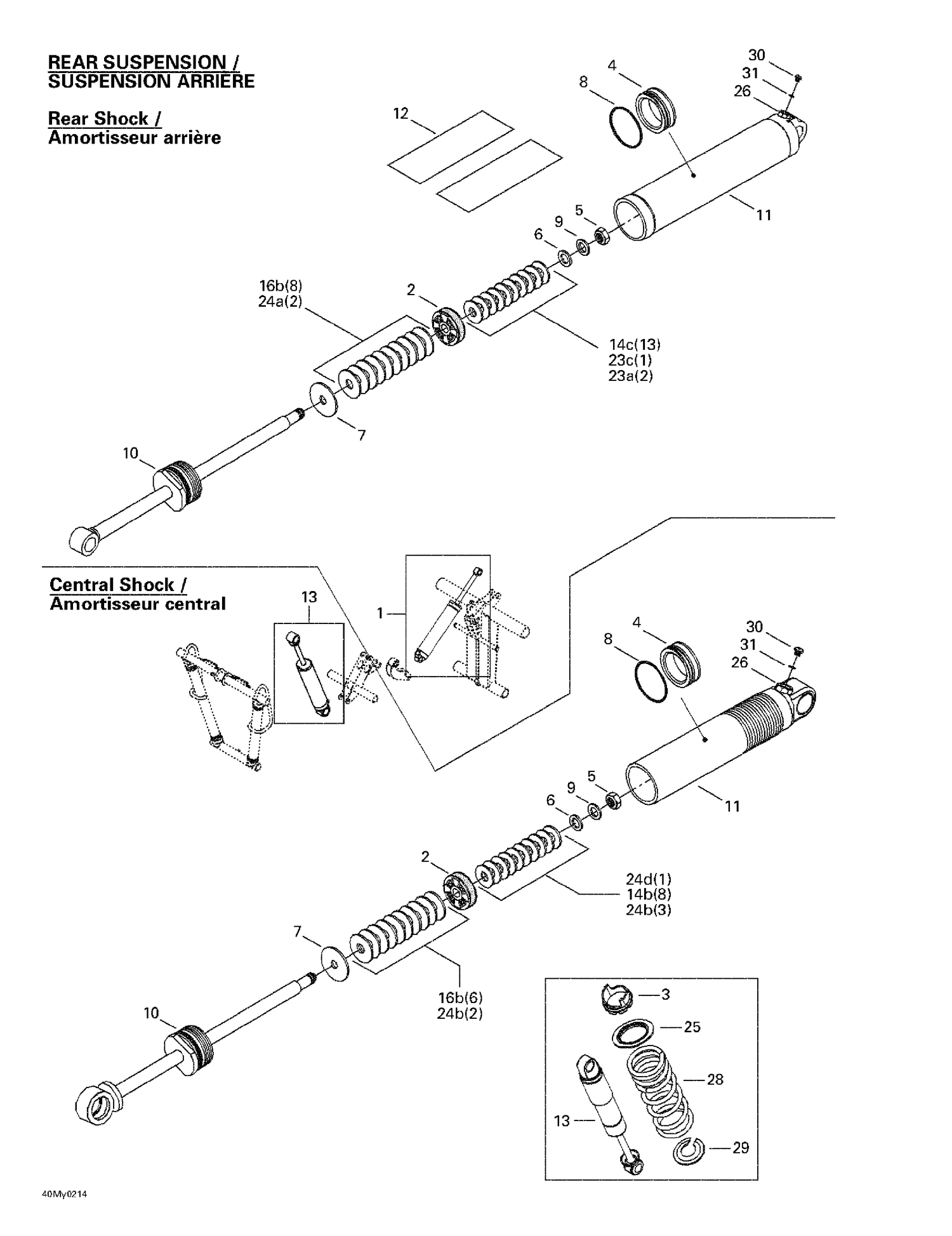

| Ref | Part Number | Description |
|---|
| Not |
Available |
As Spare Part - Piston (2 x 0.3-4) |
| 1 |
503189970 |
Rear Shock |
| 2 |
Not |
Available As Spare Part - Piston (2 x 0.3-6) |
| 3 |
505073625 |
Adjustment Cam This part replaces 505070150. |
| 4 |
415097900 |
Free Piston |
| 5 |
Not |
Available As Spare Part - Nut |
| 6 |
Not |
Available As Spare Part - Valve Stopper |
| 7 |
Not |
Available As Spare Part - Valve Stopper |
| 8 |
414888312 |
O-Ring |
| 9 |
Not |
Available As Spare Part - Washer |
| 10 |
Not |
Available As Spare Part - Piston Rod Ass'y |
| 11 |
Not |
Available As Spare Part - Body Cylinder |
| 12 |
516000183 |
Shock Decal |
| 13 |
503189968 |
Center Shock |
| 14a |
415039100 |
Leaf Valve Ø30 X 0.254 (C36) |
| 14b |
414888318 |
Leaf Valve Ø30 X 0.203 (C36) |
| 14c |
414888319 |
Leaf Valve Ø30 X 0.152 (C36) |
| 15a |
414888320 |
Leaf Valve Ø28 X 0.203 (C36) |
| 15b |
414888321 |
Leaf Valve Ø28 X 0.152 (C36) |
| 16a |
415039000 |
Leaf Valve Ø26 X 0.254 (C36) |
| 16b |
414888322 |
Leaf Valve Ø26 X 0.203 (C36) |
| 16c |
414888323 |
Leaf Valve Ø26 X 0.152 (C36) |
| 17a |
414888324 |
Leaf Valve Ø22 X 0.203 (C36) |
| 17b |
414888325 |
Leaf Valve Ø22 X 0.152 (C36) |
| 18a |
414888340 |
Leaf Valve Ø21 X 0.114 (C36) |
| 19a |
414888326 |
Leaf Valve Ø20 X 0.203 (C36) |
| 19b |
414888327 |
Leaf Valve Ø20 X 0.152 (C36) |
| 19c |
414888328 |
Leaf Valve Ø20 X 0.114 (C36) |
| 19d |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.305 (C36) |
| 20a |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.203 (C36) |
| 21a |
414888329 |
Leaf Valve Ø18 X 0.203 (C36) |
| 21b |
414888330 |
Leaf Valve Ø18 X 0.152 (C36) |
| 22a |
414888331 |
Leaf Valve Ø16 X 0.254 (C36) |
| 22b |
414888332 |
Leaf Valve Ø16 X 0.203 (C36) |
| 22c |
414888333 |
Leaf Valve Ø16 X 0.152 (C36) |
| 22d |
415038900 |
Leaf Valve Ø16 X 0.114 (C36) |
| 23a |
414888334 |
Leaf Valve Ø15 X 0.254 (C36) |
| 23b |
414888335 |
Leaf Valve Ø15 X 0.203 (C36) |
| 23c |
414888336 |
Leaf Valve Ø15 X 0.152 (C36) |
| 23d |
414888337 |
Leaf Valve Ø15 X 0.114 (C36) |
| 24a |
503189538 |
Leaf Valve Ø12 X 0.254 (C36) |
| 24b |
414888338 |
Leaf Valve Ø12 X 0.203 (C36) |
| 24c |
414888339 |
Leaf Valve Ø12 X 0.152 (C36) |
| 24d |
415038800 |
Leaf Valve Ø12 X 0.114 (C36) |
| 25 |
503191872 |
Spring Guide This part replaces 517184300. |
| 26 |
505070398 |
Air Valve |
| 27 |
293600035 |
Shock Oil, 1 Liter |
| 28 |
503189325 |
SPRING - Call your local BRP dealership |
| 29 |
503189912 |
Spring Stopper |
| 30 |
505070399 |
Screw |
