Home / BRP / STERN DRIVE / 1988 / 7.40 / 744AMRGDP 1988 / TRANSOM MOUNT

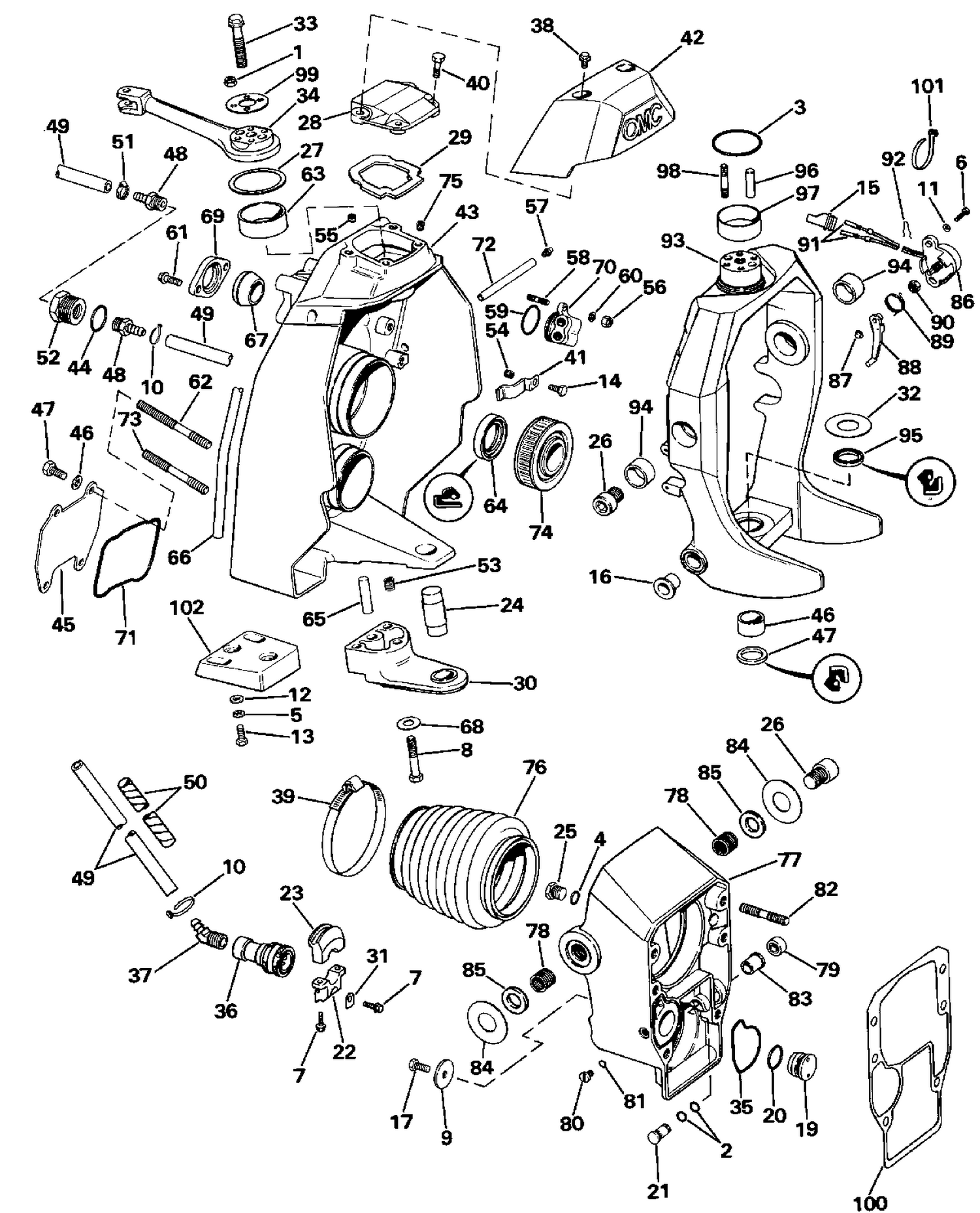

TRANSOM MOUNT

TRANSOM MOUNT

Parts (78)

RefPart NumberDescription
9 0912669 WASHER, Plug
10 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
13 0329055 SCREW, Anode
16 0910855 BUSHING, Pivot pin
17 3852568 SCREW, Cover This part replaces 0911859.
19 0912668 PLUG, Water inlet
20 0911718 O-RING, Nipple
21 0912670 PLUG, Shift
22 0912747 RETAINER, Bottom
23 0912746 RETAINER, Top
24 3852728 SHAFT, Steering pivot This part replaces 0911793.
25 0912671 PLUG, Shift cable
26 3852854 PIVOT SCREW This part replaces 0911806.
27 3852554 THRUST WASHER, Steering arm This part replaces 0911807.
28 3854577 CAP & GASKET This part replaces 0985438.
29 3852677 GASKET, Cap This part replaces 0913212.
30 3858192 BRACKET, Steering support This part replaces 0912391.
31 0913603 RETAINER
32 3852557 THRUST WASHER This part replaces 0911818.
33 3852591 SCREW, Steering arm This part replaces 0912306.
34 0911821 STEERING ARM
35 3852560 SEAL, Water passage This part replaces 0911823.
36 0984868 COUPLER, Quick disconnect
37 0912618 ELBOW, Quick disconnect
38 3852682 SCREW, Cover This part replaces 0913255.
39 3852604 CLAMP, Exhaust This part replaces 0912667.
40 3852473 SCREW, Cap to gimbal This part replaces 0909636.
41 0911900 CLAMP, Oil line
42 0985403 COVER & INSERT
43 0984807 GIMBAL HOUSING ASSY.
44 0911871 O-RING, Oil line
45 0125091 COVER, Plate
46 0329055 SCREW, Anode
48 0911916 FITTING, Hose
49 0912664 HOSE, Check valve
50 0912696 SLEEVE, Oil hose
52 0912659 PLUG, Oil line
53 0910935 INSERT, 3/8-16
54 0910901 INSERT
55 3852567 INSERT This part replaces 0911858.
59 0322501 O-RING, Manifold block
60 0329241 RONDELLE
61 0341013 SCREW, Cover This part replaces 0908668.
62 3852546 STUD, Transom, long This part replaces 0911792.
63 3852547 BEARING, Steering This part replaces 0911794.
64 3852548 SEAL, Driveshaft This part replaces 0911795.
65 3852549 PIN, Steering support This part replaces 0911796.
66 3852550 SEAL, Transom This part replaces 0911797.
67 0912663 SEAL, Water tube
69 0911817 RETAINER, Water tube
70 3852559 MANIFOLD BLOCK This part replaces 0911822.
71 0911831 SEAL, Exhaust cover
72 3852564 TUBE, Grease This part replaces 0911843.
73 3852576 STUD, Transom, short This part replaces 0911920.
74 3853807 BEARING ASSY., U-joint This part replaces 0983937.
75 3852526 INSERT This part replaces 0911510.
76 3854127 BELLOWS, U-joint This part replaces 0983973.
77 0985631 PIVOT HOUSING ASSY
78 3852698 INSERT, Pivot screw This part replaces 0913412.
79 0984186 PLUG, Bellcrank
80 3852536 PLUG, Water drain This part replaces 0911719.
81 0911311 O-RING, Plug
82 3852551 STUD, Pivot to gear housing This part replaces 0911798.
83 0911732 BUSHING, Bellcrank
84 3852558 WASHER, Gimbal to pivot hsg. This part replaces 0911820.
85 3852697 THRUST WASHER, Pivot screw This part replaces 0913411.
86 0984748 TRIM SENDER ASSY
88 0911800 ARM
89 3852577 SPRING This part replaces 0911928.
92 3852555 RETAINER, Plug This part replaces 0911809.
93 0984923 GIMBAL ASSY
94 3852544 BEARING, Steering & tilt This part replaces 0911787.
95 0911788 SEAL
96 3852545 DOWEL, Steering arm This part replaces 0911789.
97 3852571 SLEEVE, Gimbal This part replaces 0911901.
98 3852588 STUD This part replaces 0912240.
99 3852585 PLATE, Steering arm This part replaces 0912155.
100 0915840 GASKET, Gear housing to pivot This part replaces 0911836.
