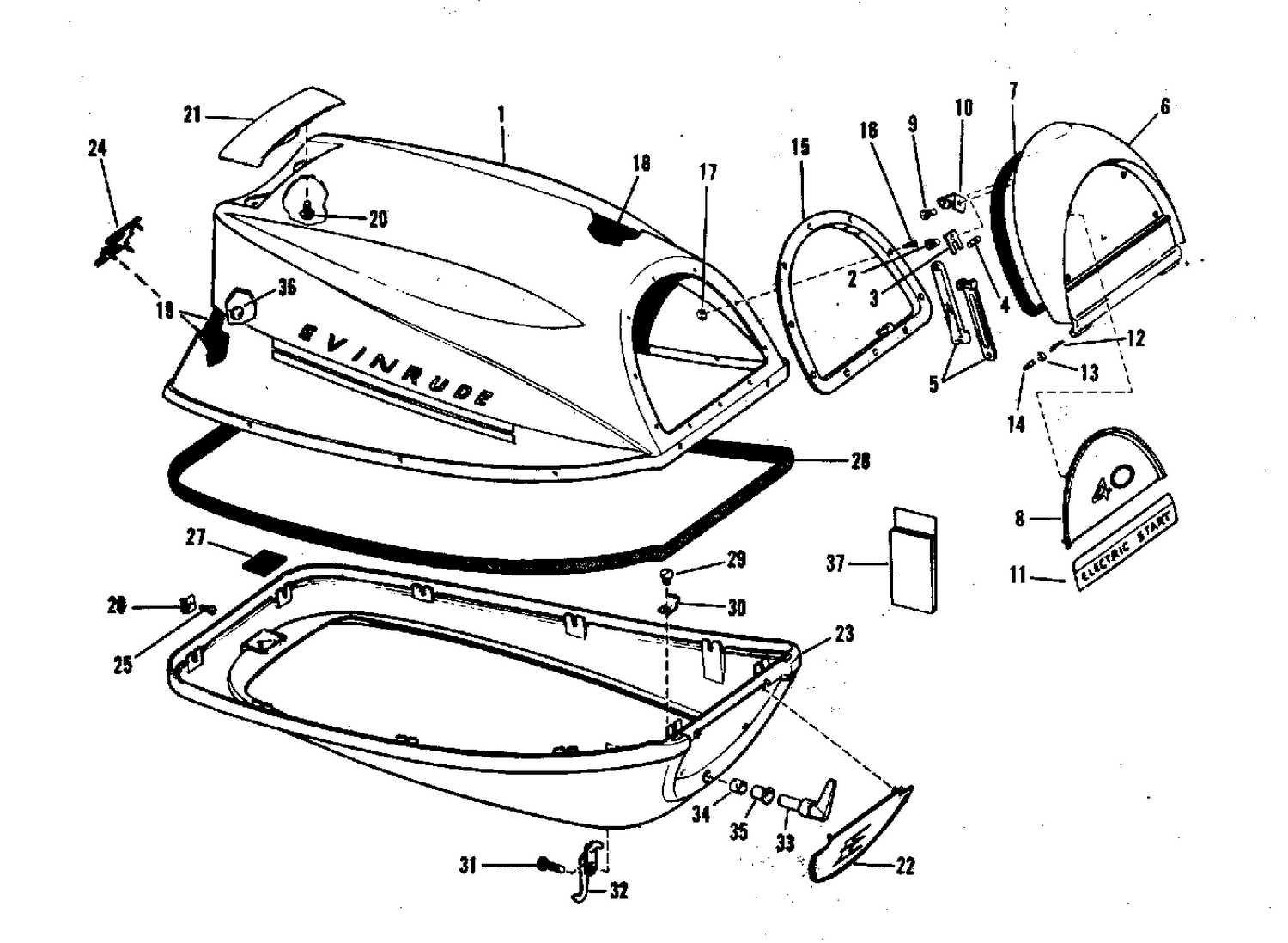

MOTOR COVER GROUP
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0279048 | MOTOR COVER ASSEMBLY |
| 2 | 0307920 | SCREW |
| 3 | 0307690 | RETAINER, Pivot pin |
| 4 | 0204878 | PIN, Slide pivot |
| 5 | 0204916 | SLIDE, Door |
| 6 | 0278865 | FRONT DOOR ASSEMBLY |
| 8 | 0205814 | PANEL, Front door |
| 12 | 0204294 | SPRING, Hinge pin |
| 13 | 0204293 | WASHER, Hinge pin |
| 14 | 0204292 | HINGE PIN, Front door |
| 15 | 0278412 | DOOR FRAME ASSEMBLY |
| 18 | 0204918 | SOUND BLANKET , Top |
| 19 | 0204919 | SOUND BLANKET, Side |
| 20 | 0204936 | SCREW, Tilt handle |
| 21 | 0205028 | TILT HANDLE |
| 22 | 0205807 | APPLIQUE, Cover, lower half |
| 23 | 0205622 | COVER, Lower half |
| 24 | 0206188 | EMBLEM, Cover, rear |
| 25 | 0204904 | SCREW, Cover fastener |
| 26 | 0204903 | FASTENER COVER SCREWS |
| 27 | 0307924 | PAD, Lower cover |
| 28 | 0205630 | SEAL, Cover halves |
| 29 | 0307907 | SCREW |
| 30 | 0307908 | SPRING |
| 31 | 0303311 | SCR,Clamp,eng cable |
| 32 | 0378322 | LINK & HOOK |
| 33 | 0204877 | HANDLE, Front latch |
| 34 | 0553769 | BUSHING |
| 35 | 0204888 | SLEEVE BEARING, Cover latch |
| 37 | 0314595 | CASE, Owner card |
| 0279113 | 0279113 | DECAL SET |
