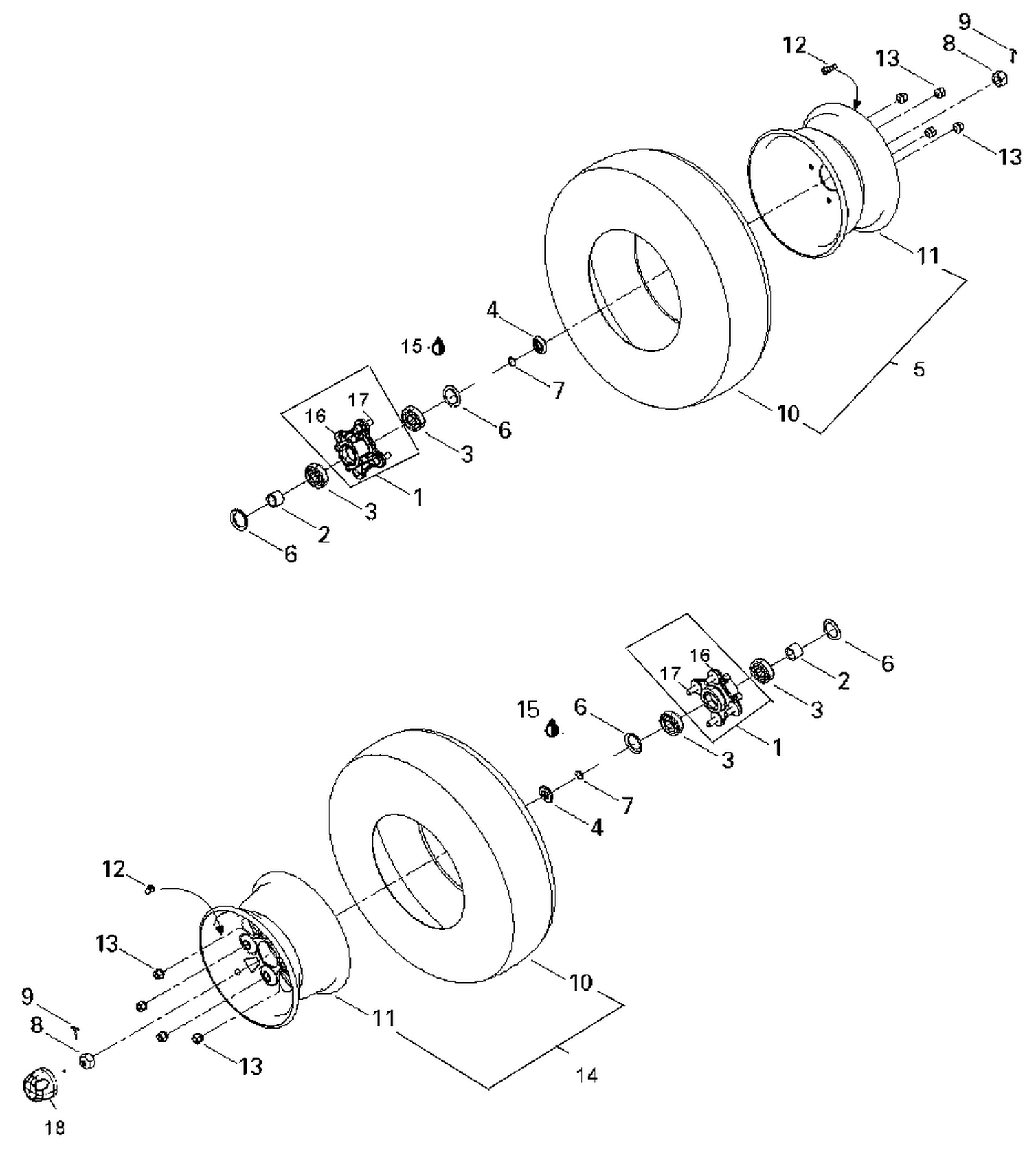

| Ref | Part Number | Description |
|---|
| 1 |
A42709179000 |
WHEEL HUB ASS'Y - Call your local BRP dealership |
| 2 |
705400113 |
INSIDE BUSHING - Call your local BRP dealership |
| 3 |
293350036 |
BALL BEARING - Call your local BRP dealership |
| 4 |
705400235 |
OUTSIDE BUSHING - Call your local BRP dealership |
| 5 |
Not |
Available As Spare Part - RH Front Wheel Ass'y |
| 6 |
293250094 |
SEAL - Call your local BRP dealership |
| 7 |
293300058 |
O-RING - Call your local BRP dealership |
| 8 |
232591414 |
Elastic Stop Nut M18 |
| 9 |
250400036 |
Cotter Pin This part replaces 250400016. |
| 10 |
A42711179000 |
TIRE-FRONT - Call your local BRP dealership This part replaces 705400240. |
| 11 |
705400242 |
Front Rim |
| 12 |
705400193 |
Rim Valve With Cap |
| 13 |
250100042 |
Steel Wheel Nut |
| 14 |
Not |
Available As Spare Part - LH Front Wheel Ass'y |
| 15 |
293550010 |
Synthetic Grease, 400 G |
| 16 |
Not |
Available As Spare Part - Wheel Hub |
| 17 |
250300013 |
Wheel Stud |
