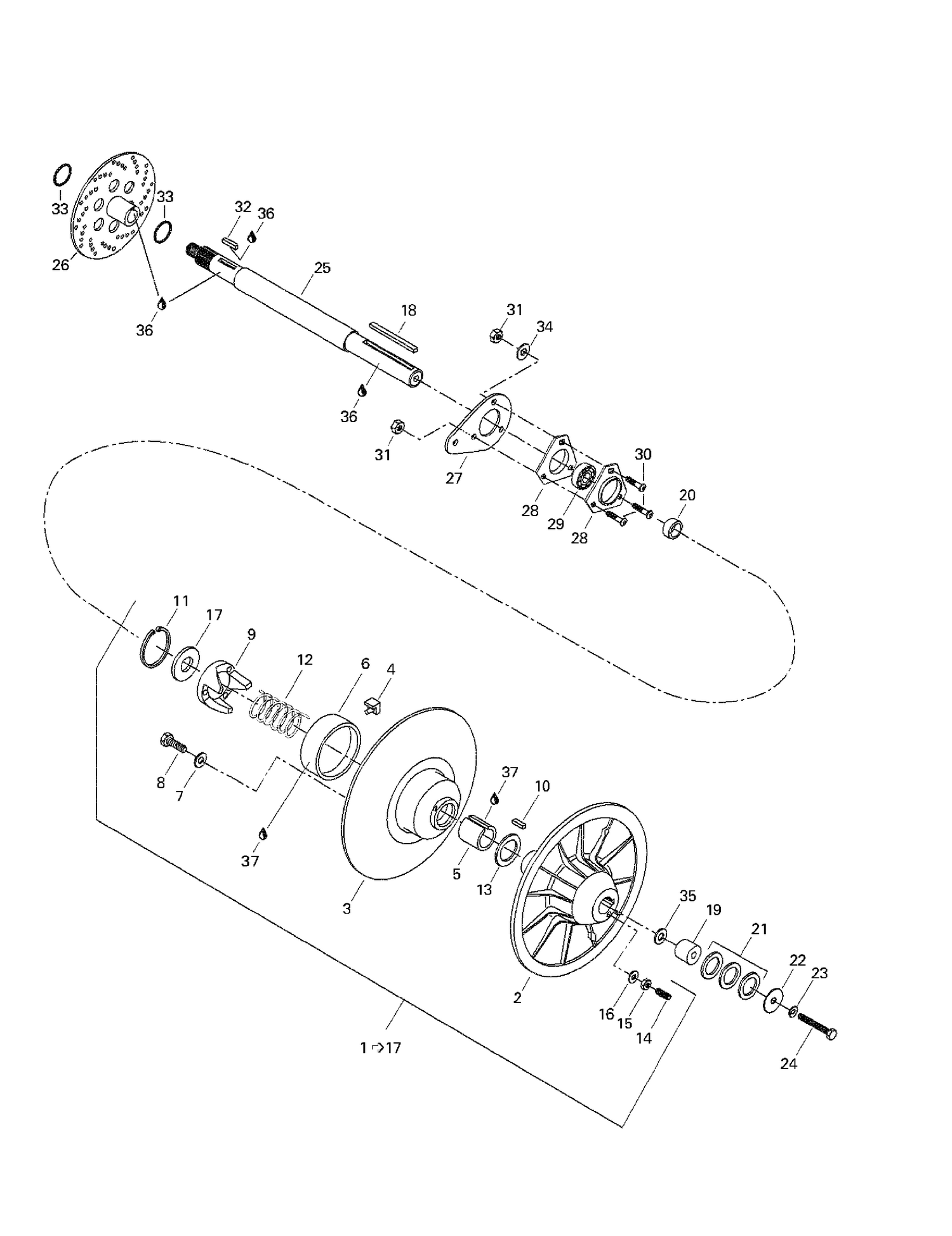

| Ref | Part Number | Description |
|---|
| 2 |
504141600 |
Fixed Flange |
| 4 |
414918000 |
CAM SLIDER SHOE - Call your local BRP dealership |
| 5 |
415011200 |
BUSHING - Call your local BRP dealership |
| 7 |
399910000 |
Flat Washer |
| 8 |
732600022 |
SCREW-SOCKET BN.HD.GM6174 - Call your local BRP dealership |
| 9 |
504096000 |
Cam 44 Deg |
| 10 |
414820800 |
Key |
| 11 |
371903100 |
CIRCLIP - Call your local BRP dealership |
| 12 |
414505800 |
RELEASE SPRING (ORANGE) - Call your local BRP dealership |
| 13 |
504141900 |
Thrust Washer |
| 14 |
223563065 |
Allen Screw M6 x 30 |
| 15 |
232061414 |
Hex. Nut M6 This part replaces 228061045. |
| 16 |
420245370 |
WASHER - Call your local BRP dealership |
| 17 |
504141800 |
Washer |
| 18 |
414581300 |
Key |
| 19 |
504260700 |
Countershaft Extension |
| 20 |
504094000 |
Shim |
| 21 |
504108200 |
SHIM - Call your local BRP dealership |
| 22 |
517078700 |
WASHER - Call your local BRP dealership |
| 23 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 24 |
207086544 |
Hex. Screw M8 x 65 This part replaces 222086565. |
| 25 |
504149200 |
Countershaft |
| 26 |
507029000 |
WELDED DISK - Call your local BRP dealership |
| 27 |
501022300 |
Spacer |
| 28 |
501025000 |
FLANGE - Call your local BRP dealership |
| 29 |
405408300 |
BALL BEARING WITH COLLAR - Call your local BRP dealership |
| 30 |
732601156 |
Allen Screw M8 x 25 |
| 31 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 32 |
507021300 |
KEY - Call your local BRP dealership |
| 33 |
414928900 |
O'RING - Call your local BRP dealership |
| 34 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 35 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 36 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
