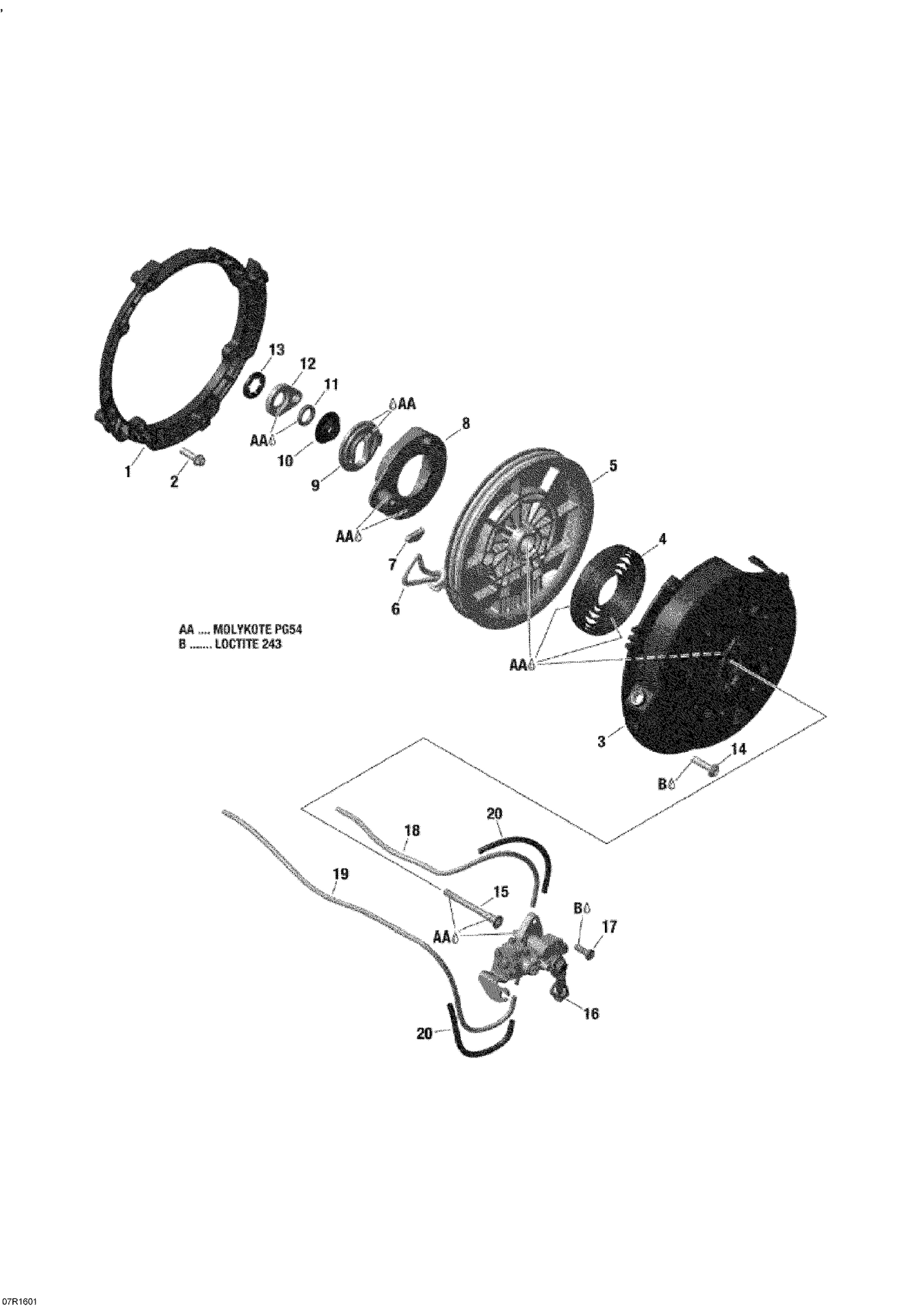

04- Rewind Starter And Oil Pump - 550F
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| AA | Not | Available As Spare Part - Molykote PG 54 |
| 1 | 420810955 | Connecting Flange |
| 3 | Not | Available As Spare Part - Starter Housing |
| 4 | 420939115 | Rewind Spring Ass'y |
| 5 | 420852480 | Rope Sheave |
| 6 | 412500200 | Starter Rope (2200mm) |
| 7 | 420852070 | Key Clamp |
| 8 | 420852296 | Pawl |
| 9 | 420852640 | Pawl Lock |
| 10 | 420847926 | Step Collar |
| 11 | 420250400 | O-Ring |
| 12 | 420852520 | Lock Lever |
| 13 | 420845560 | Locking Element |
| 15 | 420820090 | Oil Pump Shaft |
| 16 | 420892291 | Oil Pump Ass'y |
| 18 | 414413800 | Oil Line (300mm) |
| 19 | 414413800 | Oil Line (440mm) |
| 20 | 420960728 | Isolating Hose (120mm) |
