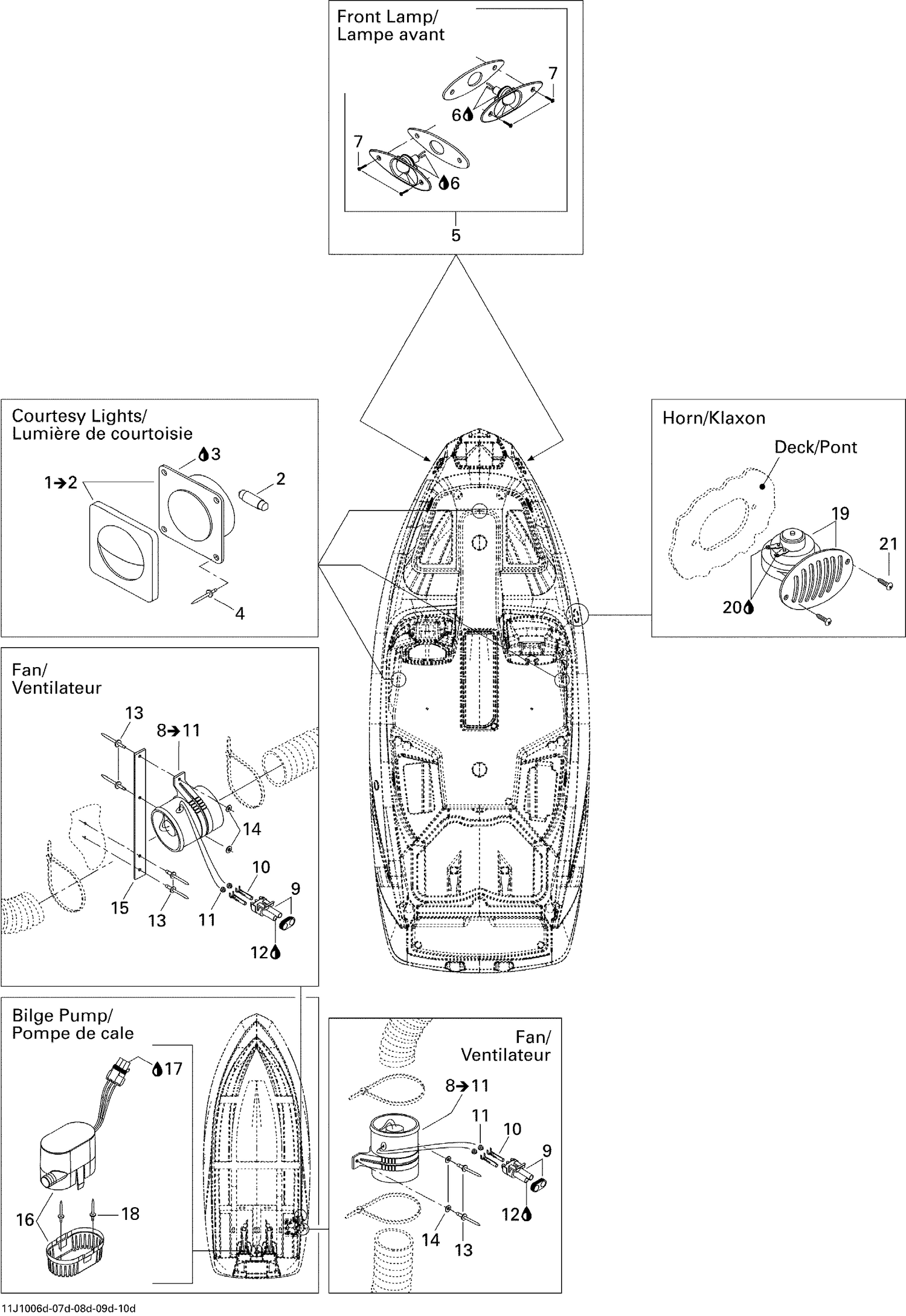

| Ref | Part Number | Description |
|---|
| 2 |
204470081 |
BULB - Call your local BRP dealership |
| 3 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 4 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 5 |
204470908 |
LATERAL LIGHT KIT - Call your local BRP dealership |
| 6 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 7 |
209941960 |
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership |
| 9 |
278000220 |
Male Connector, 2 Circuits |
| 10 |
278000223 |
Female Terminal |
| 11 |
278000218 |
Wire Seal |
| 12 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 13 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 14 |
234052600 |
Flat Washer 5 mm, Stainless |
| 15 |
204471389 |
BRACKET - Call your local BRP dealership |
| 16 |
204471432 |
Bilge Pump |
| 17 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 18 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 19 |
204470801 |
HORN - Call your local BRP dealership |
| 20 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
