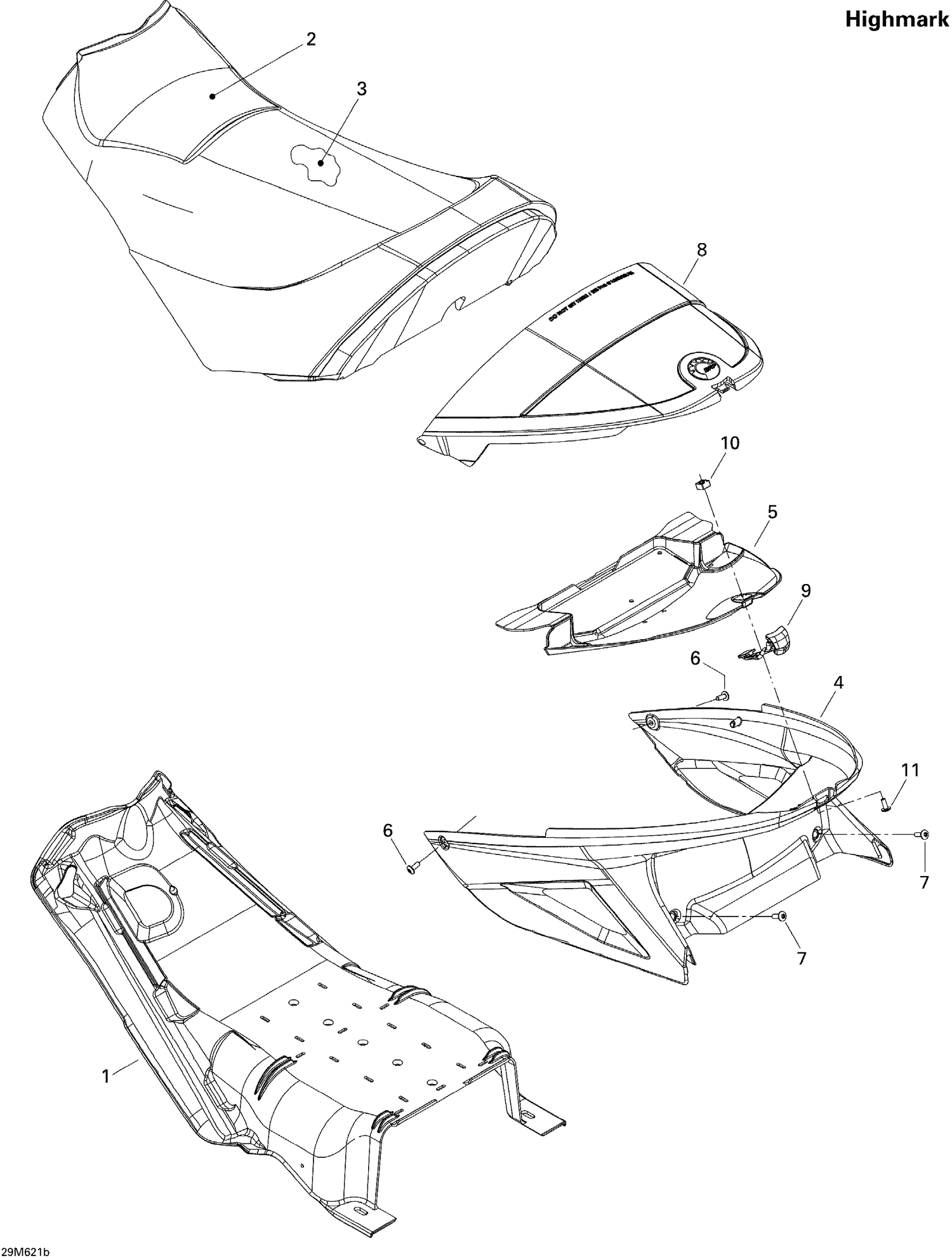

09- Seat HM
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510004440 | Seat Base |
| 2 | 510004399 | Seat Cover |
| 3 | 510004400 | Seat Foam |
| 5 | 510004620 | BOX LINER - Call your local BRP dealership |
| 6 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 7 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 8 | 510004671 | Cover |
| 9 | 510003917 | Bracket |
| 10 | 708000046 | NUT HOUSING ASS'Y M6 - Call your local BRP dealership |
