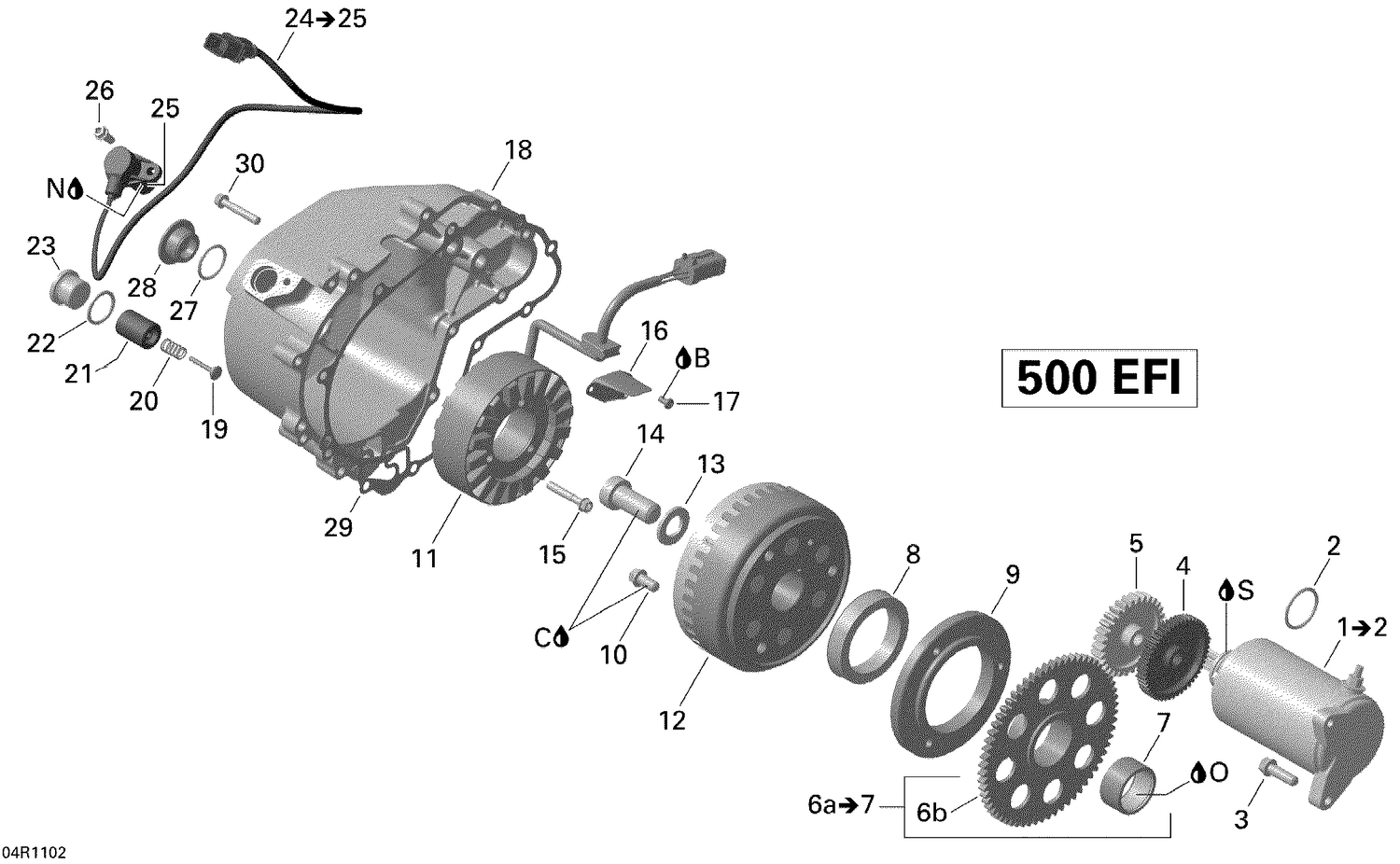

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| C |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| N |
293550030 |
Grease, Super Lube |
| O |
Not |
Available As Spare Part - Engine Oil |
| 2 |
420250140 |
O-Ring |
| 3 |
420440372 |
Torx Flange Screw M8 X 25 |
| 4 |
420634741 |
Starter Double Gear 11/49 T |
| 5 |
420634605 |
Starter Intermediate Gear, 30 Teeth |
| 6b |
Not |
Available As Spare Part - Free Wheel Gear |
| 7 |
Not |
Available As Spare Part - Bushing Needle |
| 8 |
420659111 |
Sprag Clutch This part replaces 420659112. |
| 9 |
420659263 |
Sparg Clutch Housing This part replaces 420659261. |
| 10 |
420440852 |
Torx Flange Screw M8 X 16 |
| 11 |
420685920 |
Stator Plate, 420W This part replaces 420296907. |
| 12 |
420296906 |
Flywheel, 420W |
| 13 |
420627270 |
Shim |
| 14 |
420241545 |
Socket Head Screw M16 X 35 |
| 15 |
420641258 |
Torx Flange Screw M6 X 35 |
| 16 |
420251889 |
Interior Cable Support Ass'y This part replaces 420251880. |
| 17 |
420240196 |
Phillips Screw M4 X 8 This part replaces 420240195. |
| 18 |
420212225 |
Ignition Cover This part replaces 420611132. |
| 19 |
420656370 |
Pressure Relief Valve |
| 20 |
420939481 |
Spring This part replaces 420939480. |
| 21 |
420256487 |
Housing This part replaces 420256486. |
| 22 |
420650465 |
Gasket Ring |
| 23 |
420640271 |
Plug Screw This part replaces 420640270. |
| 25 |
420431580 |
O-Ring |
| 26 |
420641048 |
Torx Flange Screw M6 X 16 |
| 27 |
420430782 |
O-Ring |
| 28 |
420241633 |
Plug Screw M24X 1.5 This part replaces 420241630. |
| 29 |
420651203 |
Gasket This part replaces 420651200. |
| 30 |
420641258 |
Torx Flange Screw M6 X 35 |
