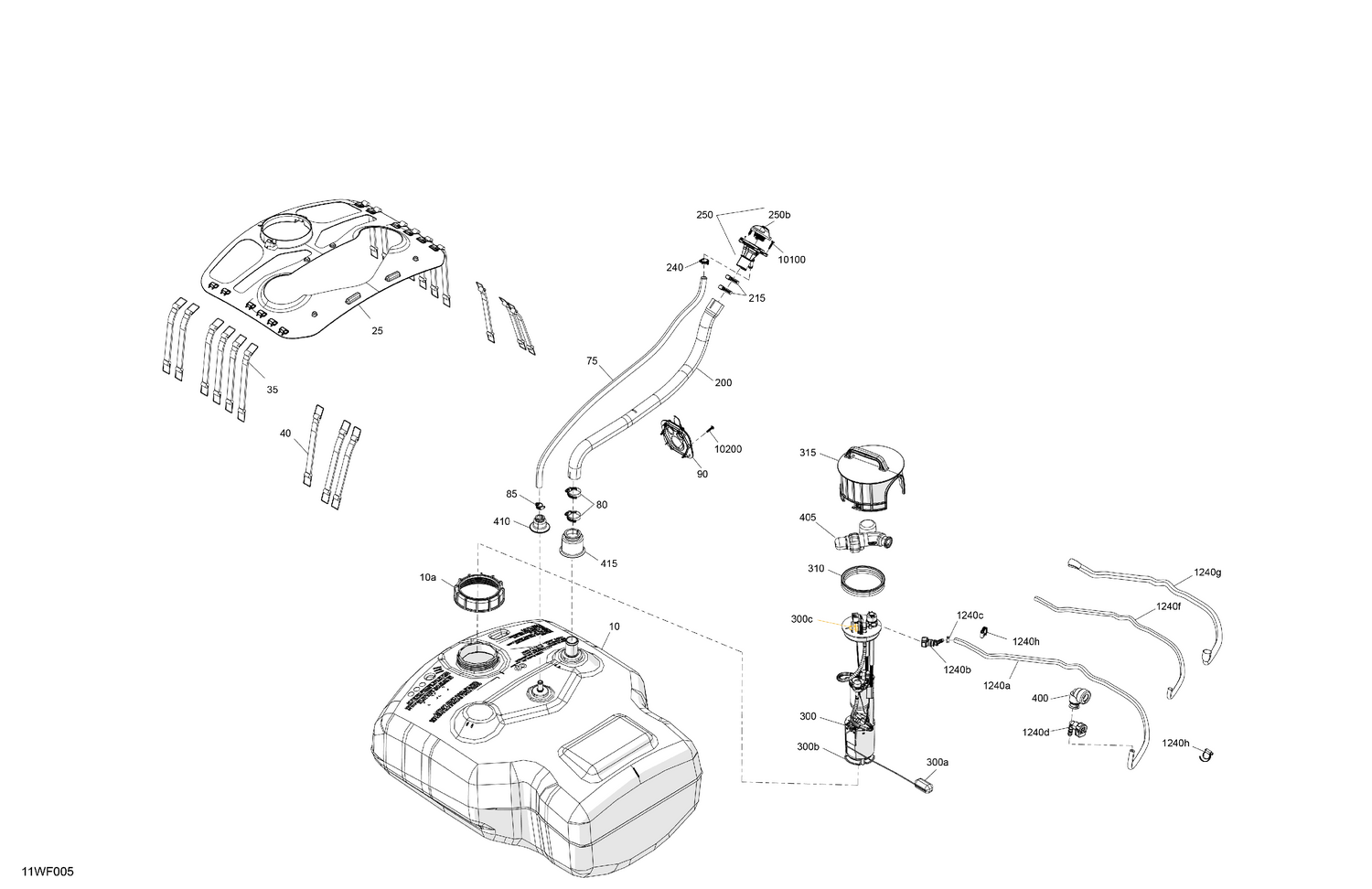

02- ENGINE - Fuel
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 250100062 | Special Nut M130 |
| 25 | 275501154 | Fuel Tank Support |
| 35 | 293850087 | Fuel Tank Strap |
| 40 | 293850087 | Fuel Tank Strap |
| 75 | 275501138 | Vent Hose This part replaces 219704468. |
| 80 | 293650036 | Tridon Clamp |
| 85 | 293650019 | Tridon Gear Clamp This part replaces 293650290. |
| 90 | 275501230 | Fitting Through Hull Ass'y |
| 200 | 275501178 | Filler Neck Hose |
| 215 | 293650036 | Tridon Clamp |
| 240 | 293650019 | Tridon Gear Clamp This part replaces 293650290. |
| 250b | 275501114 | Fuel Tank Cap Ass'y |
| 300a | 275501276 | Fuel Level Sensor |
| 300b | 275501162 | Fuel Filter |
| 300c | 275501164 | Pressure Sensor |
| 310 | 293250514 | Pump Gasket |
| 315 | 273000416 | Fuel Pump Cover |
| 400 | 275501063 | Connector Guard |
| 405 | 275501219 | Guard Connector |
| 410 | 275501070 | Hose Guard |
| 415 | 275501220 | Hose Guard |
| 1240a | 219704622 | Hose 7,94Mm Id 3000Mm Long |
| 1240b | 709000627 | Quick Fitting 45° Ass'y |
| 1240c | 293650053 | Crimp Clamp |
| 1240d | 275500921 | Quick Disconnect |
| 1240f | 276000568 | Braided Sheath 12,7 Mm Id |
| 1240g | 276000569 | Tubing |
| 1240h | 293650284 | Gear Clamp |
| 10100 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
