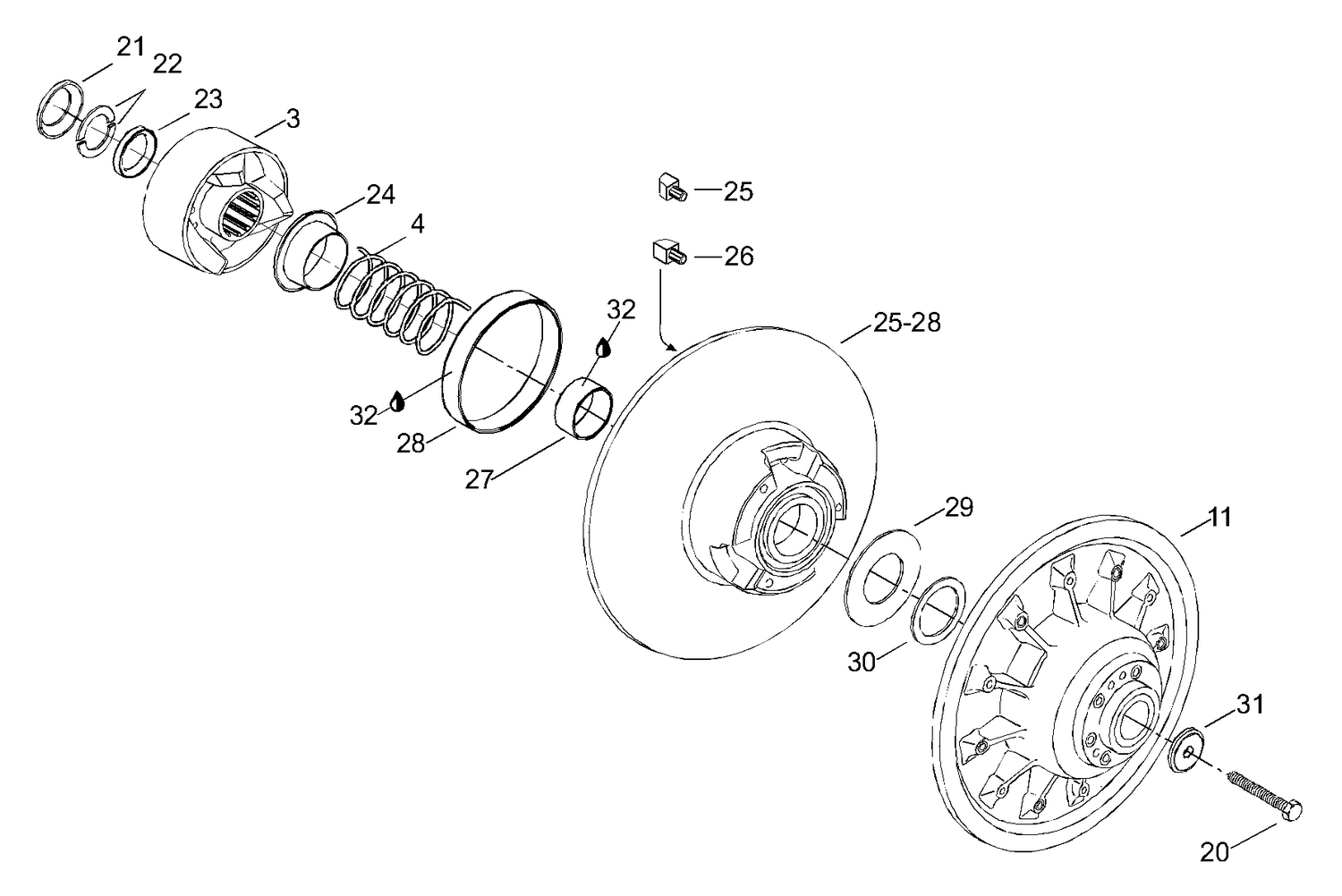

| Ref | Part Number | Description |
|---|
| 3 |
417124700 |
Cam 47-44 |
| 4 |
415092800 |
YELLOW SPRING - Call your local BRP dealership |
| 11 |
417126401 |
FIXED FLANGE ASS'Y - Call your local BRP dealership |
| 20 |
40012 |
HEX, SCREW M8 X 80 - Call your local BRP dealership |
| 21 |
417300055 |
Protector |
| 22 |
371911000 |
HALF KEY - Call your local BRP dealership |
| 23 |
417126368 |
Spacer |
| 24 |
415006000 |
GUARD - Call your local BRP dealership |
| 25 |
417126373 |
Front cam shoe slide, R |
| 26 |
417126374 |
Front cam shoe slide, B |
| 27 |
415011200 |
BUSHING - Call your local BRP dealership |
| 28 |
414876600 |
GARLOCK BUSHING - Call your local BRP dealership |
| 29 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 30 |
504112300 |
SHIM - Call your local BRP dealership |
| 31 |
517302322 |
Washer |
| 32 |
413703100 |
Loctite 609, 10ml |
