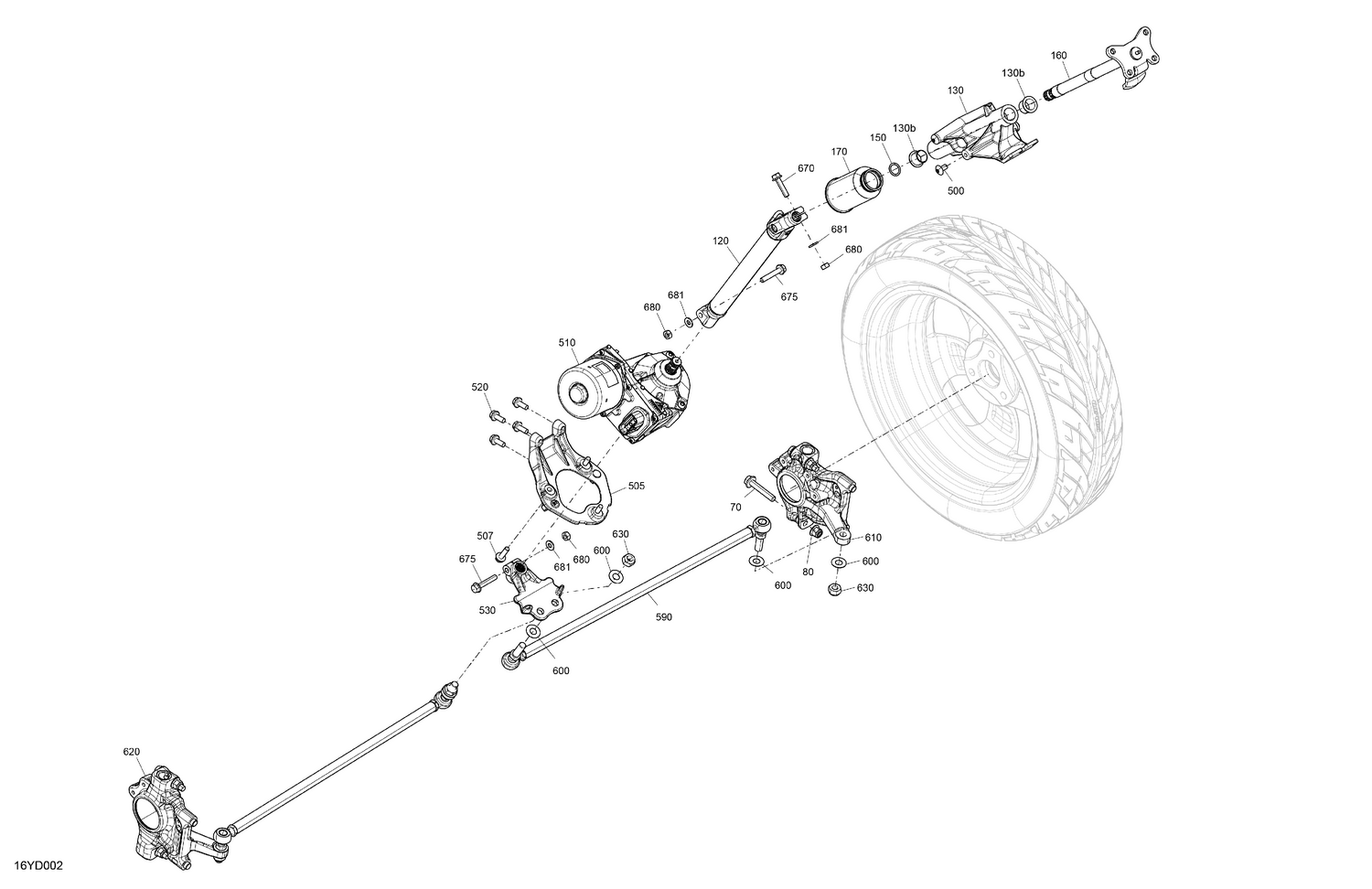

03- Mechanic - Steering Column
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 70 | 207605554 | Hex. Flange Screw M10 X 55 |
| 80 | 233201466 | Flange Elastic Nut M10 |
| 120 | 709402421 | Steering Column |
| 130b | 709402725 | Steering Bushing |
| 150 | 709000089 | O-Ring |
| 160 | 709401397 | Upper Steering Column |
| 170 | 709400790 | Bellows |
| 500 | 250000751 | Torx Screw M8 X 16 |
| 505 | 709401771 | DPS Support |
| 507 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 510 | 709402842 | Power Steering Ass'y |
| 520 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 530 | 709401760 | Pitman Arm |
| 590 | 709401820 | Tie Rod Ass'y |
| 600 | 706200281 | Hardened Washer |
| 610 | 709402236 | RH Knuckle Assembly |
| 620 | 709402233 | LH Knuckle Assembly |
| 630 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 670 | 250001021 | Hex. Flange Screw M8 X 35 |
| 675 | 250001133 | Hex. Flange Screw M8 X 45 Scotch Grip |
| 680 | 232081417 | Hex. Nut M8 |
