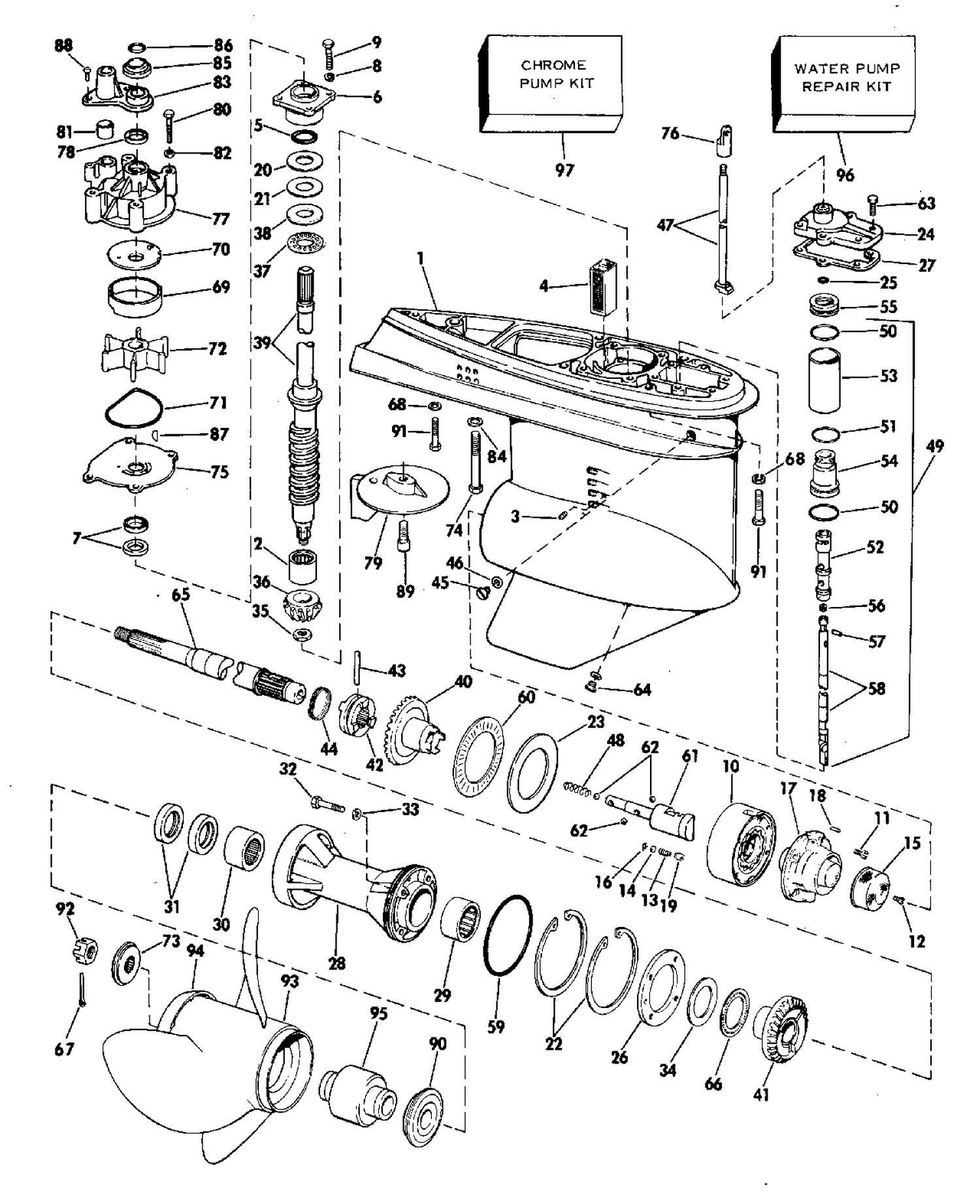

| Ref | Part Number | Description |
|---|
| 1 |
0982111 |
GEARCASE & BEARING ASSY This part replaces 0388614. |
| 10 |
0385515 |
OIL POUMP ASSEMBLY |
| 19 |
0322879 |
GUIDE,Ball valve |
| 20 |
0314742 |
SHIM BEARING HOUSING |
| 23 |
0317165 |
THRUST WASHER, Fwd |
| 24 |
0387384 |
COVER & SEAL ASSY |
| 27 |
0321162 |
GASKET,Solenoid cover |
| 28 |
0397087 |
BEARING HOUSING SEAL ASSY. This part replaces 0384523. |
| 32 |
0316563 |
SCREW |
| 33 |
0317178 |
O RING |
| 36 |
0317169 |
PINION |
| 37 |
0317796 |
PINION |
| 39 |
0387935 |
DRIVESHAFT ASSY |
| 39 |
5000777 |
Kit Ay This part replaces 0387934. |
| 40 |
0385513 |
GEAR & BUSHING ASSY,140 hp |
| 40 |
0385514 |
GEAR & BUSHING ASSY,85,115 hp |
| 41 |
0317825 |
GEAR, Reverse |
| 47 |
0318138 |
SHIFT ROD |
| 47 |
0320735 |
SHIFT ROD |
| 49 |
0386800 |
SHIFT ASSY,Gearcase |
| 52 |
0320299 |
VALVE, Shift assy |
| 53 |
0320139 |
CYLINDER, Shift assy |
| 54 |
0320137 |
PISTON, Shift assy |
| 55 |
0320138 |
CAP, Pis 1 |
| 57 |
0320176 |
PIN, Push rod |
| 58 |
0387952 |
PUSH ROD ASSY |
| 61 |
0387561 |
SHIFT ROD & BEARING ASSY |
| 63 |
0335020 |
SCREW, Bracket to block This part replaces 0318139. |
| 65 |
0436888 |
PROPELLER SHAFT ASSY. This part replaces 0387818. |
| 68 |
0307708 |
RONDELLE GROWER |
| 69 |
0322894 |
LINER, Impeller |
| 70 |
0321176 |
PALTE,Liner,impeller |
| 71 |
0321120 |
SEAL |
| 72 |
0385528 |
IMPELLER ASSEMBLY |
| 74 |
0313697 |
SCR,Grc to hsg.long |
| 75 |
0435027 |
CUP & PLATE This part replaces 0321188. |
| 76 |
0321300 |
CONNECTOR, Shift rod |
| 77 |
0387385 |
IMPELLER HOUSING ASSY |
| 79 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0316981. |
| 80 |
0323626 |
SCREW This part replaces 0302873. |
| 82 |
0329241 |
RONDELLE This part replaces 0305981. |
| 84 |
0306314 |
L'WASHER,Scr,long |
| 89 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 91 |
0320741 |
SCREW, Gearcase to exhaust hsg |
| 93 |
0382761 |
PROPELLER ,14 x 11 |
| 93 |
0382765 |
PROPELLER 13 X 19 |
| 93 |
0382766 |
PROP. 12-3/4 X 21 (STD) |
| 93 |
0384136 |
PROPELLER 12-3/4 X 23 |
| 93 |
0384139 |
PROP., 13 - 3/8 x 17 - SST |
| 93 |
0384142 |
PROP., 13 x 19 - SST |
| 93 |
0384144 |
PROP., 13-3/4 x 15 - sst |
| 93 |
0384703 |
PROP, 12-3/4 x 23 sst cupped |
| 93 |
0388884 |
PROP., 13- 1/2 x 23 - sst-ss |
| 93 |
0389512 |
PRO, 12-3/4 x 21 sst cupped This part replaces 0384702. |
| 93 |
0765181 |
PROPELLER This part replaces 0382762. |
| 93 |
0765182 |
PROPELLER - W Models This part replaces 0382763. |
| 93 |
0765183 |
PROPELLER, WDEL Models This part replaces 0382764. |
| 96 |
0388644 |
WATER PUMP REPAIR KIT |
| 0388613 |
0388613 |
GEARCASE ASSY,Comp.,85,115 hp |
| 0388635 |
0388635 |
GEARCASE ASSY,Complete,140 hp |
| 0388636 |
0388636 |
GEARCASE ASSY,Complete,140 hp |
