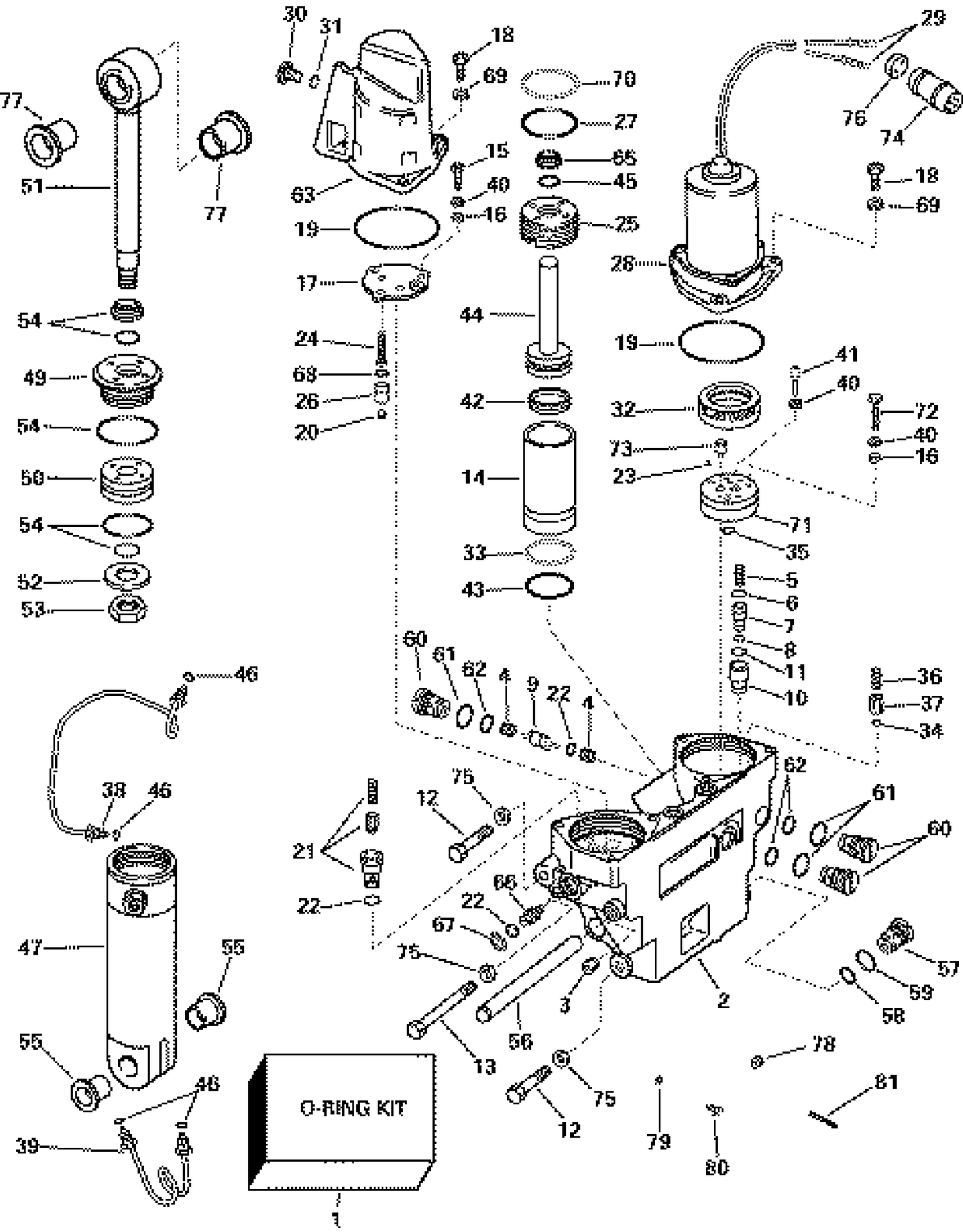

POWER TRIM/TILT HYDRAULIC ASSEMBLY - 65 MODELS - Z
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 0324677 | JOINT TORIQUE, mamelon, vidange inférieure |
| 8 | 0324678 | JOINT TORIQUE Galet de came de papillon |
| 40 | 0360252 | WASHER This part replaces 0306311. |
| 55 | 0321246 | BUSHING, Shock absorber, lower |
| 72 | 0321219 | VIS, vis de fixation |
| 75 | 0307708 | RONDELLE GROWER |
| 0176602 | POWER | TRIM/TILT KIT 0176602 |
| 0390002 | ***ROD | ASSY. COMPLETE 0390002 |
| 0437664 | *HYDRAULIC | ASSY., Trim/tilt 0437664 |
