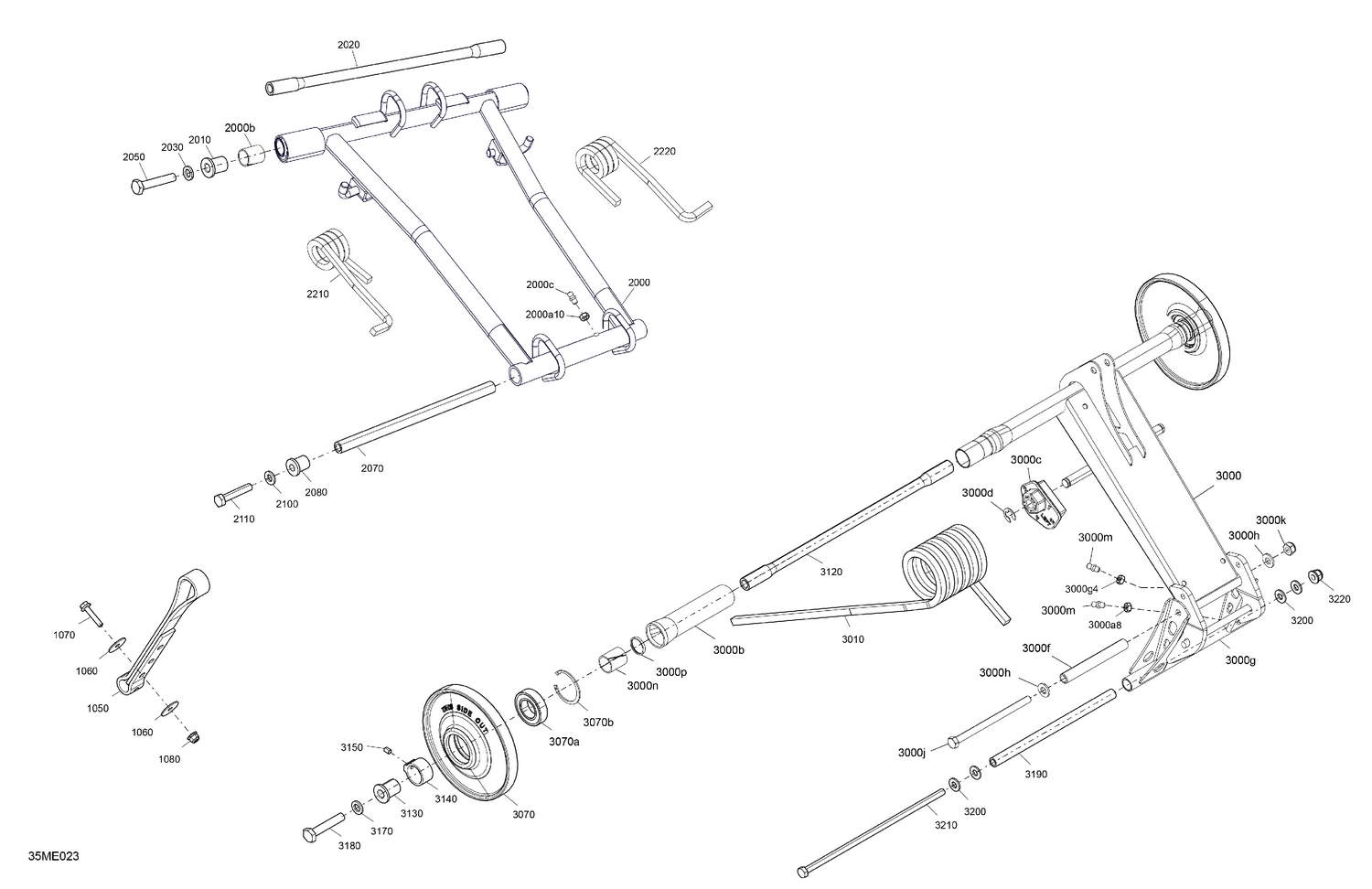

05- Suspension - Rear - Upper Section
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1050 | 503196914 | Strap Stopper |
| 1060 | 234082670 | Stainless Steel Flat Washer |
| 1070 | 207683044 | Hex. Flange Screw M8 X 30 |
| 1080 | 233281466 | Elastic Flange Nut M8 |
| 2000a10 | 232061404 | Hexagonal Nut M6 |
| 2000b | 503191556 | Extended Bushing |
| 2000c | 408200700 | Grease Fitting |
| 2010 | 503191262 | Bushing |
| 2020 | 503191215 | Upper Shaft |
| 2030 | 250200143 | Flat Washer |
| 2050 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 2070 | 503191279 | Lower Shaft |
| 2080 | 503189324 | Bushing |
| 2100 | 503192496 | Washer |
| 2110 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 2210 | 503195606 | LH Front Torsion Spring |
| 2220 | 503195607 | RH Front Torsion Spring |
| 3000a8 | 232061404 | Hexagonal Nut M6 |
| 3000b | 572080700 | Bushing |
| 3000c | 503191565 | LH Cam Adjuster |
| 3000d | 293370013 | E-Circlip |
| 3000f | 503144300 | Upper Axle, Pivot Arm |
| 3000g4 | 232061404 | Hexagonal Nut M6 |
| 3000h | 503192494 | Washer |
| 3000j | 250001236 | Hex Screw M8 X 125 |
| 3000k | 232581414 | Hex. Elastic Stop Nut M8 |
| 3000m | 408200700 | Grease Fitting |
| 3000n | 503191556 | Extended Bushing |
| 3000p | 503191651 | Washer |
| 3010 | 503192271 | Black, LH Spring Square |
| 3070a | 503193548 | Ball Bearing |
| 3070b | 415129780 | Retaining Ring |
| 3120 | 503191215 | Upper Shaft |
| 3130 | 503191262 | Bushing |
| 3140 | 503194366 | Retaining Ring |
| 3150 | 206260844 | Socket Set Screw M6 X 8 |
| 3170 | 250200143 | Flat Washer |
| 3180 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 3190 | 503189156 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
