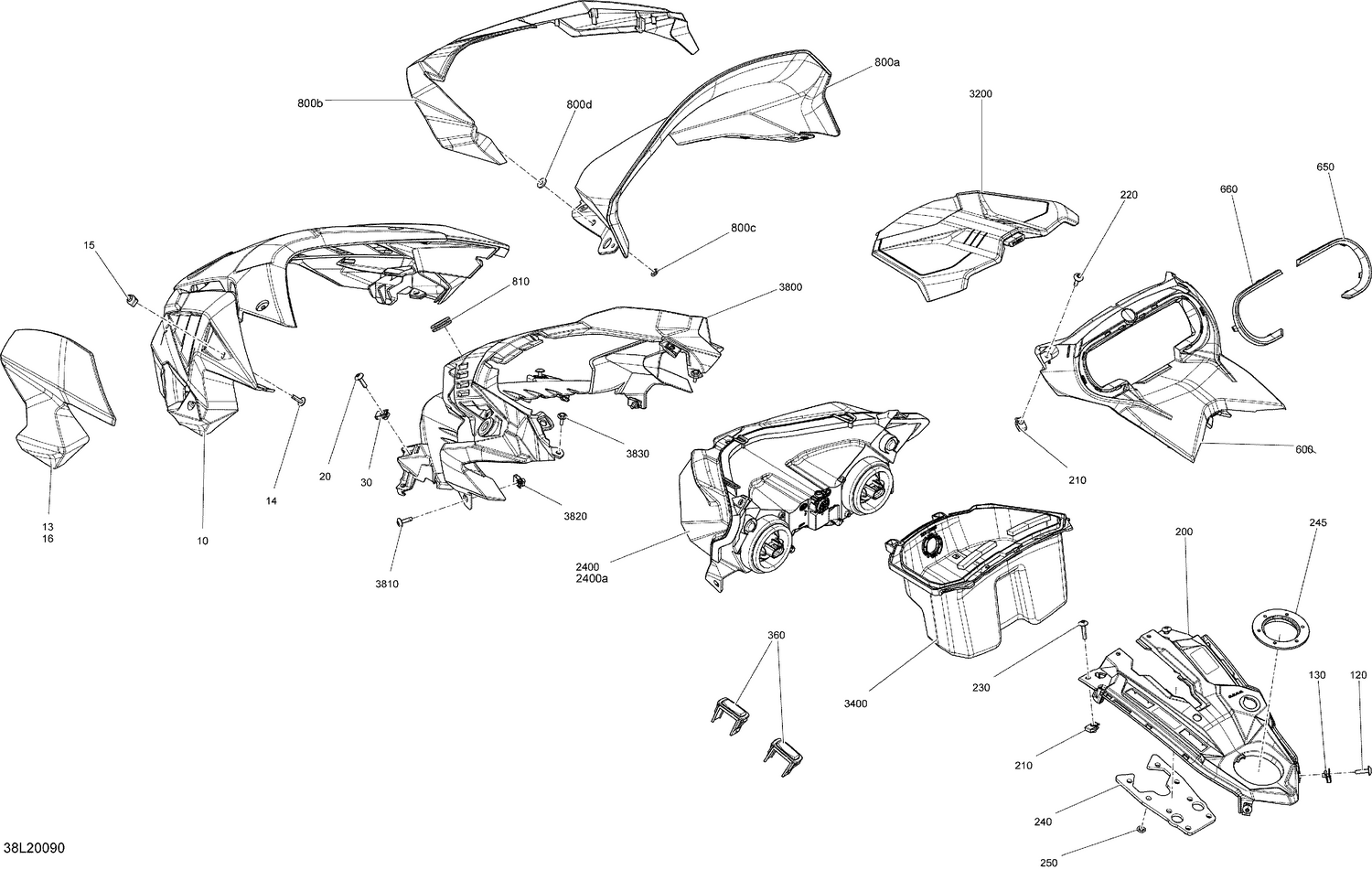

09- Body - Hood Section - RE - Front Part
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517306115 | Middle Hood |
| 13 | 517307086 | RH Front Hood |
| 14 | 250000528 | Torx Screw M5 X 20 |
| 15 | 250000958 | Panel Nut M5 X 0.8 |
| 16 | 517307087 | LH Front Hood |
| 20 | 250000528 | Torx Screw M5 X 20 |
| 30 | 250000958 | Panel Nut M5 X 0.8 |
| 120 | 250000528 | Torx Screw M5 X 20 |
| 130 | 250000958 | Panel Nut M5 X 0.8 |
| 200 | 517306712 | Console Rear |
| 210 | 250000958 | Panel Nut M5 X 0.8 |
| 220 | 250000528 | Torx Screw M5 X 20 |
| 230 | 250000587 | Torx Screw M5 X 26 |
| 240 | 517306398 | Foam Console |
| 245 | 517304518 | Console Nut |
| 250 | 732610072 | Push Nut |
| 360 | 517306808 | Switch Hole Cap |
| 600 | 517306537 | Gauge Support |
| 650 | 705012351 | Deep Black, RH Trim Gauge |
| 660 | 705012349 | Deep Black, LH Trim Gauge |
| 800a | 517306423 | Windshield 360 |
| 800b | 517306187 | Wind Deflector |
| 800c | 732610072 | Push Nut |
| 800d | 250200024 | Rubber Washer 5 mm |
| 810 | 517303756 | Grommet |
| 2400a | 415130081 | Bulb |
| 3200 | 517307562 | Cover Ass'y This part replaces 517305871. |
| 3400 | 517306058 | Trunk Ass'y |
| 3800 | 517306824 | Black, Head Lamp Bezel |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
