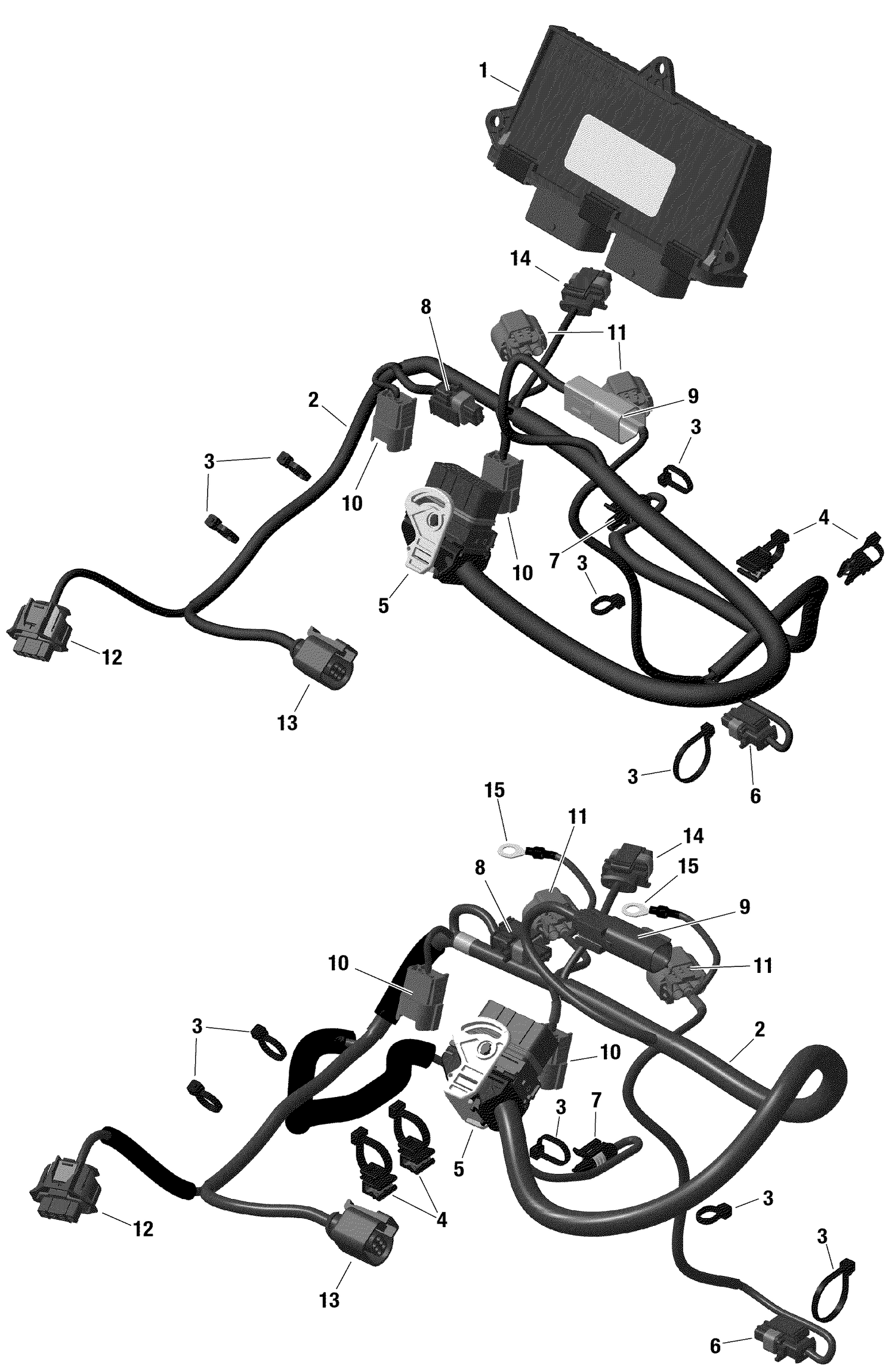

01- Rotax - Engine Harness And Electronic Module
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420666064 | Electronic Module Programmable This part replaces 420464429. |
| 2 | 420864347 | Wiring Harness |
| 3 | 420866714 | Tie Rap |
| 4 | 420951655 | Tie-Rap With Mount |
| 5 | XXX | Not Available As Spare Parts |
| 6 | 278001005 | Male Housing, 2 Circuits |
| 7 | 278001012 | Male Housing, 1 Circuit |
| 8 | 278001005 | Male Housing, 2 Circuits |
| 9 | 278000635 | Female Housing, 4 Circuits |
| 10 | XXX | Not Available As Spare Parts |
| 11 | 710002516 | Connector 3 Positions |
| 12 | 515176410 | Male Connector |
| 13 | 515177406 | Female Housing |
| 14 | 278003197 | Housing |
