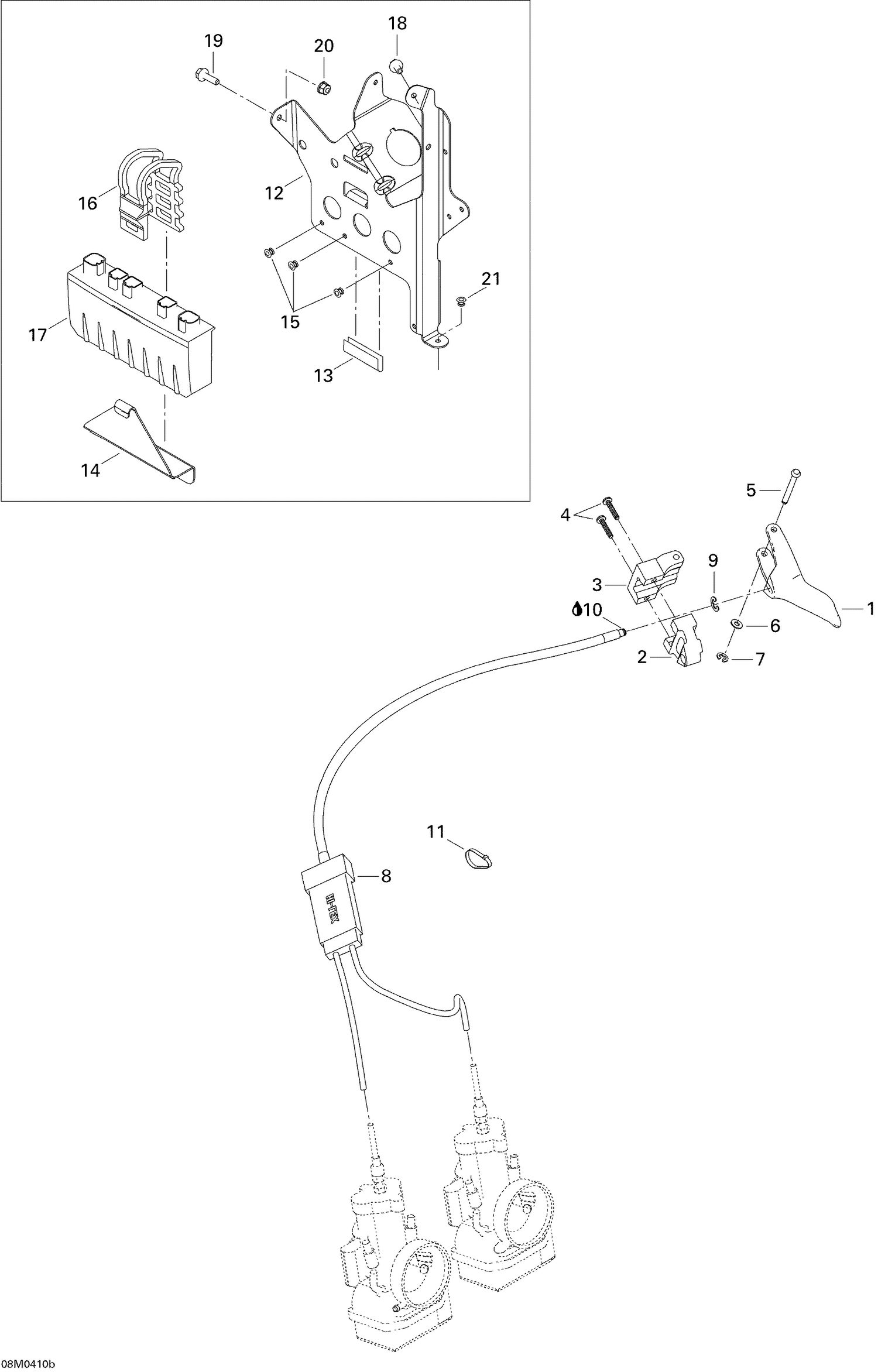

01- MPEM, DPM And Throttle
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512060214 | Handle Ass'y This part replaces 512059767. |
| 2 | 512059537 | Lower Housing |
| 3 | 512059538 | UPPER HOUSING - Call your local BRP dealership |
| 4 | 205052544 | Socket Screw M5 X 25 |
| 5 | 414438700 | Lever Pin |
| 6 | 234051600 | Flat Washer M5, Stainless This part replaces 414438900. |
| 7 | 414439000 | Circlip |
| 8 | 512059742 | THROTTLE CABLE - Call your local BRP dealership |
| 9 | 414274500 | Circlip |
| 10 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 11 | 293750008 | Tie Wrap 368 mm |
| 12 | 512059502 | Mpem Support |
| 13 | 219704353 | Was 271000110 Protection Trim |
| 14 | 518322928 | Plate |
| 15 | 390402400 | Pop Rivet 3/16" |
| 16 | 570069700 | LATCH - Call your local BRP dealership |
| 18 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 19 | 207662544 | Hex. Flange Screw M6 X 25 |
| 20 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
