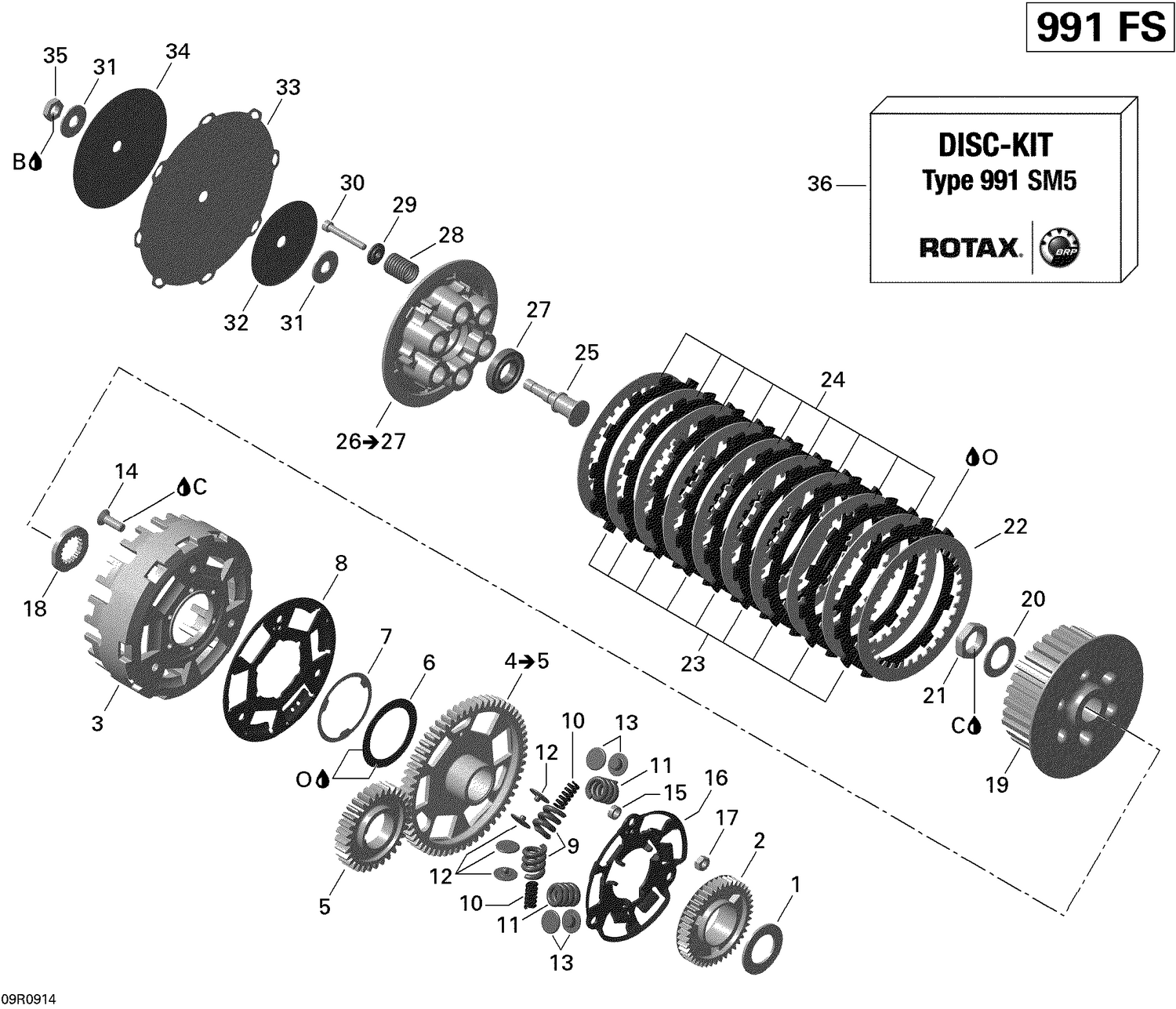

05- Clutch
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| C | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| 1 | 420627260 | Thrust Washer |
| 2 | 420634478 | Oil Gear Pump, 42 Teeth This part replaces 420634476. |
| 3 | 420259535 | Clutch Drum |
| 5 | Not | Available As Spare Part - Drive Gear |
| 6 | 420239390 | Disc Spring |
| 7 | 420627910 | THRUST WASHER - Call your local BRP dealership |
| 8 | 420685850 | Primary Drive Ass'y This part replaces 420259588. |
| 9 | 420238135 | Compression Spring |
| 10 | 420238140 | Internal Compression Spring |
| 11 | 420238130 | Compression Spring |
| 12 | 420247015 | Spring Retainer This part replaces 420247972. |
| 13 | 420247017 | Spring Retainer This part replaces 420247976. |
| 14 | 420941835 | Flat Head Screw, M8 X 25 |
| 15 | 420247614 | Spacer Sleeve |
| 16 | 420259581 | Outer Support Plate This part replaces 420259583. |
| 17 | 232081414 | Hex. Nut M8 |
| 18 | 420627225 | Thrust Washer This part replaces 420627220. |
| 19 | 420259521 | Hub Clutch This part replaces 420259520. |
| 20 | 420245830 | Spring Washer |
| 21 | 420242012 | Hex. Nut M24 This part replaces 420242950. |
| 25 | 420659791 | Pin |
| 27 | 420632135 | Ball Bearing |
| 30 | 420640315 | Screw M6 X 45 This part replaces 420241825. |
| 31 | 420227180 | Thrust Washer |
| 32 | 420627230 | Disc Support |
| 33 | 420260892 | Diaphragm This part replaces 420260891. |
| 34 | 420627281 | Disc Plate |
| 35 | 420642059 | Hexagonal Nut M12 X 1 This part replaces 420642055. |
| 36 | 420281930 | Disc Kit, Type 991 SM5 |
