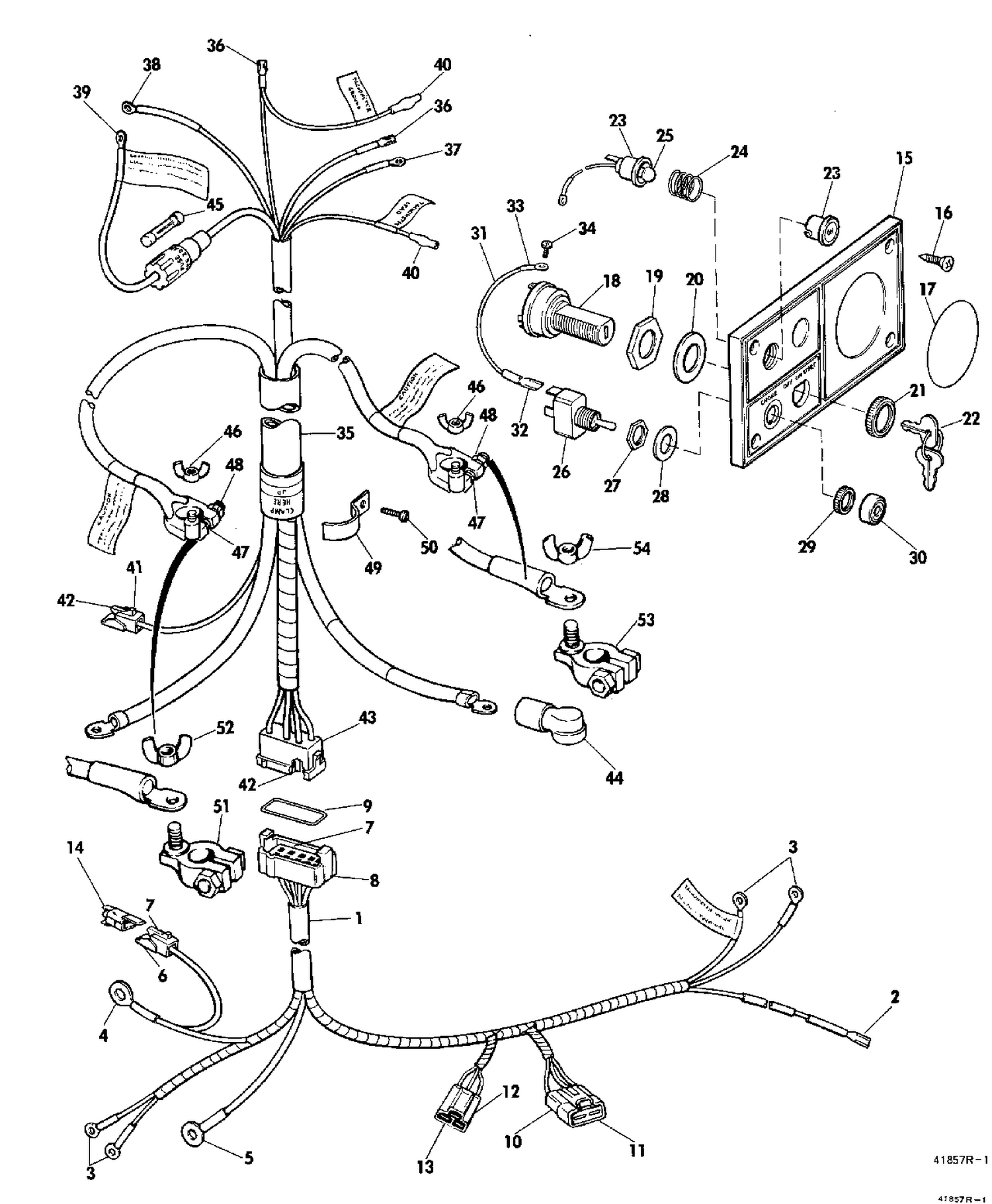

| Ref | Part Number | Description |
|---|
| 1 |
0382558 |
CABLE ASSY., Motor |
| 8 |
0311471 |
CONNECTOR |
| 9 |
0312467 |
O RING |
| 11 |
0825886 |
TERMINAL This part replaces 0510541. |
| 15 |
0312694 |
DASH PANEL |
| 16 |
0312691 |
SCREW, Cash pannel |
| 17 |
0312696 |
DECAL, Dash panel |
| 18 |
0386545 |
IGNITION SWITCH & KEY ASSY This part replaces 0378238. |
| 22 |
KEY,Ignition |
Ref: 23 0378321 INDICATING LIGHT, Ignition "on" 0378321 |
| 26 |
0975257 |
SWITCH ASSEMBLLY |
| 28 |
0900696 |
WASHER |
| 31 |
0381626 |
LEAD ASSEMBLY, Ignition to choke switch |
| 35 |
0382560 |
CABLE ASSY., Instruments |
| 43 |
0311472 |
CONNECTOR |
| 51 |
0385407 |
BATTERY TERMINAL KIT This part replaces 0277708. |
| 53 |
0385407 |
BATTERY TERMINAL KIT This part replaces 0277709. |
| 0382590 |
0382590 |
INSTRUMENTS & CABLE ASSY. |
