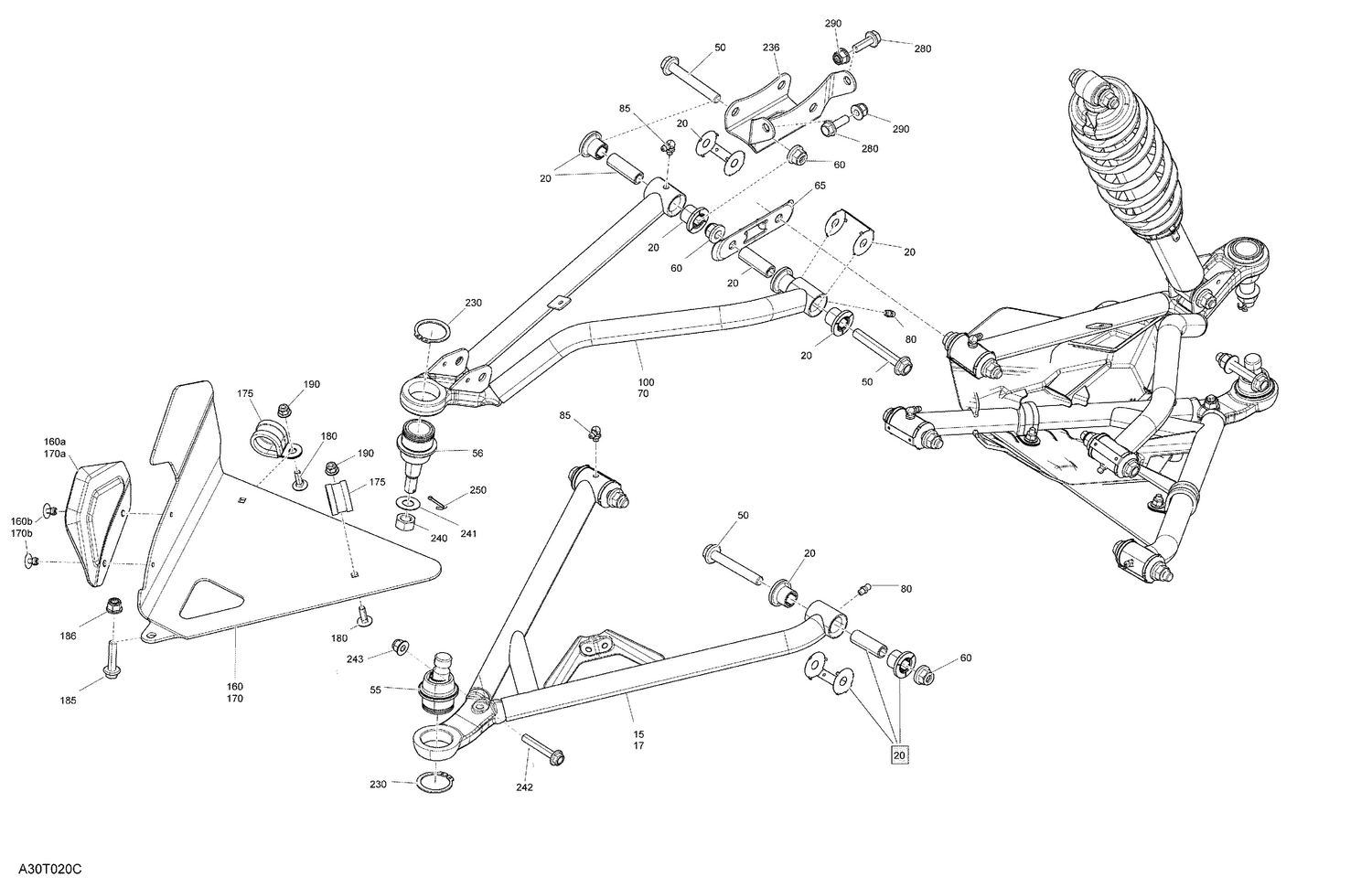

05- Suspension - Front - Mossy Oak Edition
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 706204639 | LH Lower Suspension Arm This part replaces 706202869. |
| 17 | 706202870 | Black, RH Lower Arm |
| 20 | 703500875 | Suspension Arm Bushing Kit |
| 50 | 207607046 | Hex. Flange Screw M10 X 70 |
| 55 | 706202045 | Ball Joint |
| 56 | 706202044 | Ball Joint |
| 60 | 233201436 | Hex. Flange Elastic Nut M10 |
| 65 | 706200998 | Front Suspension Cross Plate |
| 70 | 706204642 | RH Upper Suspension Arm This part replaces 706201877. |
| 80 | 408200700 | Grease Fitting |
| 85 | 293550056 | Grease Fitting 90° |
| 100 | 706204641 | LH Upper Suspension Arm This part replaces 706201876. |
| 160 | 715001667 | A Arm Protector Kit |
| 160a | 706201186 | RH PROTECTOR - Call your local BRP dealership |
| 160b | 293150104 | Pop Rivet 3/16" |
| 170a | 706201185 | LH PROTECTOR - Call your local BRP dealership |
| 170b | 293150104 | Pop Rivet 3/16" |
| 175 | 709200036 | Hose Anchor |
| 180 | 207762044 | Carriage Bolt M6 X 20 |
| 185 | 207683544 | Hex. Flange Screw M8 X 35 |
| 186 | 233281414 | Hex. Flange Elastic Nut M8 |
| 190 | 233261494 | Hex. Flange Elastic Nut M6 |
| 230 | 293370035 | Circlip |
| 236 | 705203247 | Upper Front Holder |
| 240 | 250100099 | Nut M12 |
| 241 | 706200281 | Hardened Washer This part replaces 250200086. |
| 242 | 207606044 | Hex. Flange Screw M10 X 60 |
| 243 | 233201434 | Hex. Flange Elastic Nut M10 |
| 250 | 211400017 | Cotter Pin |
| 280 | 207682534 | Hex. Flange Screw M8 X 25 |
