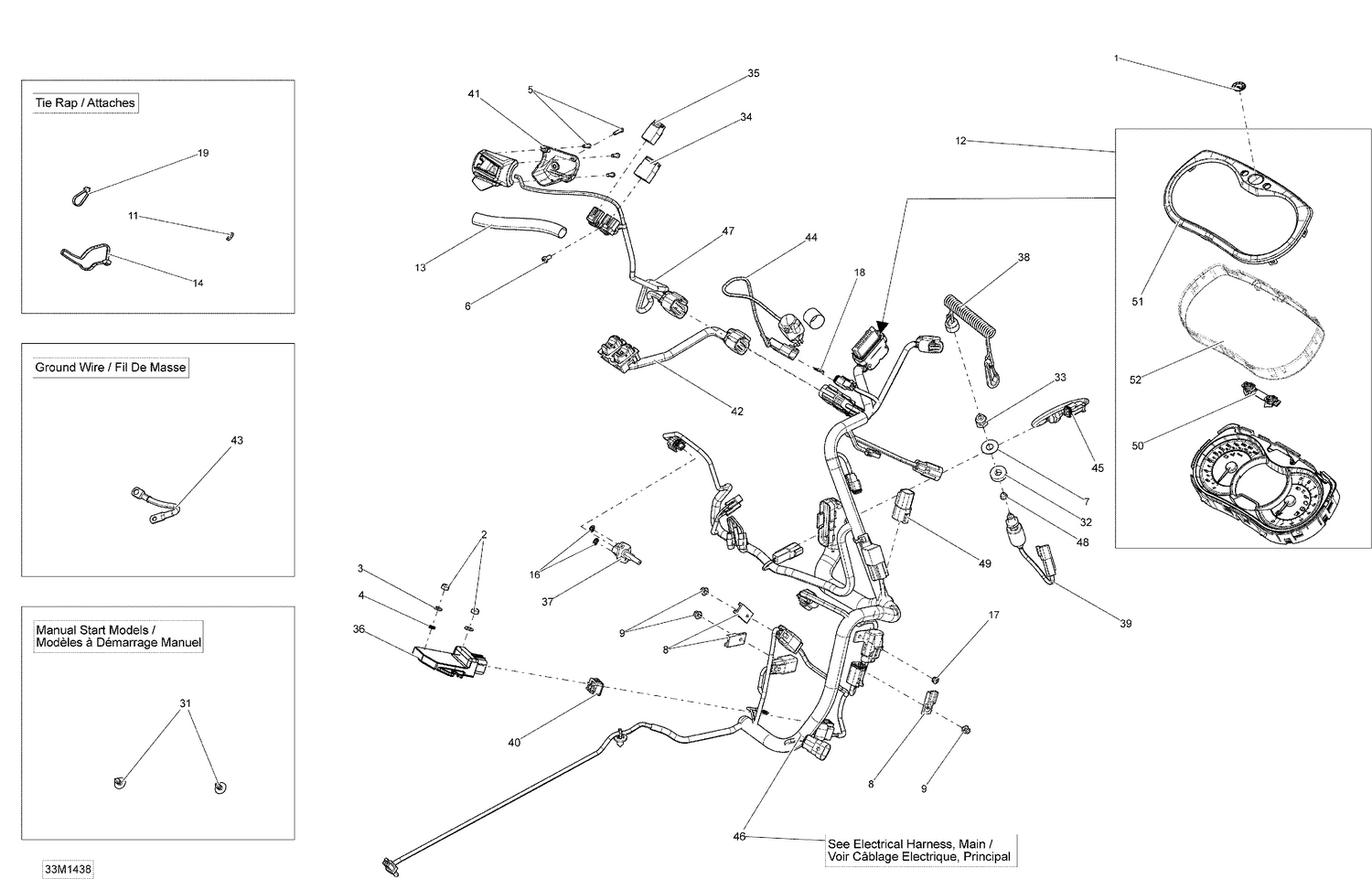

10- Electrical System _33M1438
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516006224 | BRP Logo 20MM x 2MM This part replaces 219902677. |
| 2 | 232561414 | Elastic Stop Nut M6 |
| 3 | 234061410 | Flat Washer 6 mm |
| 4 | 234461608 | External Serrated Lock Washer 6 mm |
| 5 | 250000671 | Torx Screw |
| 6 | 250000690 | Pan Screw Forming, 7500C |
| 7 | 250200032 | Washer |
| 8 | 270000141 | Clip |
| 9 | 293150037 | Avdel Rivet 3/16" |
| 11 | 293750001 | Tie Wrap 94 mm |
| 12 | 515177910 | Speedometer This part replaces 515177659. |
| 13 | 219704418 | PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership |
| 14 | 293750008 | Tie Wrap 368 mm |
| 16 | 389804300 | Push Nut |
| 17 | 390402200 | Pop Rivet 3/16" |
| 18 | 409207500 | Male Lock, 2 Circuits |
| 19 | 414115200 | Tie-Rap 180 mm |
| 31 | 414644300 | Black, Dart |
| 32 | 510004418 | WASHER - Call your local BRP dealership |
| 33 | 515145900 | Switch Nut |
| 34 | 515175662 | Male Terminal Housing, 6 Circuits |
| 35 | 515175846 | Male Terminal Housing, 4 Circuits |
| 36 | 515176364 | Voltage Regulator |
| 37 | 515176366 | Air Temperature Sensor |
| 38 | 515178292 | Cap Ass'Y This part replaces 515176462. |
| 39 | 515175653 | Brake Switch |
| 40 | 515176681 | Lock |
| 41 | 515177149 | LH Switch Housing Plate |
| 42 | 515177154 | Double Switch Module |
| 43 | 515177289 | Ground Wire |
| 44 | 515177454 | KILL SWITCH - Call your local BRP dealership |
| 45 | 420664509 | Temperature Sensor This part replaces 515177471. |
| 46 | 515177567 | Main Harness |
| 47 | 515178305 | LH Switch Housing This part replaces 515177615. |
| 48 | 570151100 | Plunger Cap |
| 49 | 710003006 | Housing |
| 50 | 415129355 | Speedometer Button |
| 51 | 415129348 | Gauge Ring |
| 52 | 415129349 | Lens |
