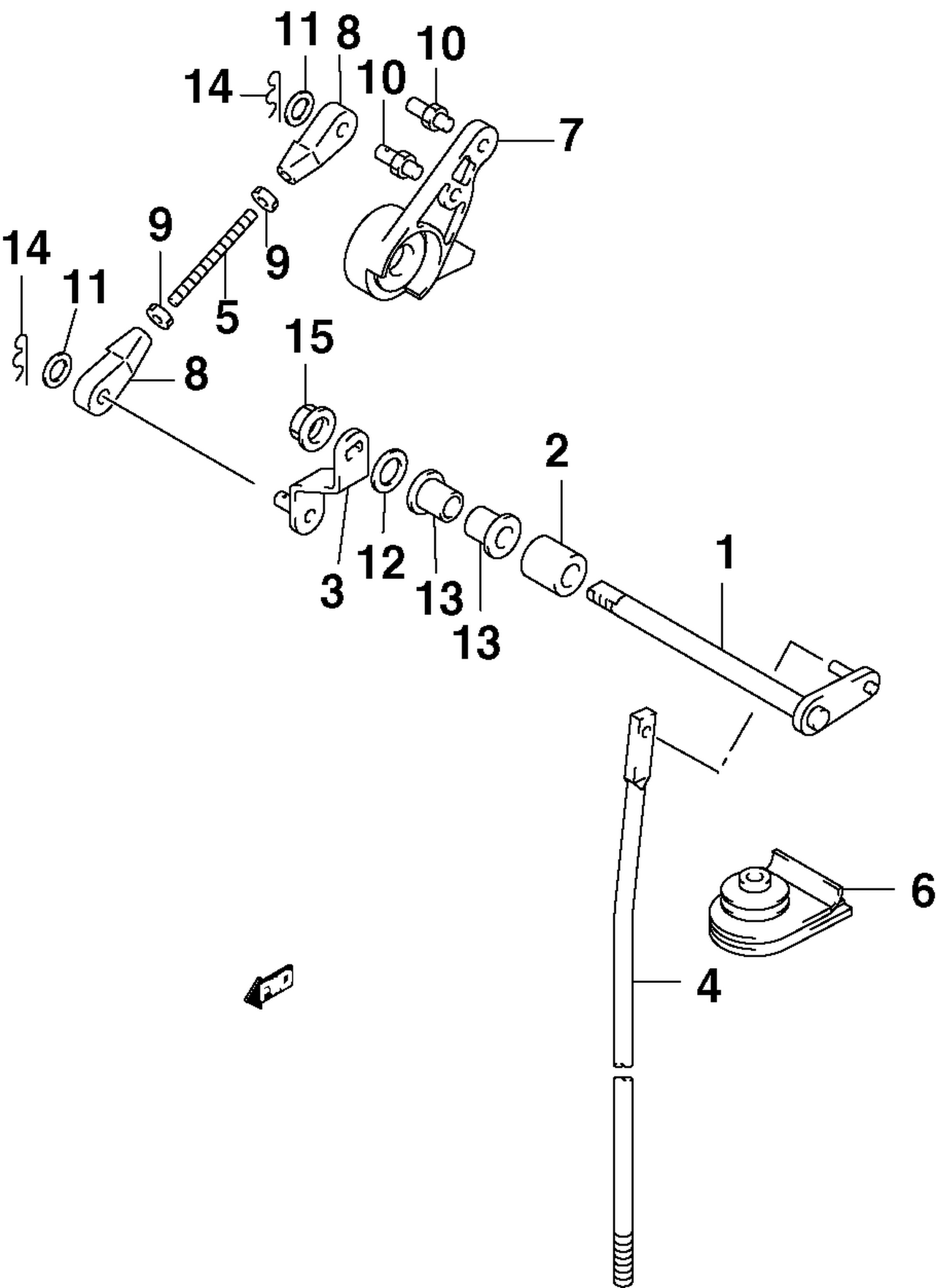

SHIFT LEVER
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5030764 | SHAFT, Clutch |
| 2 | 5030765 | SPACER, Clutch shaft |
| 3 | 5030766 | ARM, Clutch shaft |
| 4 | 5030767 | ROD, Clutch |
| 5 | 5030768 | LINK, Clutch lever |
| 6 | 5030769 | BOOT, Clutch rod |
| 7 | 5030770 | LEVER, Clutch control |
| 8 | *5032155 | CONN,THROTTLE LIMT This part replaces 5032465. |
| 10 | *5032289 | PIN,CONNECTOR |
| 11 | *5031080 | WASHER,CONNECTOR |
| 12 | 5030057 | WASHER |
| 13 | 5030553 | BUSHING |
| 14 | *5030575 | CLIP |
