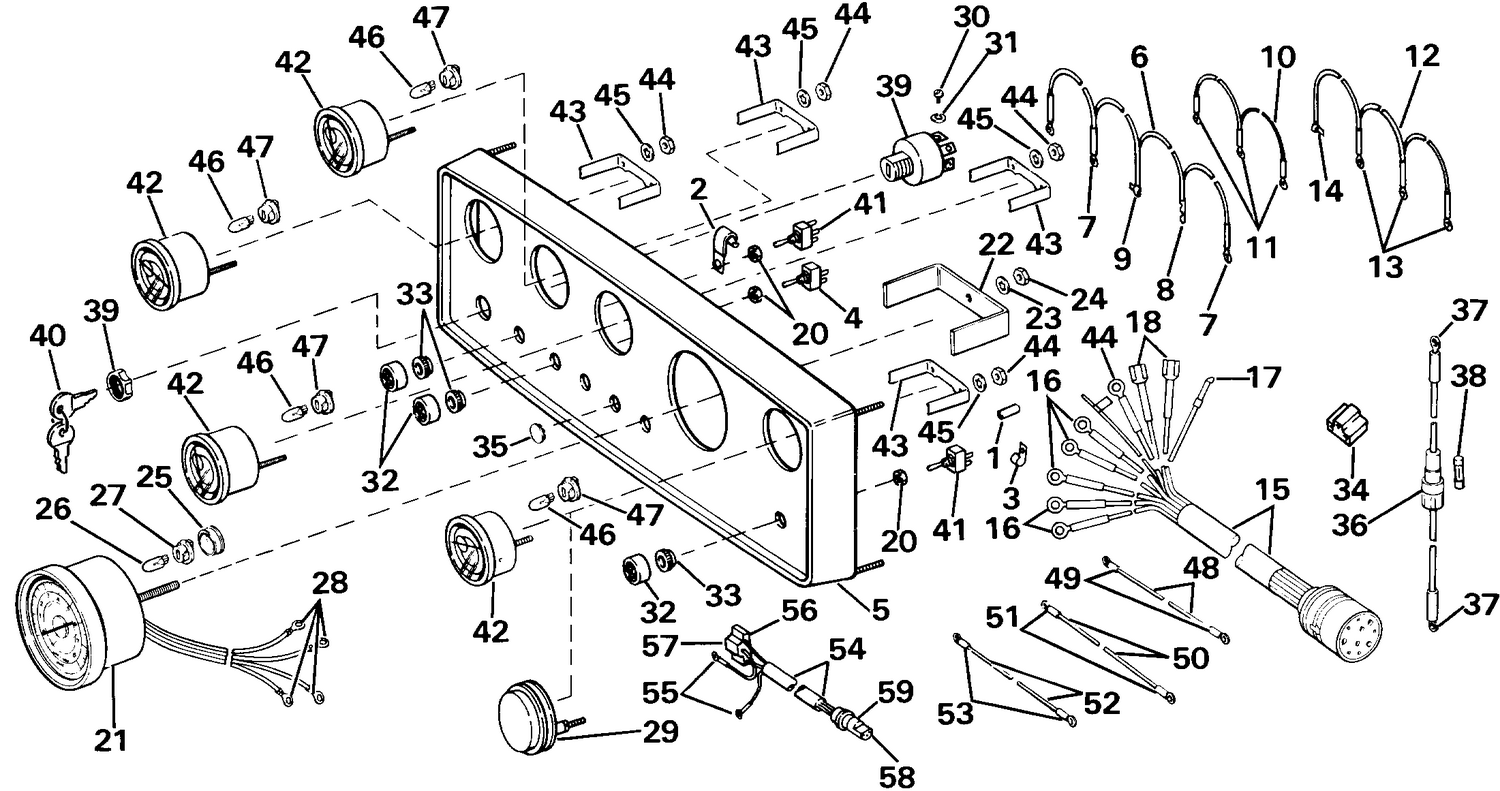

INSTRUMENT PANEL ASSEMBLY
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0123437 | SPLICE, Conductor |
| 2 | 0123383 | CLAMP, Cable to head |
| 3 | 0123384 | CLAMP |
| 4 | 0172437 | INSTRUMENT LIGHT SWITCH |
| 5 | 0173527 | INSTRUMENT PANEL AND STUD |
| 6 | 0173529 | LEAD ASSEMBLY PURPLE |
| 10 | 0173531 | LEAD ASSEMBLY, Black |
| 12 | 0173532 | LEAD ASSEMBLY, Blue |
| 15 | 0981877 | CABLE ASSEMBLY |
| 21 | 0174202 | TACH ASSY., Black bezel, 7000 This part replaces 0174048. |
| 22 | 0122558 | BRACKET |
| 29 | 0173563 | BEZEL AND STUD |
| 35 | 0316337 | PLUG |
| 36 | 0378334 | FUSE HOLDER & LEAD ASSEMBLY |
| 40 | KEY, | Ignition switch |
| 42 | 0175472 | WATER TEMP. GAUGE KIT This part replaces 0983467. |
| 42 | 0175485 | OIL PRESSURE GAUGE KIT This part replaces 0981299. |
| 42 | 0981297 | AMMETER GAUGE |
| 42 | 0983466 | TRIM GAUGE |
| 43 | 0909693 | BRACKET |
| 48 | 0173530 | LEAD ASSEMBLY |
| 50 | 0173533 | LEAD ASSEMBLY |
| 52 | 0173534 | LEAD ASSEMBLY |
| 54 | 0981448 | CABLE ASSEMBLY |
