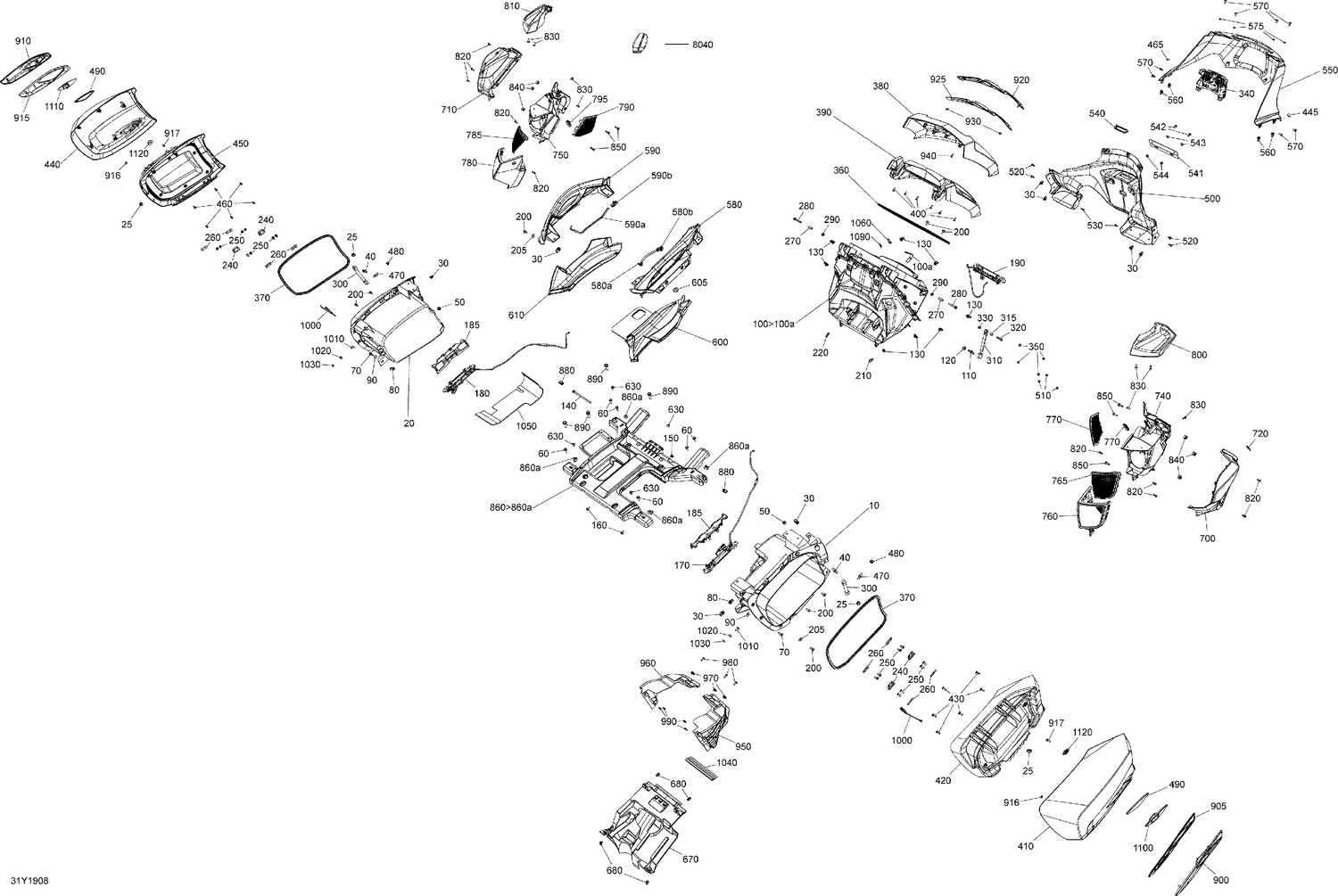

| Ref | Part Number | Description |
|---|
| 10 |
708301016 |
Cargo Box Inner LH |
| 20 |
708301017 |
Cargo Box Inner RH |
| 30 |
250100198 |
Panel Nut M6 X 1.0 |
| 40 |
250300016 |
Ball Head Stud |
| 50 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 60 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 70 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 80 |
250100198 |
Panel Nut M6 X 1.0 |
| 90 |
224061201 |
Flat Washer |
| 110 |
250300039 |
Ball Head Stud |
| 120 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 130 |
250100198 |
Panel Nut M6 X 1.0 |
| 140 |
230663084 |
Hex. Flange Screw M6 X 130 |
| 150 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 160 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 170 |
708301640 |
Latch Ass'y LH |
| 180 |
708301641 |
Latch Ass'y RH |
| 185 |
708300514 |
Latch Protector |
| 190 |
708301642 |
Center Latch |
| 200 |
250000881 |
Torx Truss M8 X 16 |
| 205 |
250200164 |
Flat washer M6 |
| 210 |
414115200 |
Tie-Rap 180 mm |
| 220 |
414115200 |
Tie-Rap 180 mm |
| 240 |
708300006 |
Hinge |
| 250 |
250000881 |
Torx Truss M8 X 16 |
| 260 |
708300129 |
Back Plate Support |
| 270 |
708300394 |
Spacer |
| 280 |
207664544 |
Hex. Flange Screw M6 X 45 |
| 290 |
233261434 |
Flange Elastic Nut M6 |
| 300 |
708300011 |
Gaz Shock |
| 310 |
708300383 |
Gaz Shock |
| 315 |
708300384 |
Spacer |
| 320 |
250000843 |
Torx Truss Screw M6 X 30 |
| 330 |
232361493 |
Domed Nut M6 |
| 340 |
708302620 |
Main Control (WO lock cylinder) |
| 350 |
250000349 |
Torx Truss Screw M6 X 10 |
| 360a |
293830188 |
Seal, 1PC = 3M |
| 370a |
293830188 |
Seal, 1PC = 3M |
| 380 |
708300700 |
Vegas White Pearl, Rear Cover Trunk |
| 380 |
708301806 |
Asphalt Gray, Cover Trunk Rear |
| 380 |
708302496 |
Oxford Blue Metallic, Rear Trunk Cover |
| 380 |
708302812 |
Phoenix Orange, Rear Trunk Cover |
| 390 |
708300678 |
Inner Cover |
| 400 |
250000720 |
Torx Screw K50 X 16 |
| 420 |
708301023 |
Cover Interior LH |
| 430 |
250000720 |
Torx Screw K50 X 16 |
| 445 |
518327441 |
Lateral Console Foam |
| 450 |
708301022 |
Cover Interior RH |
| 460 |
250000720 |
Torx Screw K50 X 16 |
| 465 |
518327441 |
Lateral Console Foam |
| 470 |
250300016 |
Ball Head Stud |
| 480 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 490 |
705002423 |
Amber, Lateral Reflector |
| 500 |
708302277 |
Fender Rear |
| 510 |
250000349 |
Torx Truss Screw M6 X 10 |
| 520 |
250000881 |
Torx Truss M8 X 16 |
| 530 |
250000720 |
Torx Screw K50 X 16 |
| 540 |
708300177 |
License Plate Light Support |
| 550 |
708301558 |
Bare, Rear Panel This part replaces 708301564. |
| 550 |
708301811 |
Asphalt Gray, Rear Panel |
| 550 |
708302504 |
Oxford Blue Metallic, Rear Panel |
| 550 |
708302819 |
Phoenix Orange, Rear Panel |
| 560 |
250100198 |
Panel Nut M6 X 1.0 |
| 570 |
250000881 |
Torx Truss M8 X 16 |
| 575 |
705003207 |
Plastic Washer |
| 580a |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 580b |
710000667 |
Male Housing, 2 Circuits |
| 590a |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 590b |
710000667 |
Male Housing, 2 Circuits |
| 600 |
708300209 |
LH Handle Pannel |
| 605 |
708300405 |
Cap |
| 610 |
708300027 |
RH Handle Pannel |
| 630 |
250000804 |
Torx Screw M6 X 12 |
| 670 |
708300028 |
Under Tail Rear Wheel Cover |
| 680 |
293150230 |
Tuflok Plastic Rivet |
| 700 |
708300708 |
Vegas White Pearl, LH Arm Cover |
| 700 |
708301813 |
Asphalt Gray, LH Arm Cover |
| 700 |
708302507 |
Oxford Blue Metallic, LH Arm Cover |
| 700 |
708302820 |
Arm Cover LH, Phoenix Orange B-424 |
| 710 |
708300709 |
Vegas White Pearl, RH Arm Cover |
| 710 |
708301814 |
Asphalt Gray, RH Arm Cover |
| 710 |
708302509 |
TRIM REST ARM RH B-406 - Call your local BRP dealership |
| 710 |
708302821 |
Arm Cover RH, Phoenix Orange B-424 |
| 720 |
708300716 |
Vegas White Pearl, LH Antenna Cap |
| 720 |
708301812 |
Asphalt Gray, LH Antenna Cap |
| 720 |
708302511 |
Oxford Blue Metallic, LH Antenna Cap |
| 720 |
708302822 |
Antenna Cap LH, Phoenix Orange B-424 |
| 740 |
708301555 |
Sound Box LH |
| 750 |
708301556 |
Sound Box RH |
| 760 |
708302609 |
LH Grille Sup. |
| 765 |
708302567 |
LH Rear Grille |
| 770 |
708302610 |
Central LH Rear Grille |
| 775 |
293720115 |
Grommet |
| 780 |
708302611 |
RH Grille Sup. |
| 785 |
708302568 |
RH Rear Grille |
| 790 |
708302612 |
Central RH Rear Grille |
| 795 |
293720115 |
Grommet |
| 800 |
708000614 |
Deep Black, LH Arm Rest |
| 810 |
708000615 |
Deep Black, RH Arm Rest |
| 820 |
250000720 |
Torx Screw K50 X 16 |
| 830 |
250000720 |
Torx Screw K50 X 16 |
| 840 |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 850 |
250000880 |
Torx-Truss M/S M6 X 25 |
| 860a |
269500725 |
M6 Nut Housing Ass'y |
| 880 |
250100198 |
Panel Nut M6 X 1.0 |
| 890 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 905 |
708300650 |
Moulding Trim LH |
| 915 |
708300651 |
RH Moulding Trim |
| 916 |
250100163 |
Pressure Nut |
| 917 |
250000720 |
Torx Screw K50 X 16 |
| 920 |
708301073 |
Trim Trunk Rear, Chrome |
| 920 |
708302825 |
Trim Trunk Rear, Dark |
| 925 |
708300652 |
Central Moulding Trim |
| 930 |
250100163 |
Pressure Nut |
| 940 |
250000720 |
Torx Screw K50 X 16 |
| 950 |
708300327 |
LH Inner Fender |
| 960 |
708300328 |
RH Inner Fender |
| 970 |
250100198 |
Panel Nut M6 X 1.0 |
| 980 |
250000350 |
Torx Truss Screw M6 X 20 |
| 990 |
250000720 |
Torx Screw K50 X 16 |
| 1000 |
708300385 |
Retainer Cable |
| 1010 |
250000881 |
Torx Truss M8 X 16 |
| 1020 |
211200055 |
Flat Washer, Stainless/Neoprene |
| 1030 |
232061414 |
Hex. Nut M6 |
| 1040 |
708300397 |
Seal |
| 1050 |
705004173 |
Heat Shield |
| 1060 |
293750002 |
Tie Wrap 142 mm |
| 1090 |
293750040 |
Tie-rap Mount (square - self-adhsive) |
