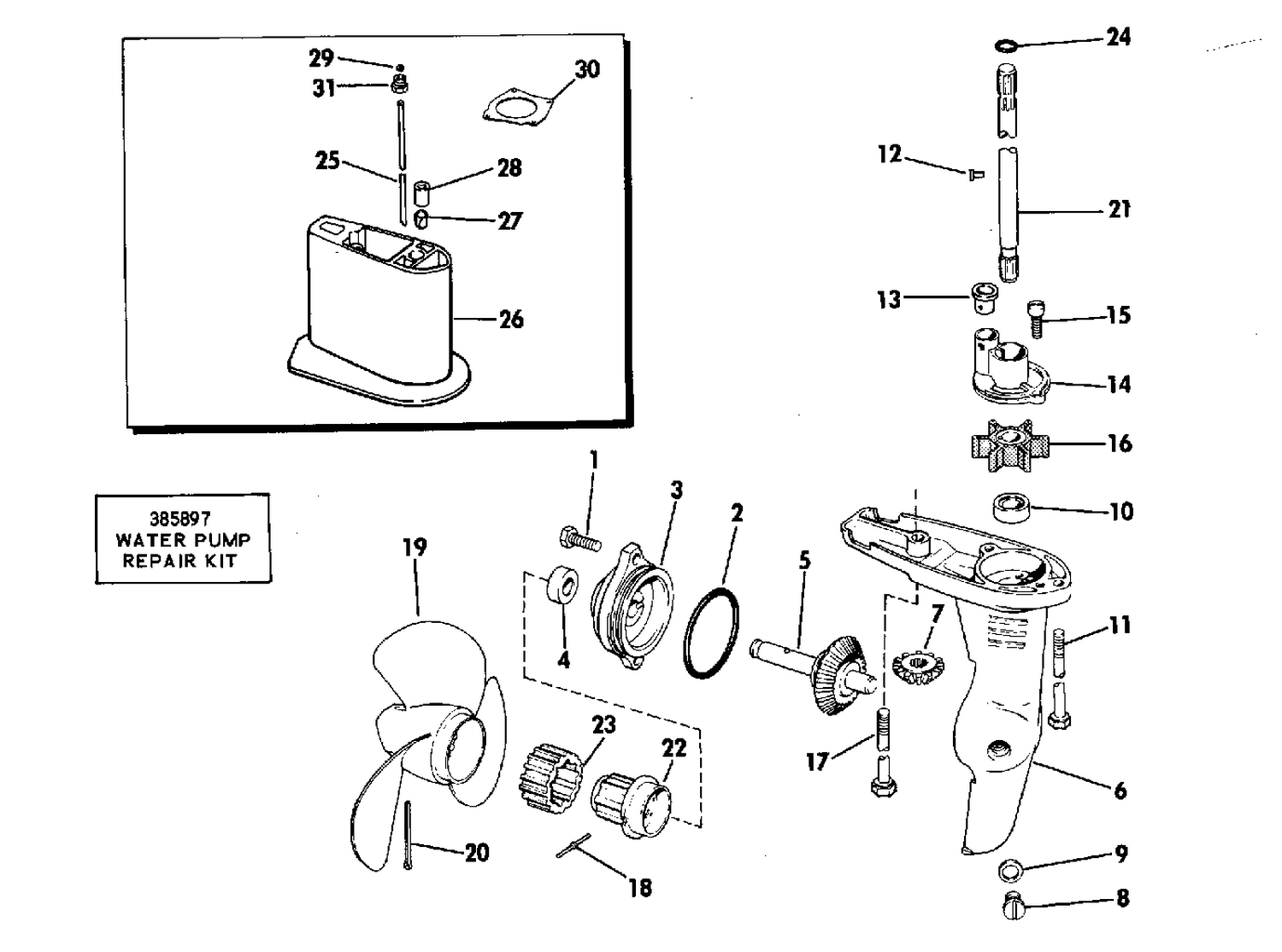

| Ref | Part Number | Description |
|---|
| 1 |
0300646 |
VIS, ancrage |
| 3 |
0383341 |
EARCASE HEAD AND BUSHING ASSEMBLY |
| 5 |
0385236 |
PROP SHAFT AND GEAR ASSY |
| 6 |
0389066 |
GEARCASE & BUSH. ASSY. This part replaces 0385898. |
| 7 |
0313608 |
PINION, Driveshaft |
| 11 |
0315221 |
SCREW, G case mtg, long |
| 13 |
0317372 |
GROMMET, Wate tube, lower |
| 14 |
0313678 |
COVER, Water pump |
| 16 |
0382221 |
IMPELLER ASSEMBLY,Water pump |
| 17 |
0313332 |
SCERW, Adj. bracket |
| 18 |
0333513 |
DRIVE IN, Propeller This part replaces 0316558. |
| 19 |
0318487 |
PROPELLER |
| 20 |
0313693 |
COTTER PIN |
| 21 |
0318482 |
DRIVESHAFT, Std |
| 21 |
0318483 |
DRIVESHAFT, Long |
| 22 |
0391598 |
CLUTCH HUB, Propeller This part replaces 0317466. |
| 23 |
0310331 |
RING, Clutch |
| 25 |
0318481 |
WATER TUBE, Long |
| 29 |
0306344 |
BALL SLEEVE |
| 30 |
0315338 |
GASKET, Exh housing |
| 111 |
0303398 |
VIS, support This part replaces 0302030. |
| 0385550 |
0385550 |
GEARCASE ASSY., Complete |
| 0385861 |
0385861 |
EXTENSION KIT - 5" 5" EXTENSION KIT |
