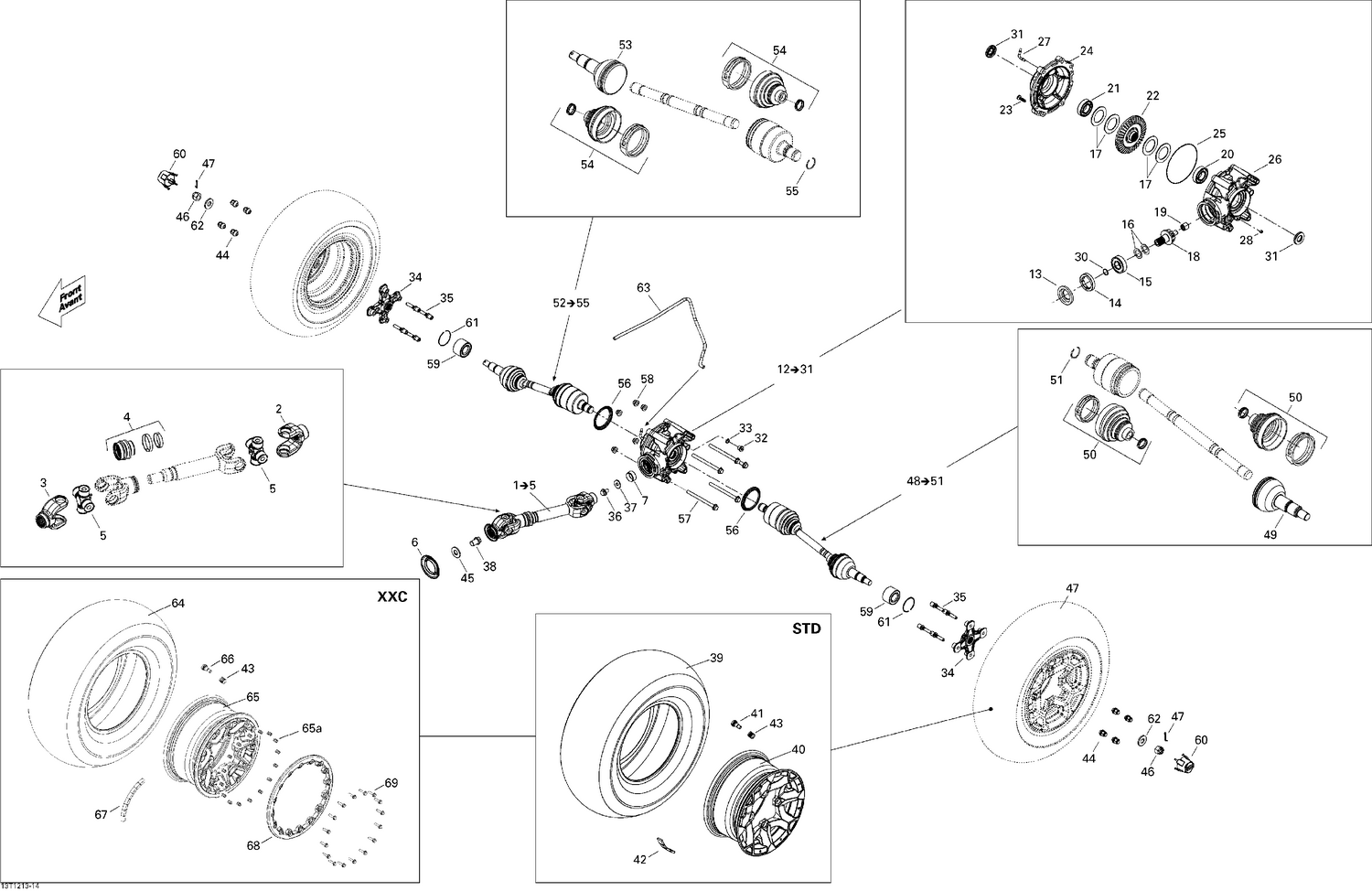

| Ref | Part Number | Description |
|---|
| 2 |
715900101 |
Fixe Yoke This part replaces 705501372. |
| 3 |
715900129 |
Fixed Joint This part replaces 705501373. |
| 4 |
703500255 |
Rubber Boot Kit |
| 5 |
715900326 |
Universal Joint This part replaces 703000022. |
| 6 |
705501123 |
Protector |
| 7 |
705400036 |
Wear Ring |
| 13 |
705401481 |
Oil Seal This part replaces 705400027. |
| 14 |
705502059 |
Nut This part replaces 705500987. |
| 15 |
705500260 |
Ball Bearing |
| 16 |
705500075 |
Pinion Gear Shim .022" |
| 16 |
705501162 |
Pinion Gear Shim This part replaces 705501163. |
| 16 |
705502061 |
Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 17 |
705502060 |
Differential Shim 0.02 mm This part replaces 703500548. |
| 18 |
703500873 |
Gear-10/36 Too Kit This part replaces 705501570. |
| 19 |
705501408 |
Needle Bearing |
| 20 |
705502737 |
Ball Bearing This part replaces 705500749. |
| 21 |
705502738 |
Ball Bearing This part replaces 705501389. |
| 22 |
703500873 |
Gear-10/36 Too Kit This part replaces 705501403. |
| 23 |
705401601 |
Screw This part replaces 705500892. |
| 24 |
705501507 |
REAR DIFFERENTIAL COVER - Call your local BRP dealership |
| 25 |
705500265 |
Seal |
| 26 |
705501395 |
PINION REAR COVER - Call your local BRP dealership |
| 27 |
705500893 |
VENT VALVE - Call your local BRP dealership |
| 28 |
705500894 |
Drain Plug |
| 30 |
705500267 |
O-Ring |
| 31 |
705501996 |
Oil Seal This part replaces 705501196. |
| 32 |
705500504 |
Fill Level Plug This part replaces 250400041. |
| 33 |
705500506 |
Copper Washer |
| 34 |
705501716 |
Wheel Hub Ass'y This part replaces 705501264. |
| 36 |
250000378 |
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
| 37 |
250200102 |
Flat Washer M12 |
| 38 |
250001039 |
Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 43 |
293000110 |
Valve Cap |
| 44 |
250100184 |
Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 45 |
250200102 |
Flat Washer M12 |
| 46 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 47 |
250400036 |
Cotter Pin |
| 49 |
705500980 |
CV JOINT - Call your local BRP dealership |
| 50 |
705500870 |
Boot Kit |
| 51 |
705500845 |
CIRCLIP - Call your local BRP dealership |
| 53 |
705500980 |
CV JOINT - Call your local BRP dealership |
| 54 |
705500870 |
Boot Kit |
| 55 |
705500845 |
CIRCLIP - Call your local BRP dealership |
| 56 |
705501124 |
Wear Ring |
| 57 |
250001041 |
Hex. Flange Screw M10 X 135 This part replaces 250000508. |
| 58 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 59 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 60 |
705400928 |
Wheel Cap |
| 61 |
293370019 |
Circlip |
| 62 |
250200171 |
Conical Spring Washer M18 This part replaces 250200049. |
| 63 |
219704410 |
Polyurethane Hose 10000Mm Long |
