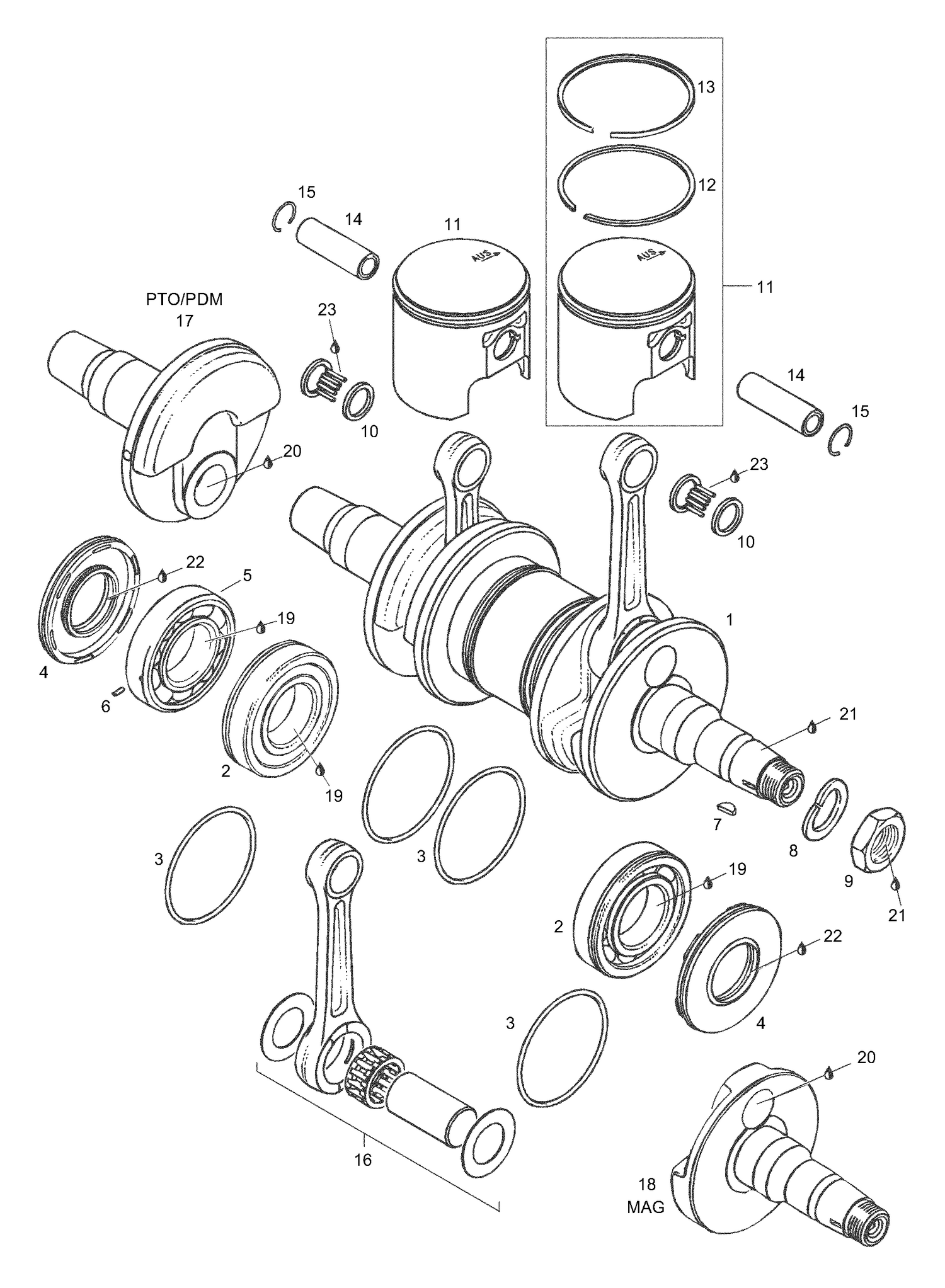

| Ref | Part Number | Description |
|---|
| 2 |
420832584 |
Bearing_Ball This part replaces 420832570. |
| 3 |
293300022 |
O-Ring, 64 mm X 2 mm This part replaces 420250165. |
| 4 |
420831952 |
Oil Seal This part replaces 420831950. |
| 6 |
420929972 |
Drive pin |
| 7 |
420246055 |
Woodruff key |
| 8 |
420945759 |
Lock washer |
| 9 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 10 |
420832320 |
Cagel. needle bearin |
| 12 |
420915850 |
RECTANGULAR RING 72 MM, STD - Call your local BRP dealership |
| 12 |
420915851 |
RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership |
| 12 |
420915852 |
RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership |
| 13 |
420815200 |
SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership |
| 13 |
420815201 |
SEMI-TRAPEZ RING 72.25 MM, 1ST - Call your local BRP dealership |
| 13 |
420815202 |
SEMI-TRAPEZ RING 72.5 MM, 2ND - Call your local BRP dealership |
| 14 |
420916186 |
GUDGEON PIN - Call your local BRP dealership |
| 15 |
420945735 |
Circlip |
| 16 |
420994564 |
Crankshaft repair kit |
| 17 |
420818244 |
CRANKSHAFT HALF PTO - Call your local BRP dealership |
| 18 |
420819020 |
CRANKSHAFT HALF MAG - Call your local BRP dealership |
| 19 |
420297434 |
Loctite, 50ml |
| 21 |
293800060 |
Loctite 243, 10 ml This part replaces 420899785. |
