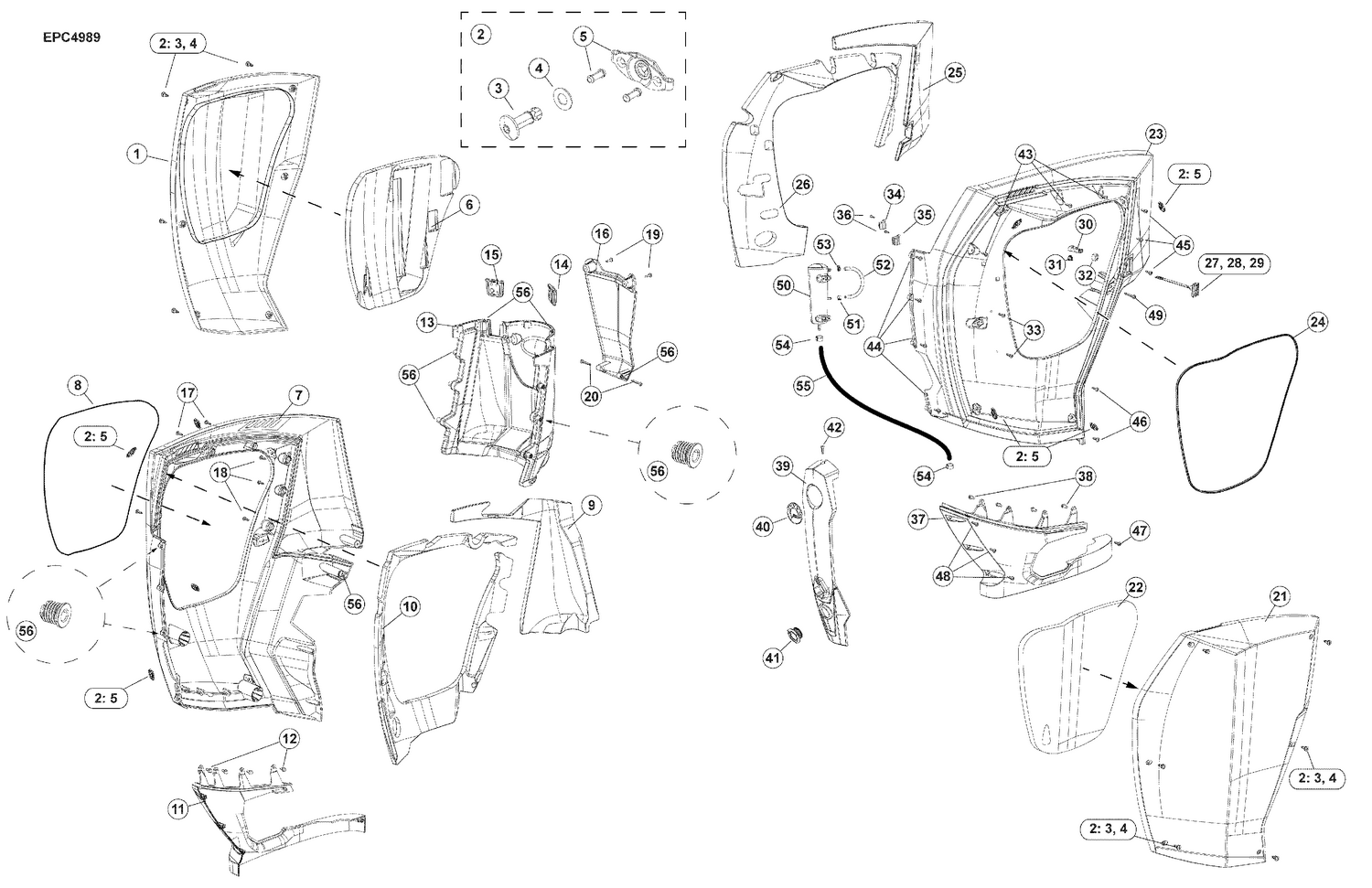

01-2.2_ENGINE COVERS (PORT & STARBOARD)
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 13 | 5009172 | FRAME, Front |
| 14 | 0356489 | GROMMET, Starboard |
| 15 | 0356490 | GROMMET, Port |
| 39 | 5010998 | COVER ASSEMBLY, Rear frame This part replaces 5008556. |
| 41 | 0356286 | RETAINER |
| 50 | 5009873 | OIL RESERVOIR, Gearcase |
| 51 | 0348838 | CLAMP, 10.5mm |
| 53 | 0339276 | SERRE-FILS |
| 55 | 0357226 | HOSE, Gearcase to oil reservoir |
