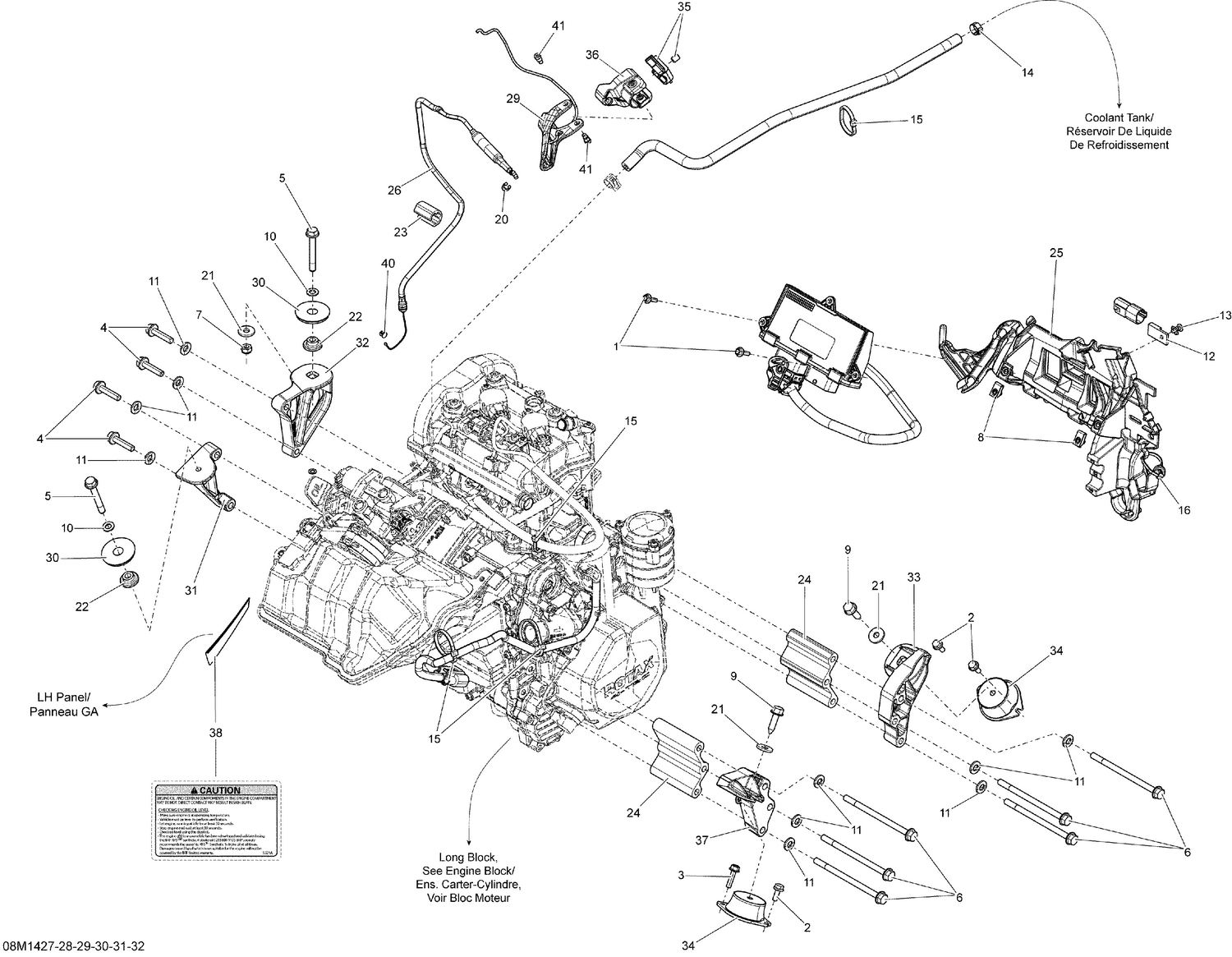

01- Engine And Engine Support _08M1427
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 3 | 207562534 | Hex. Flange Screw M6 X 25, Scotch Grip |
| 5 | 207586044 | Hex. Flange Screw M8 X 60, Scotch Grip |
| 6 | 230582544 | Hex. Flange Screw M8 X 125, Scotch Grip |
| 7 | 232581414 | Hex. Elastic Stop Nut M8 |
| 8 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 9 | 250000257 | Cone Screw, M8 X 30 |
| 10 | 250200008 | Flat Washer With Teflon 8 mm |
| 11 | 250200146 | Conical Spring Washer M8 |
| 12 | 270000141 | Clip |
| 13 | 293150027 | Avdel Rivet |
| 14 | 293650046 | Oetiker Clamp |
| 15 | 414115200 | Tie-Rap 180 mm |
| 16 | 293750008 | Tie Wrap 368 mm |
| 20 | 414274500 | Circlip |
| 21 | 503183200 | Yellow, Washer |
| 22 | 512060285 | Spacer |
| 23 | 512060313 | Protector |
| 24 | 512060505 | Shim |
| 25 | 512060509 | MODULE SUPPORT - Call your local BRP dealership |
| 26 | 512060606 | THROTTLE CABLE - Call your local BRP dealership |
| 29 | 512061250 | Handle Ass'y This part replaces 512060618. |
| 30 | 512061203 | Stopper This part replaces 512060647. |
| 31 | 512061139 | Rear Support PTO This part replaces 512060660. |
| 32 | 512061140 | Front Support PTO This part replaces 512060661. |
| 33 | 512060663 | Front Support, MAG |
| 34 | 512060729 | Rubber Mount |
| 35 | 512060859 | Upper Housing |
| 36 | 512060860 | Lower Housing |
| 37 | 512061142 | Rear Support MAG This part replaces 512060894. |
| 38 | 516005521 | Caution Decal, Oil Level |
| 40 | 707000434 | Cable Guide |
