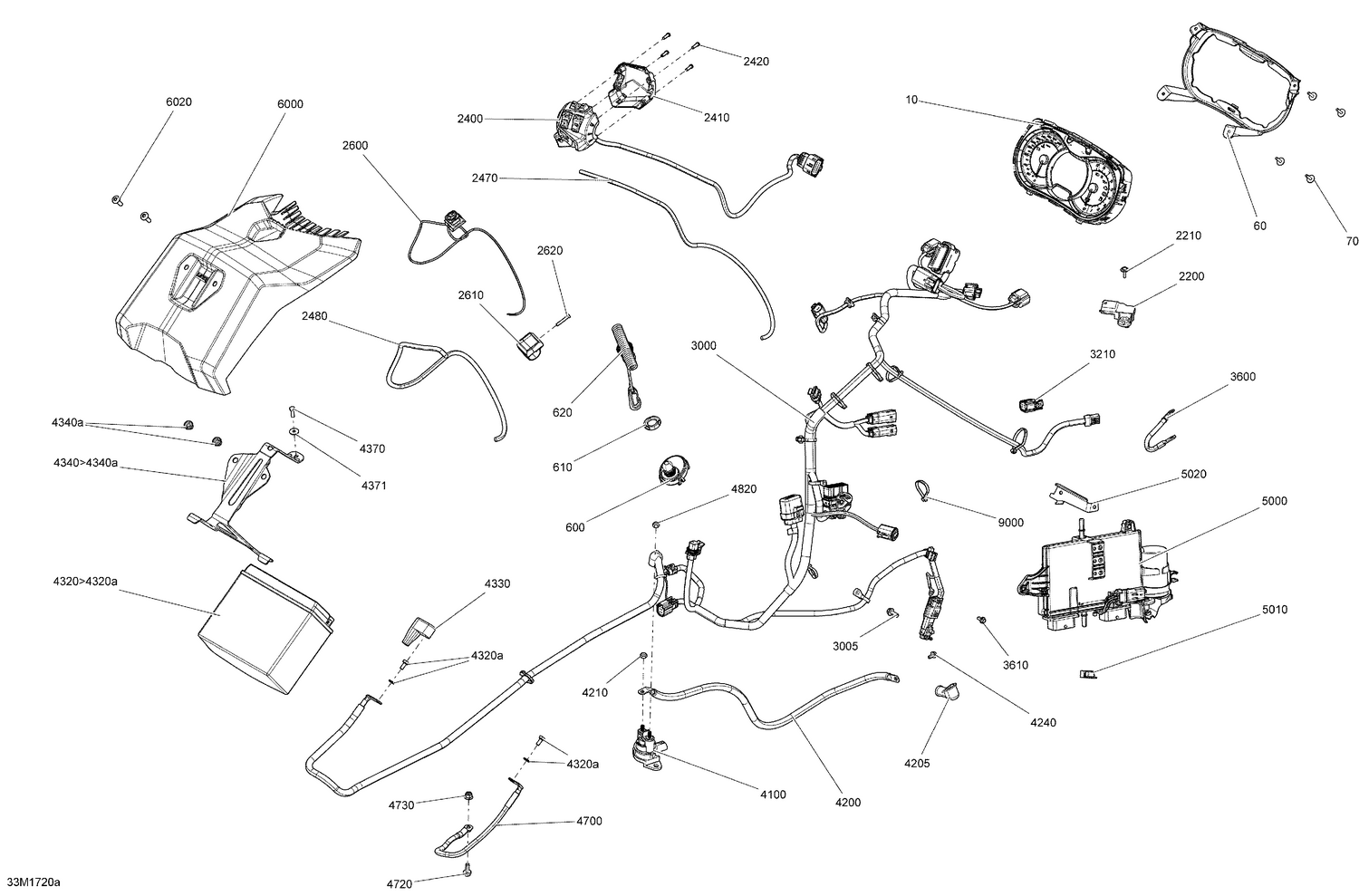

10- Electrical System - With Electric Start
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 10a | Not | Available As Spare Part - Lens |
| 50 | 250000577 | Torx Truss Screw K40 X 12 |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000725 | Screw M4 X 16 |
| 2400 | 515178857 | Ignition Switch This part replaces 515177865. |
| 2401 | 515177952 | Clamp |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515177931 | Emergency Stop Switch |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3000 | 515178206 | Main Harness |
| 3005 | 210261650 | Hex. Flange Screw M6 X 16 |
| 3210 | 515178177 | BLoc Femelle 4 Circuits |
| 3250 | 515178462 | Switch Rocker Hand Warmer This part replaces 515177917. |
| 3255 | 515177932 | Rocker Switch |
| 3600 | 515178248 | Ground Wire |
| 3610 | 207551044 | Hex. Flange Screw M5 X 10 |
| 4100 | 278003012 | Starter Relay |
| 4200 | 515178553 | Positive Wire This part replaces 515178110. |
| 4205 | 710000495 | Protector Cap |
| 4210 | 232561414 | Elastic Stop Nut M6 |
| 4240 | 207551044 | Hex. Flange Screw M5 X 10 |
| 4320a | 250000282 | Battery Bolt Kit |
| 4330 | 710001817 | Protector Cap |
| 4340a | 293450275 | Insert |
| 4370 | 207151644 | Hex. Screw M5 X 16 |
| 4371 | 391301600 | Washer |
| 4700 | 515178155 | Ground Wire |
| 4720 | 207661644 | Hex. Flange Screw M6 X 16 |
| 4730 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 4820 | 232561414 | Elastic Stop Nut M6 |
| 5000a | 515177272 | Capacitor |
| 5010 | 515178231 | Rubber Stopper |
| 5020 | 515178159 | Module Support |
| 6000 | 511001053 | Battery Cover |
| 6020 | 250000722 | Torx Screw M6 X 20 |
| 9000 | 293750002 | Tie Wrap 142 mm |
| 9000 | 293750008 | Tie Wrap 368 mm |
| 9000 | 414115200 | Tie-Rap 180 mm |
