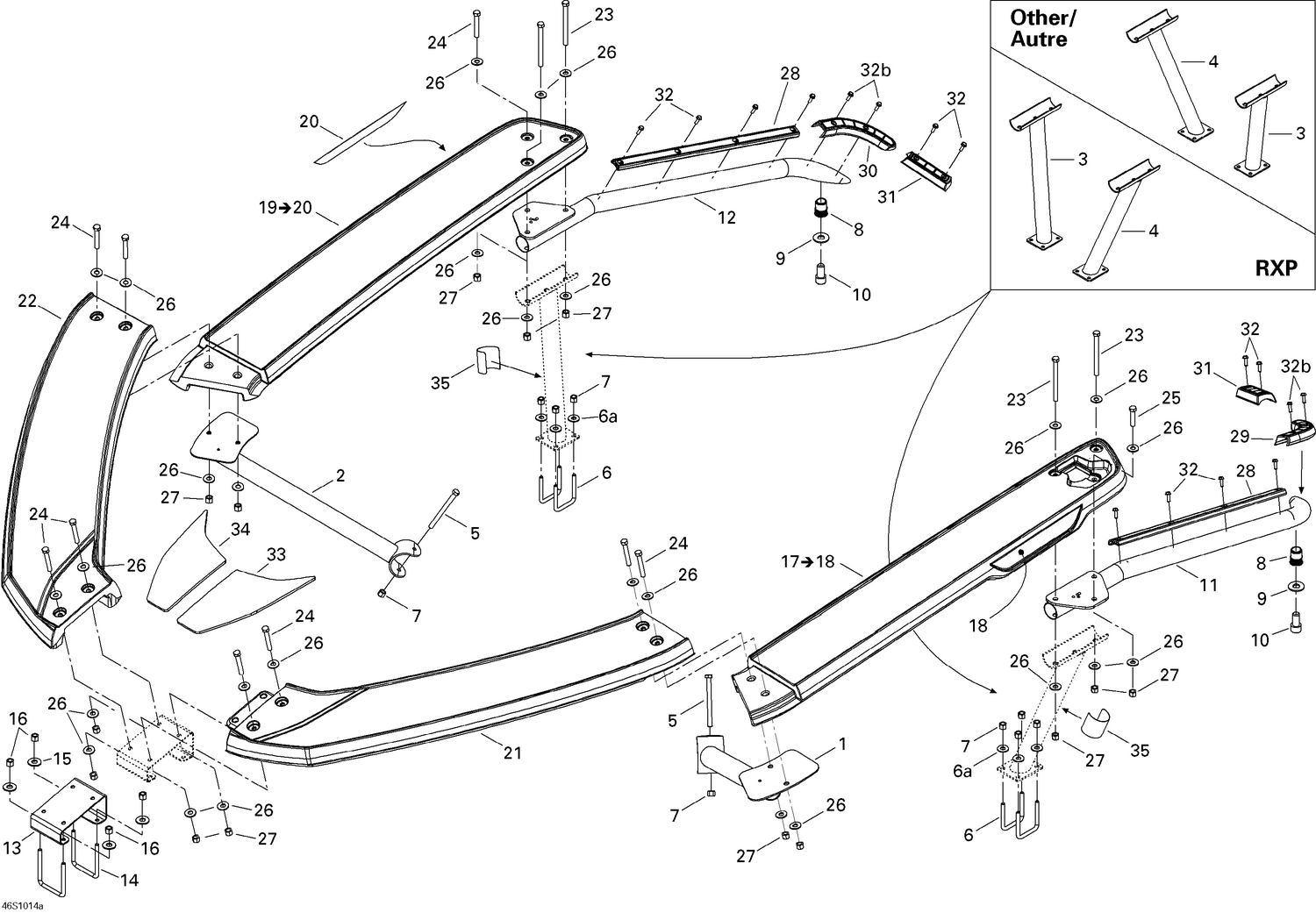

| Ref | Part Number | Description |
|---|
| 5 |
269800317 |
HEX. BOLT 3/8''-16 X 4 1/2'' - Call your local BRP dealership This part replaces 269800105. |
| 6 |
269800313 |
U-BOLT 3/8''-16 X 2-7/16'' X 3-1/4'' - Call your local BRP dealership This part replaces 269800140. |
| 6a |
269800300 |
FLAT WASHER - Call your local BRP dealership This part replaces 269800151. |
| 7 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 8 |
269800165 |
THREAD INSERT - Call your local BRP dealership |
| 9 |
269800300 |
FLAT WASHER - Call your local BRP dealership This part replaces 269800151. |
| 10 |
269800164 |
Socket Head Screw |
| 14 |
269800138 |
U BOLT - Call your local BRP dealership |
| 15 |
269800300 |
FLAT WASHER - Call your local BRP dealership This part replaces 269800151. |
| 16 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 18 |
219903227 |
DECAL - Call your local BRP dealership |
| 20 |
219903227 |
DECAL - Call your local BRP dealership |
| 21 |
291002829 |
LH FRONT WALKPAD - Call your local BRP dealership |
| 22 |
291002828 |
RH Front Walkpad |
| 23 |
269800152 |
Hexagonal Head Bolt 3/8 X 4 1/2 |
| 24 |
269800153 |
Hexagonal Head Bolt 3/8 X 2 1/2 |
| 25 |
269800107 |
Hexagonal Head Bolt 3/8 X 1 3/4 |
| 26 |
269800154 |
Washer 3/8 |
| 27 |
269800155 |
Hex. Lock Nut 3/8 |
| 28 |
262000037 |
Protector |
| 29 |
262000024 |
LH ELBOW PROTECTOR - Call your local BRP dealership |
| 30 |
262000057 |
RH Elbow Protector |
| 31 |
262000059 |
Protector |
| 32 |
269800136 |
SCREW - Call your local BRP dealership |
| 32b |
269800200 |
Screw |
| 33 |
269800110 |
Carpet |
| 34 |
269800111 |
CARPET - Call your local BRP dealership |
