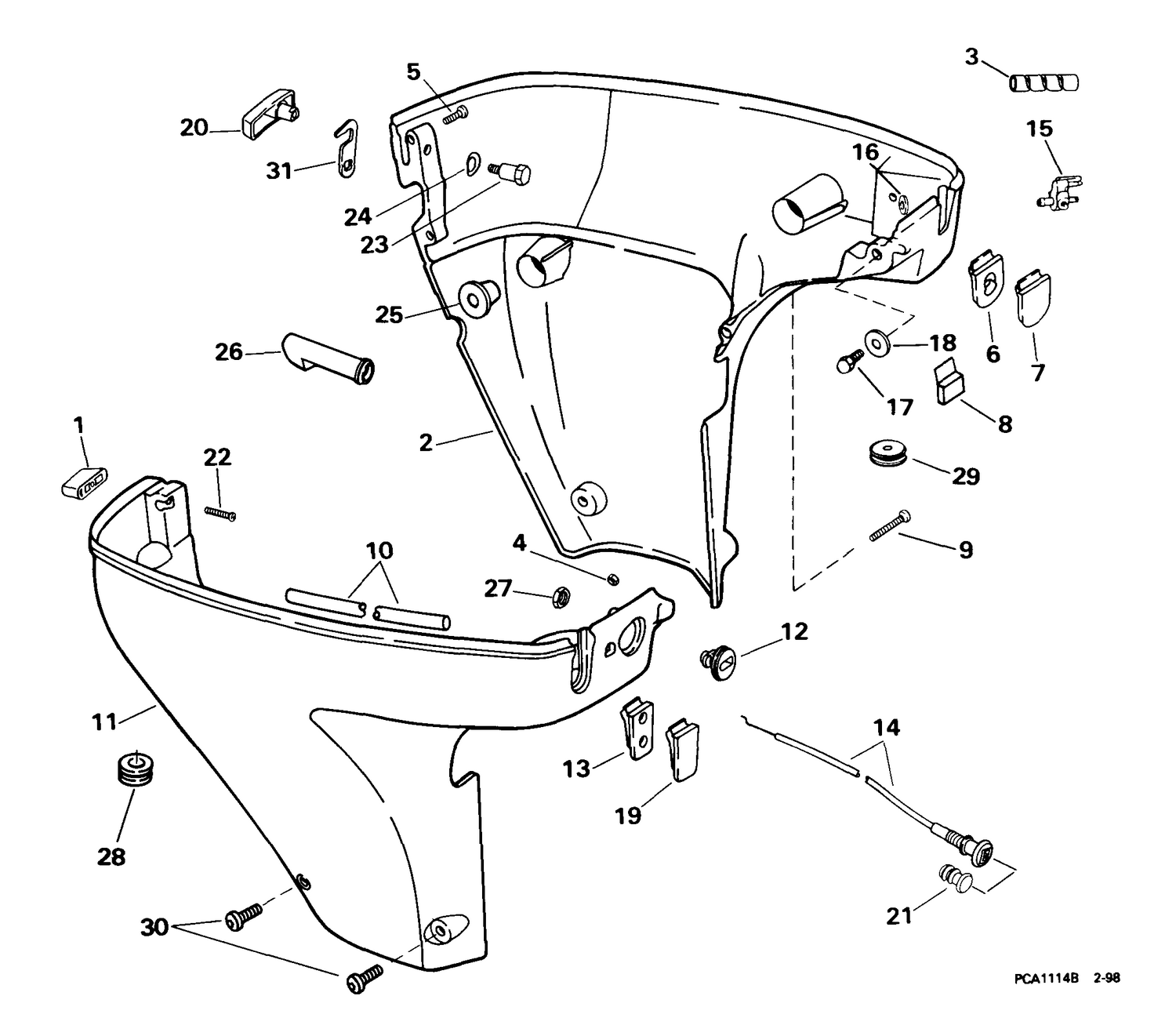

| Ref | Part Number | Description |
|---|
| 1 |
0337413 |
BUMPER, Cover |
| 2 |
0438924 |
ENGINE COVER, Lower, port |
| 4 |
0337415 |
NUT |
| 5 |
0339019 |
SCREW, Front, lower cover, M6x40 |
| 6 |
0337410 |
GROMMET, Battery cables |
| 7 |
0337411 |
GROMMET, Battery cable plug |
| 8 |
0341740 |
GROMMET, Plug, throttle cable |
| 9 |
0337417 |
SCREW, Cover, lower, front, M6x90 |
| 10 |
0332414 |
SEAL |
| 11 |
0337406 |
ENGINE COVER, Lower, stbd. |
| 14 |
0435286 |
CHOKE CABLE ASSY. |
| 19 |
0337409 |
GROMMET, Plug |
| 20 |
0437002 |
HANDLE ASSY. |
| 23 |
0337465 |
SCREW, Handle |
| 25 |
0332413 |
MOUNT |
| 26 |
0338911 |
GROMMET, Exhaust relief |
| 28 |
0342186 |
GROMMET, Muffler drain |
