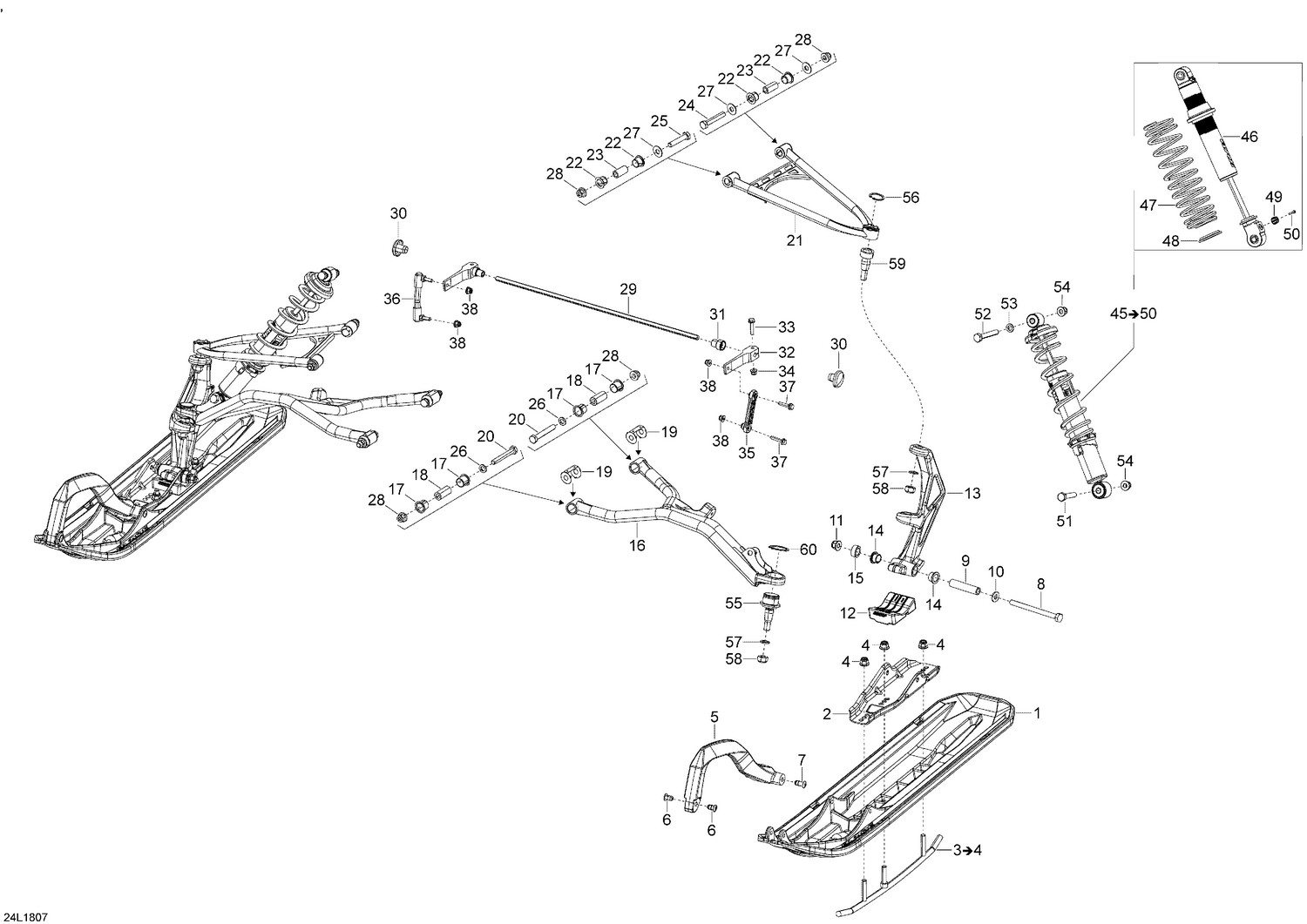

07- Front Suspension And Ski Commander - 800R E-TEC - Package 800
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505073314 | Ski Blade White |
| 1 | 505074262 | Ski Blade Xc Black |
| 2 | 505073240 | Ski Bridge Weld |
| 4 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 5 | 505072976 | Black, Handle |
| 5 | 505073651 | Orange, Handle |
| 6 | 505071812 | Retainer 17mm long |
| 7 | 505072133 | Retainer 23mm Long |
| 8 | 231080044 | Screw Socket M10 X 100 |
| 9 | 506133300 | Spacer |
| 10 | 732900049 | Washer |
| 11 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 12 | 505073411 | Rubber Damper |
| 13 | 505073579 | Black LH Ski Leg |
| 13 | 505073580 | Black RH Ski Leg |
| 14 | 505072690 | Leg Bushing |
| 15 | 505072807 | Spacer |
| 16 | 505073924 | Arm-lower Lh |
| 16 | 505073925 | Arm-lower Rh |
| 17 | 505073330 | Bushing |
| 18 | 505072209 | Bushing |
| 19 | 505072634 | Wear Plate |
| 20 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 21 | 505073985 | Arm-upper Lh W Sway Bar |
| 21 | 505073986 | Arm-upper Rh W Sway Bar |
| 22 | 505073329 | Bushing |
| 23 | 505072143 | Bushing |
| 24 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 25 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 26 | 503189564 | Washer |
| 27 | 505072392 | Washer |
| 28 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 29 | 505073609 | Stabilisator |
| 30 | 572091300 | Cap |
| 31 | 505072445 | Bushing |
| 32 | 505074294 | Stabilisator Lever |
| 33 | 207663046 | Hex. Flange Screw M6 X 30 |
| 34 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 35 | 505074123 | Double Ball Joint Link |
| 36 | 505073962 | Anti Roll Bar Link, Rh |
| 37 | 207663046 | Hex. Flange Screw M6 X 30 |
| 38 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 46 | 505073456 | Front Shock |
| 47 | 505072846 | Deep Black Spring |
| 48 | 503194270 | Spring Stopper This part replaces 503192608. |
| 49 | 505072753 | Adjustment Knob |
| 50 | 250000644 | Allen Screw M3 X 0.5 X 10 This part replaces 205031060. |
| 51 | 207005544 | Hex. Screw M10 X 55 |
| 52 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 53 | 503189564 | Washer |
| 54 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 55 | 505073636 | Ball Joint |
| 56 | 293370070 | Circlip |
| 57 | 234021410 | Flat Washer 12 mm |
| 58 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 59 | 505072913 | Upper Ball Joint |
