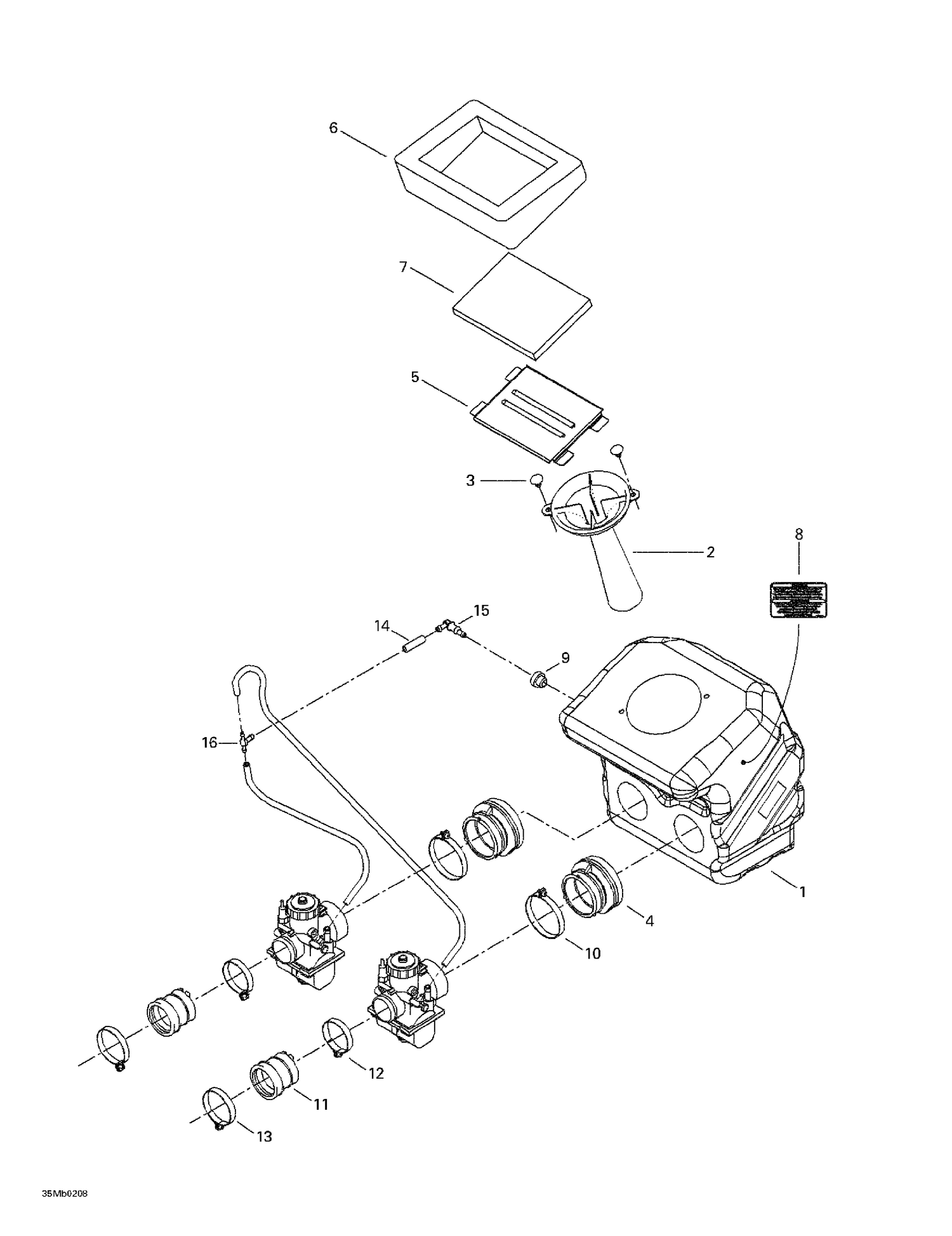

02- Air Intake System
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 572054803 | Inlet Tube |
| 3 | 414644300 | Black, Dart |
| 4 | 508000203 | Adaptor 34 mm |
| 5 | 508000004 | INTAKE GRILL - Call your local BRP dealership |
| 6 | 508000245 | Outer Foam |
| 7 | 508000154 | Air Filter |
| 8 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191. |
| 9 | 513032908 | Grommet |
| 10 | 508000217 | Gear Clamp |
| 12 | 512059395 | Clamp |
| 13 | 512059834 | Gemi Clamp This part replaces 512059403. |
| 14 | 219704410 | Polyurethane Hose 10000Mm Long |
| 15 | 414580600 | Elbow Male Connector |
