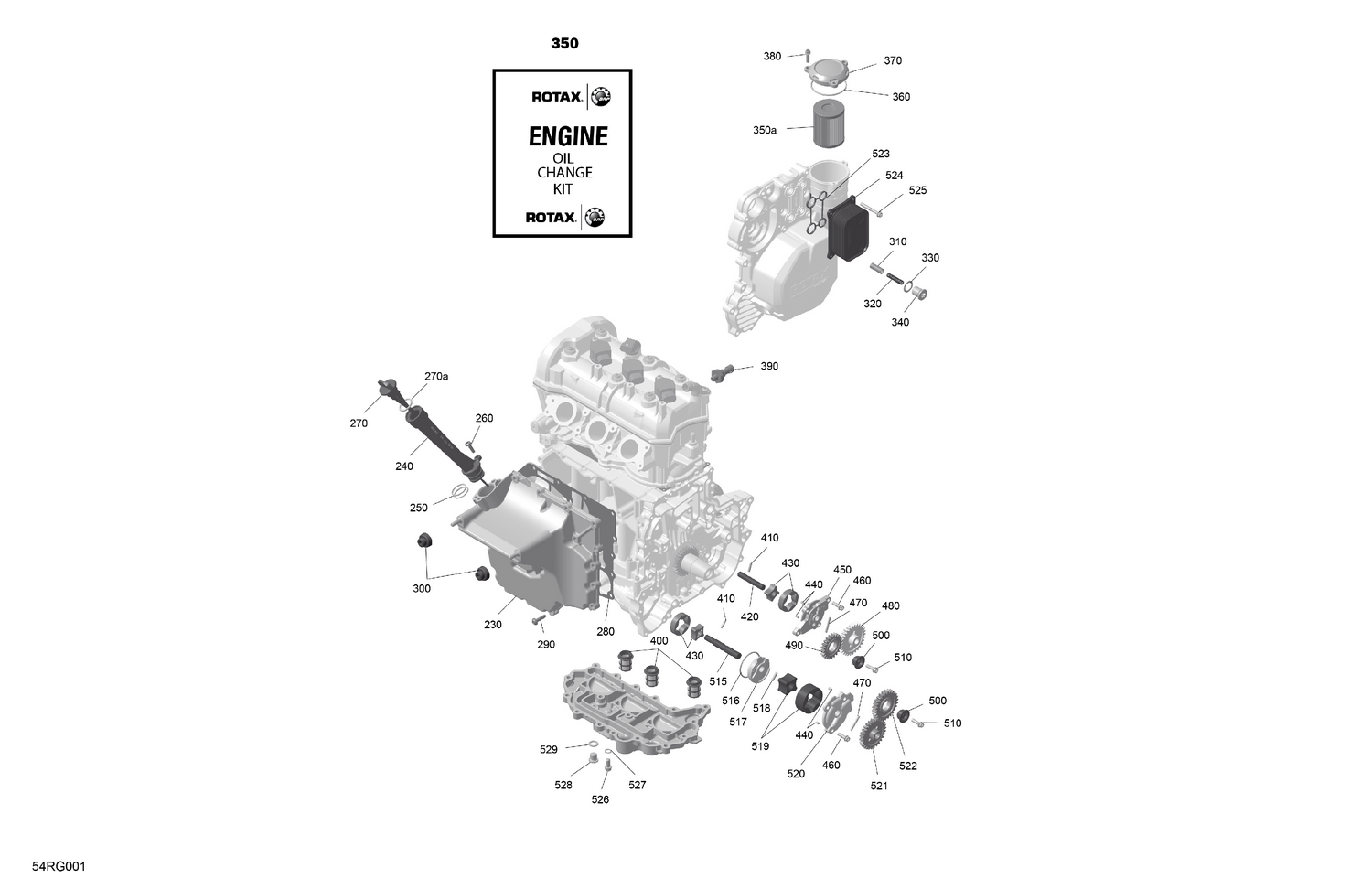

| Ref | Part Number | Description |
|---|
| 230 |
420656707 |
Oil Sump Cover |
| 240 |
420656901 |
Oil Filler Tube |
| 250 |
420430440 |
O-Ring DIN 3771-25X3-N, FPM 75 |
| 260 |
420441386 |
Flanged Torx Screw M6 X 20 |
| 270a |
420631642 |
O-Ring |
| 280 |
420431848 |
Gasket |
| 290 |
420841549 |
Flanged Torx Screw M6 X 25 |
| 300 |
420860150 |
Rubber Grommet |
| 310 |
420256591 |
Pression Regulating Piston |
| 320 |
420239445 |
Spring DM6,95 D1,15 L46 |
| 330 |
420430624 |
Gasket Ring |
| 340 |
420441372 |
Plug Screw M16 x 1,5 |
| 350 |
9779254 |
Ski-Doo Oil Change Kit 0W40 900 ACE |
| 350 |
9779403 |
SKI-DOO OIL CHANGE KIT 0W40 900ACE EU |
| 350a |
420956124 |
Oil Filter |
| 360 |
420230923 |
O-Ring |
| 370 |
420612135 |
Oil Filter Cover |
| 380 |
420440207 |
Flanged Torx Screw M6X20-SW8/T30 |
| 390 |
420256915 |
Oil Pressure Switch M10 x 1 |
| 400 |
420656680 |
Oil Sieve |
| 410 |
420232731 |
Needle Pin |
| 420 |
420820120 |
Oil Pump Shaft |
| 430 |
420256348 |
Oil Pump Rotor |
| 440 |
420929075 |
Needle Pin ISO 8734-4X8-A-ST |
| 450 |
420911080 |
Oil Pump Cover |
| 460 |
420440207 |
Flanged Torx Screw M6X20-SW8/T30 |
| 470 |
420232431 |
Needle Pin B 4 x 29,8 |
| 480 |
420834882 |
Oil Pump Gear, 29 Teeth |
| 490 |
420835400 |
Gear 22 Teeths |
| 500 |
420947394 |
Graduated Spacer |
| 510 |
420440207 |
Flanged Torx Screw M6X20-SW8/T30 |
| 515 |
420837916 |
Oil Pump Shaft |
| 516 |
420631830 |
O-Ring DIN 3771-46X2,5-N, 72 NBR 872 |
| 517 |
420611950 |
Oil Pump Cover |
| 518 |
420632221 |
Needle Pin |
| 519 |
420256836 |
Oil Pump Rotor |
| 520 |
420611980 |
Oil Pump Cover |
| 521 |
420834887 |
Oil Pump Gear, 28 Teeth |
| 522 |
420835321 |
Intermediate Gear (26 T) |
| 523 |
420431871 |
Gasket |
| 524 |
420656698 |
Oil Water Heat Exchanger |
| 525 |
420440324 |
Flanged Torx Screw M6 X 45 |
| 526 |
420440852 |
Flanged Torx Screw M8 X 16 |
| 527 |
420950141 |
Sealing Ring A 8X13 DIN 7603 |
| 528 |
420241701 |
Plug Screw M12 x 1,5 |
