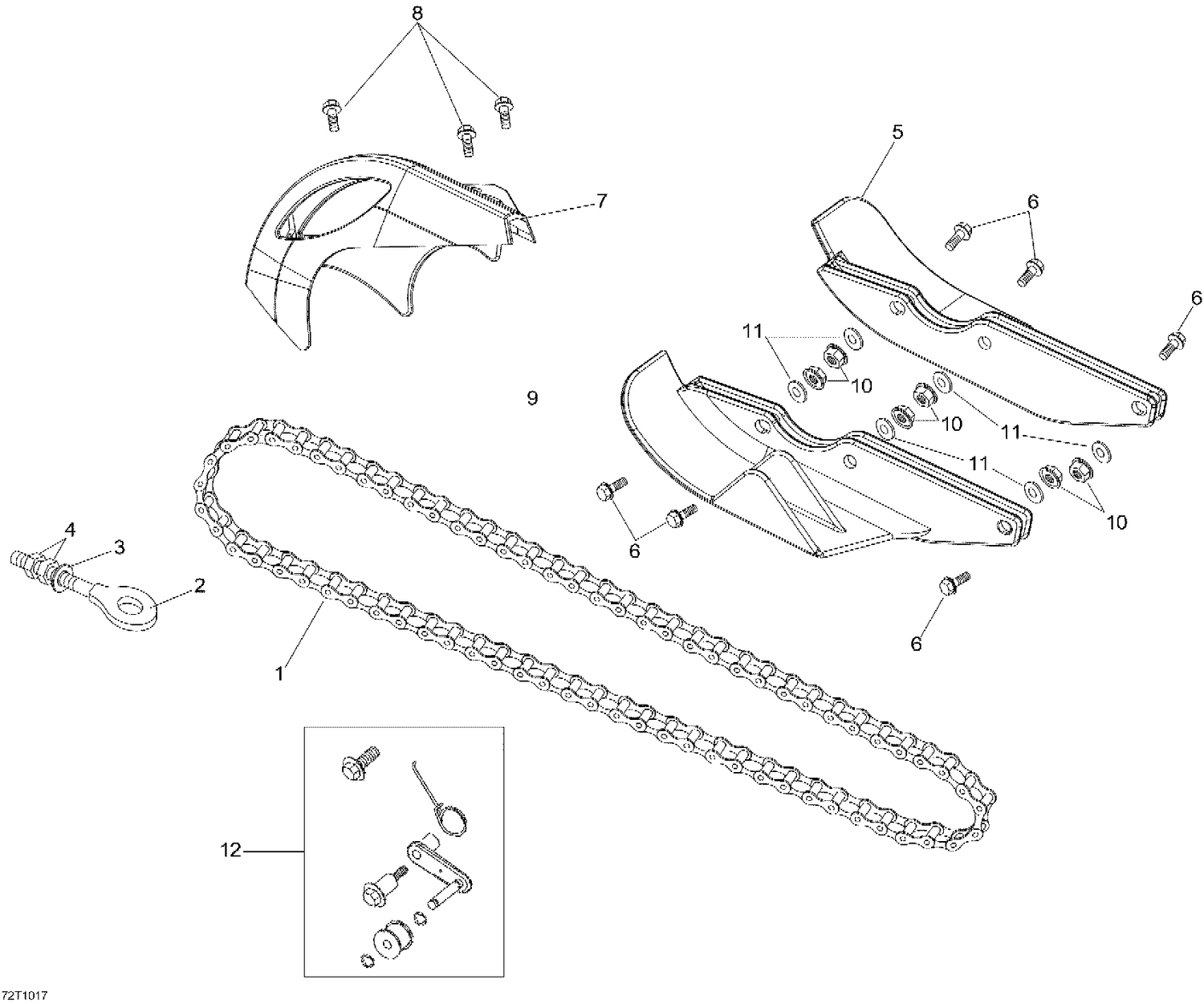

08- Chain
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V14428DGF01HLL | Chain This part replaces V14428DGF01H. |
| 2 | V50205DGF010LL | Chain Adjuster This part replaces V50205DGF010. |
| 3 | V941010816015LL | Washer |
| 4 | V940010800001LL | Hexagonal Nut M8 |
| 5 | V80118DGF00H | LH Skid |
| 6 | 207682534 | Hex. Flange Screw M8 X 25 This part replaces A9600008025. |
| 7 | V83750DGF020LL | Chain Cover This part replaces V83750DGF020. |
| 8 | V930000601201LL | Round Head Screw This part replaces V930000601201. |
| 9 | V80119DGF01H | RH Skid This part replaces V80119DGF00H. |
| 10 | 232581414 | Hex. Elastic Stop Nut M8 |
| 11 | V941010816015LL | Washer |
