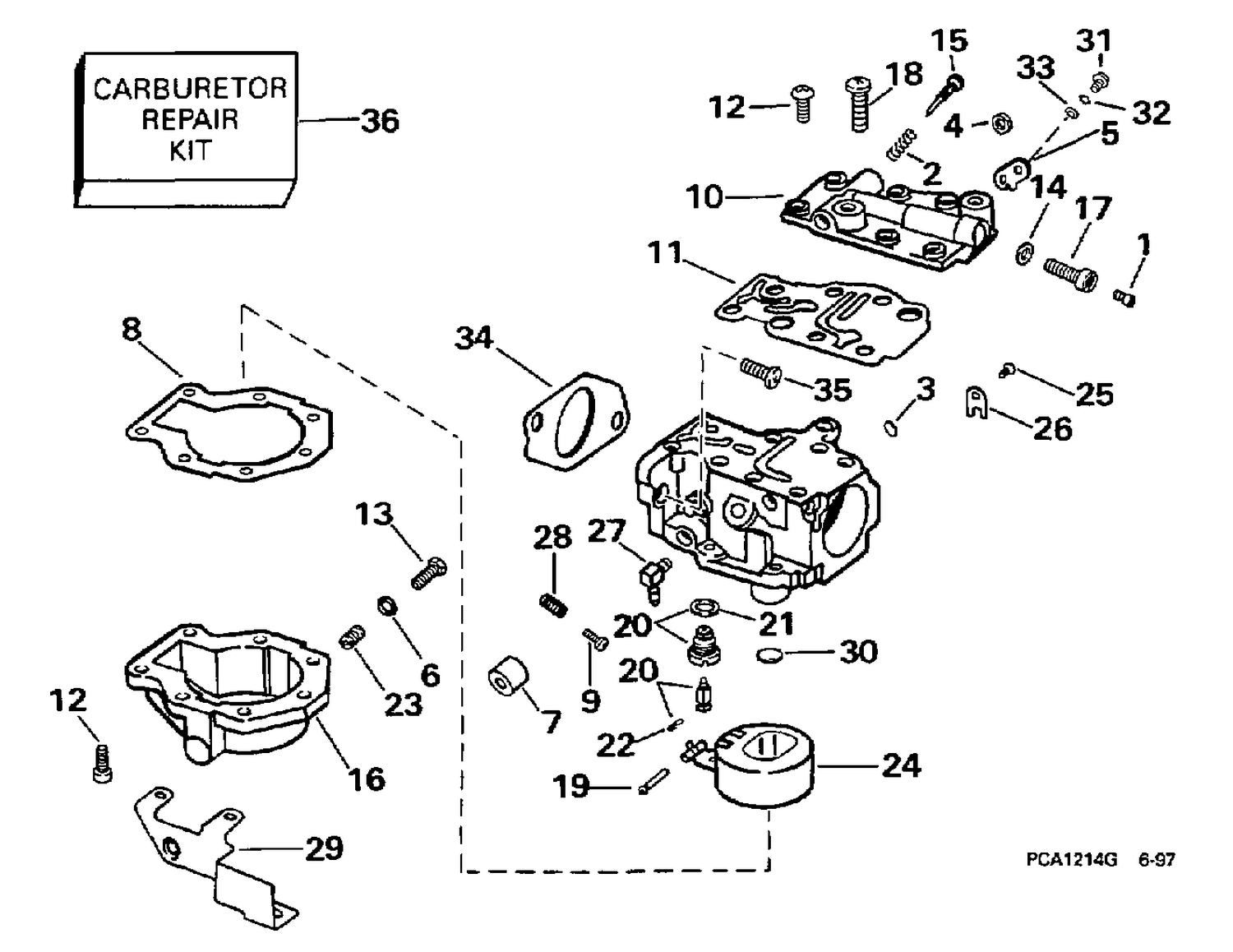

CARBURETOR -- 35 HP

CARBURETOR -- 35 HP

Parts (9)

RefPart NumberDescription
7 0323326 GALET, came
22 0336842 CLIP, SPRING
31 0306014 VIS, ancrage
34 0340461 GASKET
35 0340002 SCREW, Carburetor mounting, M6
0438274 0438274 CARBURETOR ASSY.
0438275 0438275 CARBURETOR ASSY.
0438276 0438276 CARBURETOR ASSY.
0438277 0438277 CARBURETOR ASSY.
